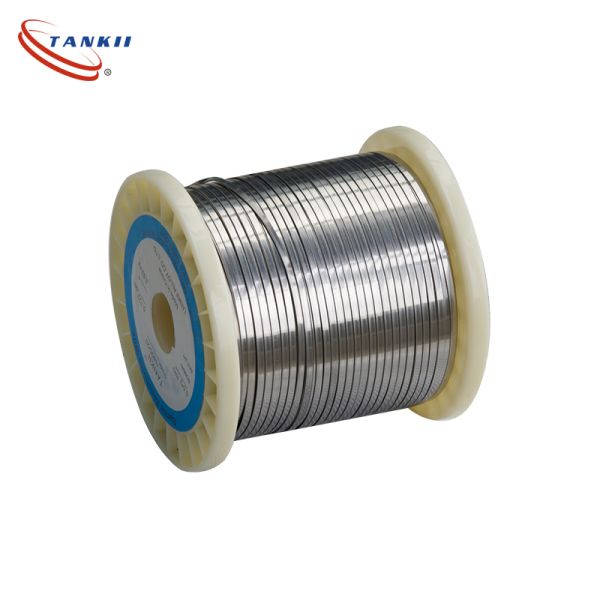

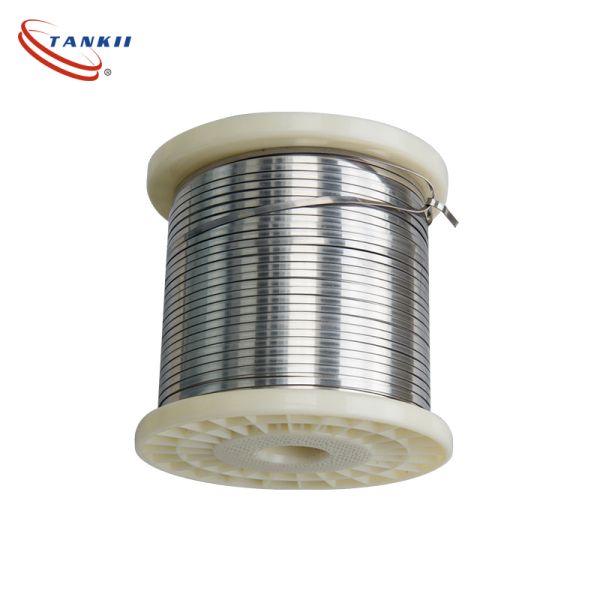

Ni80 Ribbon Flat Wire Thickness: 0.02-8.0mm Width: 0.5-230mm 120V Flat Resistance/Heating Wire
Ni80 Ribbon Flat Wire Thickness: 0.02-8.0mm Width: 0.5-230mm 120V Flat Resistance/Heating Wire
Ni80 Ribbon Flat Wire Thickness: 0.02-8.0mm Width: 0.5-230mm 120V Flat Resistance/Heating Wire
Ni80 Ribbon Flat Wire Thickness: 0.02-8.0mm Width: 0.5-230mm 120V Flat Resistance/Heating Wire
Ni80 Ribbon Flat Wire Thickness: 0.02-8.0mm Width: 0.5-230mm 120V Flat Resistance/Heating Wire
Ni80 Ribbon Flat Wire Thickness: 0.02-8.0mm Width: 0.5-230mm 120V Flat Resistance/Heating Wire
Specifications
Brand Name :
Tankii
Model Number :
Ni80
Certification :
ISO9001
Place of Origin :
China
MOQ :
5KG
Price :
20-25USD/Kg
Payment Terms :
Western Union,T/T,D/P,D/A,L/C
Supply Ability :
5000kg/Month
Delivery Time :
15-25days
Packaging Details :
case
Size :
0.03-8.0mm
Max Operating Temperature :
1200 Degree Celsius
Specification :
0.07-8.0mm
Origin :
Shanghai
Production Capacity :
50000 Meter/Day
HS Code :
7505220000
Description

Ni80 Ribbon Flat Wire Thickness: 0.02-8.0mm Width: 0.5-230mm 120V Flat Resistance/Heating Wire

(Common Name: Ni80Cr20,Nikrothal 8,MWS-650,NiCrA,Tophet A,HAI-NiCr 80,Chromel A,Alloy A,Alloy 650,N8,Resistohm 80, Stablohm 650,Nichorme V,Nikrothal 80.)

Ni80 is a nickel-chromium alloy (NiCr alloy) characterized by high resistivity, good oxidation resistance and very good form stability. It is suitable for use at temperatures up to 1200°C,and hold a superior service life compared to Iron chromium alumium alloys


Products Details

1). Chemical composition(%)

C P S Mn Si Cr Ni Al Fe Other
0.03 0.02 0.15 0.60 0.75-1.60 20.0~23.0 Bal. Max0.5 Max1.0 _


2).Typical Mechanical properties(1.0mm)

Yield strength Tensile Strength Elongation
Mpa Mpa %
420 810

30


3).Typical Physical properties

Density (g/cm3)

 8.4

Electrical resistivity at 20ºC(Ωmm2/m)

 1.09
Conductivity coefficient at 20ºC (WmK) 15


4).Coefficient of Thermal Expansion

Temperyure

Coefficient of Thermal Expansion x10-6/ºC

20 ºC- 1000ºC

20


5).Specific Heat Capacity

Temperature

20ºC

J/gK

0.46

Melting point (ºC)

1400

Max continuous operating temperature in air (ºC)

1200

Magnetic properties

non-magnetic

6).Temperature Factors for Electrical Resistivity

20ºC 100ºC 200ºC 300ºC 400ºC 600ºC
1 1.006 1.012 1.018 1.025 1.018
700ºC 800ºC 900ºC 1000ºC 1100ºC 1300ºC
1.01 1.08 1.01 1.014 1.021 -

2. Style of Supply

Alloys name

Type

Dimension

OhmAlloy109W

Wire

D=0.03mm~8mm

OhmAlloy109R

Ribbon

W=0.4~40

T=0.03~2.9mm

OhmAlloy109S

Strip

W=8~250mm

T=0.1~3.0

OhmAlloy109F

Foil

W=6~120mm

T=0.003~0.1

OhmAlloy109B

Bar

Dia=8~100mm

L=50~1000

Ni80 Ribbon Flat Wire Thickness: 0.02-8.0mm Width: 0.5-230mm 120V Flat Resistance/Heating WireNi80 Ribbon Flat Wire Thickness: 0.02-8.0mm Width: 0.5-230mm 120V Flat Resistance/Heating Wire
