Specifications
Certification :
ISO9001
Thickness :
0.3-2.0 mm
Packaging Details :
Cardboard packaging+wooden box
Price :
24 usd
Payment Terms :
T/T
Brand Name :
TANKIN
Mechanical :
Rm ≥ 345 MPa (ASTM), Rp0.2 ≥ 275, A ≥ 20%
Surface / Temper :
Mill / Polished / Pickled; Annealed
Width :
5 – 1500 mm (customized)
Grade :
Gr.2 / TA2
Place of Origin :
China
MOQ :
10kg
Application :
Chemical Equipment, Heat Exchanger, Anode, Desalination
Supply Ability :
50ton/month
Model Number :
Gr.2 / TA2
Delivery Time :
10-30days
Standard :
ASTM B265 / GB/T 3621
Description

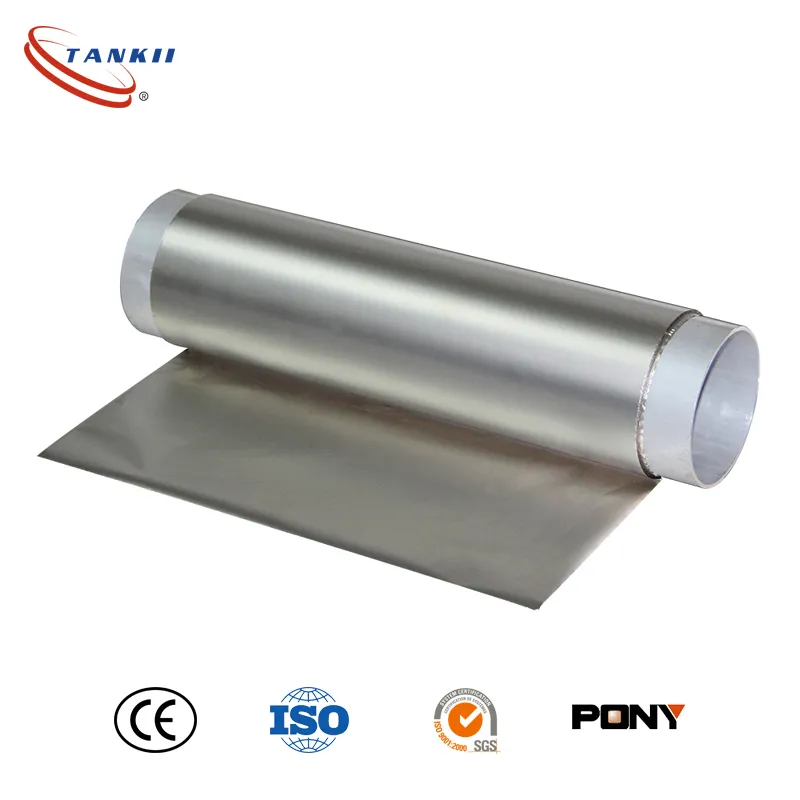

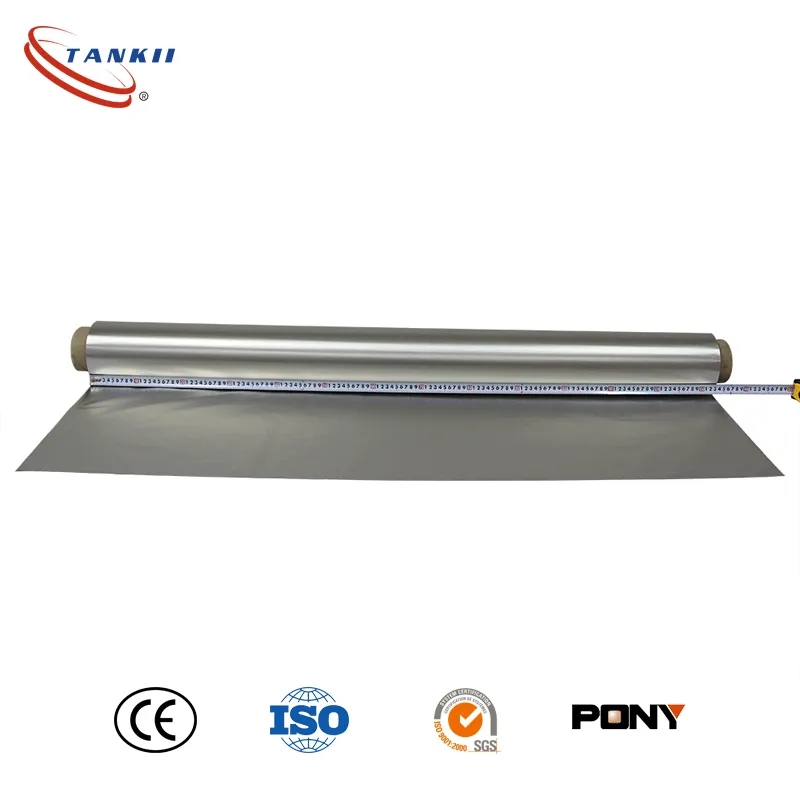

Ultra-thin Gr.2 TA2 Pure Titanium Foil (ASTM B265 / GB/T3620.1)

TA2 Gr.2 pure titanium foil is the best-selling pure titanium grade for global chemical, marine and aerospace markets in 2026. We provide ultrathin titanium foil with thickness 0.001-0.5 mm and adjustable width 1-750 mm, fully compliant with ASTM B265, GB/T3620.1 and JIS H4600 standards. Featuring low density and outstanding corrosion resistance against seawater, chloride and most acidic solutions, Gr.2 titanium foil has become a costeffective alternative to tantalum and niobium for general corrosive working conditions.
TA2 pure titanium has balanced strength and ductility. It can be rolled down to ultra-thin gauge, supports precision slitting, stamping and deep drawing without cracking. Compared with TA1, Gr.2 delivers higher mechanical strength while retaining good forming performance, which fits most industrial corrosive-environment applications. Multi-pass cold rolling and vacuum annealing process guarantee uniform thickness tolerance and clean burrfree surface. Every batch carries strict composition and mechanical inspection to ensure stable batch consistency.


Chemical Composition Reference (wt%, Maximum Value)

ASTM Grade GB Grade JIS Grade N max C max H max Fe max O max Alloying Elements Others
Gr.1 TA1 Class 1 0.03 0.08 0.015 0.20 0.18
Balance Ti
Gr.2 TA2 Class 2 0.03 0.08 0.015 0.30 0.25
Balance Ti
Gr.3 TA3 Class 3 0.05 0.08 0.015 0.30 0.35
Balance Ti
Gr.4 TA4 Class 4 0.05 0.08 0.015 0.50 0.40
Balance Ti
Gr.5 TC4 Class 60 0.05 0.08 0.015 0.40 0.20 Al:5.5-6.75, V:3.5-4.5 Balance Ti
Gr.7 TA9 Class 12 0.03 0.08 0.015 0.30 0.25 Pd:0.12-0.25 Balance Ti
Gr.9 TC2 Class 61 0.03 0.08 0.015 0.25 0.15 Al:2.5-3.5, V:2.0-3.0 Balance Ti
Gr.11 TA9-1 Class 11 0.03 0.08 0.015 0.20 0.18 Pd:0.12-0.25 Balance Ti
Gr.23 TC4 ELI Class 60E 0.03 0.08 0.0125 0.25 0.13 Al:5.5-6.5, V:3.5-4.5 Balance Ti


Mechanical Properties Reference (Room-temperature ≥ Value; High-temperature data for reference)

Grade Rm Tensile Strength(MPa) Rp0.2 Yield Strength(MPa) Elongation A(%) Reduction of Area Z(%) Test Temp(ºC) HighTemp Rm(MPa) StressRupture Strength(MPa)
TA1 240 140 24 30 - - -
TA2 400 275 20 30 - - -
TA3 500 380 18 30 - - -
TA5 685 585 15 40 - - -
TA6 685 585 10 27 350 420 390
TA7 785 680 10 25 350 490 440
TC1 585 460 15 30 350 345 325
TC2 685 560 12 30 350 420 390
TC4 895 825 10 25 400 620 570
TC6 980 840 10 25 400 735 665
TC9 1060 910 9 25 500 785 590
TC10 1030 900 12 25 400 835 785
TC11 1030 900 10 30 500 685 588

Note: All chemical and mechanical data are standard reference values. Actual performance depends on thickness, temper and production batch.

Core Advantages

  1. Excellent corrosion resistance against seawater, chloride and most acidic media
  2. Low density with high specific strength, lightweight structural material
  3. Good ductility for ultra-thin rolling, precision slitting and deep drawing
  4. Vacuum-packed to avoid surface oxidation during delivery
  5. Multiple grades for medical, chemical, aerospace and new-energy scenarios

Application

Chemical anti-corrosion liners, plate heat exchangers, medical accessories, aerospace thermal shielding, laboratory corrosion-resistant samples, electronic precision components.
