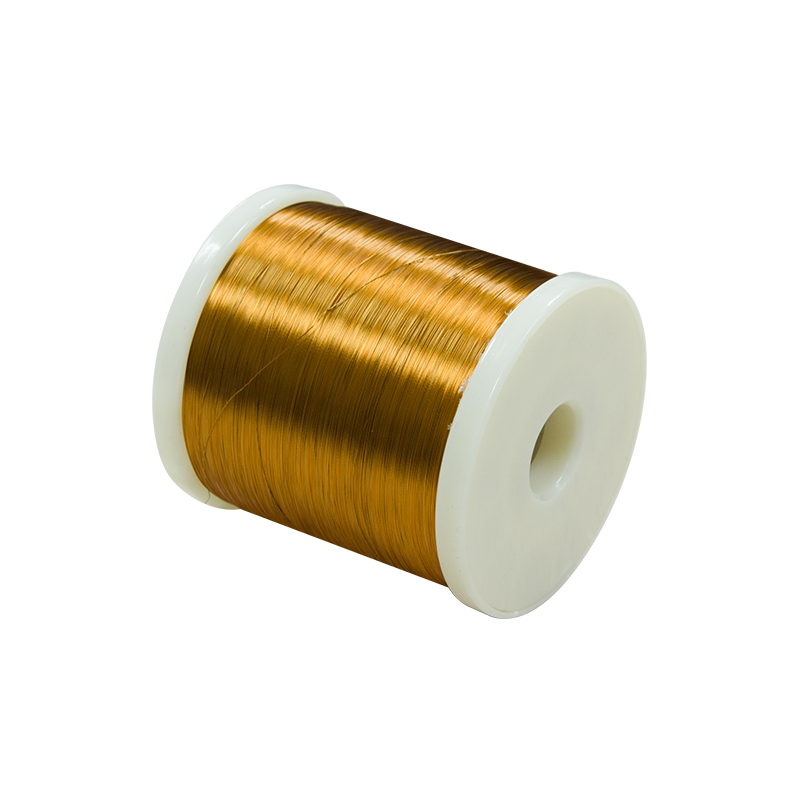

OEM Bright Enamelled AgCu Silver Copper Wire For Audio
OEM Bright Enamelled AgCu Silver Copper Wire For Audio
OEM Bright Enamelled AgCu Silver Copper Wire For Audio
OEM Bright Enamelled AgCu Silver Copper Wire For Audio
OEM Bright Enamelled AgCu Silver Copper Wire For Audio
OEM Bright Enamelled AgCu Silver Copper Wire For Audio
Specifications
Material :
silver copper wire
size :
0.05mm -1.5mm,
Insulation :
Enameled etc.
surface :
Bright
sample order :
accepted
Temper. Class :
155C, 180C 200C 240C etc.
Color :
Red, Black, Bule, green, etc.
OEM :
yes
Brand Name :
TANKII
Model Number :
AgCu wire
Certification :
ISO9001 SGS
Place of Origin :
China
MOQ :
100 KG
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100 Tons per month
Delivery Time :
7-20 days
Packaging Details :
Spool + Carton + Wooned Case
Description

Silver Plated Copper Wire
Product standard: refer to JB / T3135-2011, ASTM B298-99 or according to customer requirements

Tankii Silver-plated copper wire in some occasions called silver-coated copper wire or silver-plated wire, is in the oxygen free copper wire or low oxygen copper wire after silver plating, after drawing machine drawn fine wire.

Silver-plated copper wire has excellent electrical conductivity, thermal conductivity, corrosion resistance and high temperature oxidation resistance. Silver coated copper wire is widely used in electronics, communication, aerospace, military industry and other fields to reduce the contact resistance of the metal surface and improve the welding performance.

Silver chemical stability is high, can resist alkali and some organic acid corrosion, in the general air does not play a role with oxygen, and silver is also easy to polish, has a strong reflective ability, so the silver plating layer is often used in tableware, Musical Instruments, jewelry and various crafts of decoration.

Item Diameter(mm)
0.05<=d<=0.09 0.09<d<=0.25 0.25<d<=0.50 0.50<d<=2.00
Tolerance(mm) ±0.002 ±0.003 ±0.004 ±d%
Resistivity(Ωmm2/m) <=0.017241 (Soft)
<=0.01796 (Hard)
Elongation(%) >=13 >=18 >=20 >=25
Tensile Strength(MPa) Soft:>=196; Hard:350
Coating Thickness(um) 0.3-10.0um
Appearance No scratches, oil stains, exposed copper, oxidation, etc.
Packing 5 inch,8 inch,9 inch,Type 300,Type 400, etc.
Remark According to customers' requirements



Silver Plated Copper Stranded Wire

Item Diameter(mm)
0.05<=d<=0.09 0.09<d<=0.25 0.25<d<=0.50
Tolerance(mm) ±0.003 ±0.004 ±0.005
Resistivity(Ωmm2/m) <=0.01851 <=0.01802 <=0.0177
Elongation(%) >=6 >=12 >=15
Tensile Strength(MPa) >=196
Coating Thickness(um) 0.3-2.0
Strand 7-100
Direction of Twist Z(left) or S(right)
Lay length(mm) 2.0-100
Appearance No scratches, oil stains, exposed copper, oxidation, etc.
Packing Type 200, Type 300,Type 400, etc.
Remark According to customers' requirements
