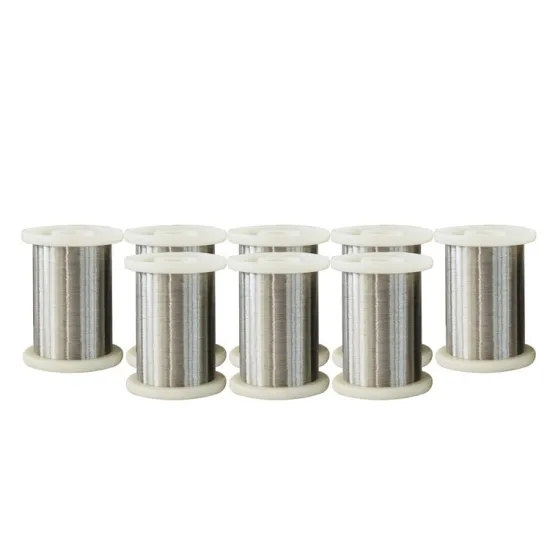

7/0.102mm 7/0.175mm Silver Plated Copper Clad Steel Stranded Wire
7/0.102mm 7/0.175mm Silver Plated Copper Clad Steel Stranded Wire
7/0.102mm 7/0.175mm Silver Plated Copper Clad Steel Stranded Wire
7/0.102mm 7/0.175mm Silver Plated Copper Clad Steel Stranded Wire
7/0.102mm 7/0.175mm Silver Plated Copper Clad Steel Stranded Wire
7/0.102mm 7/0.175mm Silver Plated Copper Clad Steel Stranded Wire
7/0.102mm 7/0.175mm Silver Plated Copper Clad Steel Stranded Wire
7/0.102mm 7/0.175mm Silver Plated Copper Clad Steel Stranded Wire
Specifications
Brand Name :
TANKII
Model Number :
Silver Plated Copper Clad Steel Stranded Wire
Certification :
ISO SGS
Place of Origin :
China
MOQ :
Negotiable
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200 Tons per Month
Delivery Time :
7-12 work days
Packaging Details :
wooden case / Carton
Material :
Silver Plated Copper Clad Steel Stranded Wire
Diameter :
0.05mm
Surface :
Bright
Color :
Silver gray
Coating Thickness（um） :
0.3-2.0
Name :
Silver Plated Copper Clad Steel Stranded Wire
Description

7/0.102mm 7/0.175mm Silver Plated Copper Clad Steel Stranded Wire

Silver-plated copper-clad steel wire (hard wire)

Product standard: refer to ASTM B501-04, ASTM B355-95 or according to customers’ requirements

Item Diameter(mm)
0.10<d≦0.23 0.23<d≦0.50
Tolerance(mm) ±0.003 ±0.004
Resistivity(Ωmm2/m) ≧40%
Elongation(%) ≦5%
Tensile Strength(MPa) Hard:≧700
Coating Thickness(um) 0.3-2.0um
Appearance No scratches, oil stains, exposed copper, oxidation, etc.
Packing 8 inch,9 inch, etc.
Remark According to customers’ requirements

Silver-plated copper-clad steel wire

Item Diameter(mm)
7/0.102 7/0.175
Tolerance(mm) ±0.003 ±0.003
Resistivity(Ωmm2/m) ≧40%
Elongation(%) ≦4%
Tensile Strength(MPa) ≧196
Coating Thickness(um) 1.5-3.0um
Strand 7
Direction of Twist Z(left) or S(right)
Lay length(mm) 3.0-10.0
Appearance No scratches, oil stains, exposed copper, oxidation, etc.
Packing Type 300
Remark According to customers’ requirements

7/0.102mm 7/0.175mm Silver Plated Copper Clad Steel Stranded Wire
