Specifications
MOQ :
20kg
Place of Origin :
China
Delivery Time :
15-20 days
Brand Name :
TANKII
Certification :
ISO9001
Price :
negotiable
Model Number :
6J40
Supply Ability :
300t/year
Description

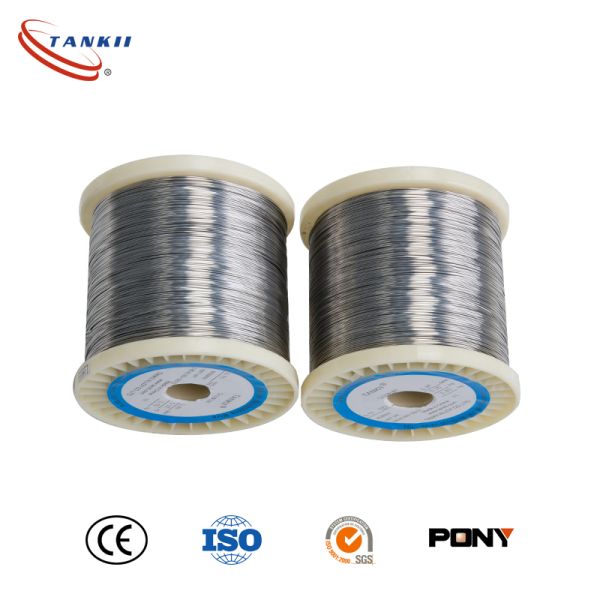

Constantan Eureca Wire / Flat Wire
Product Description
Constantan Wire with moderate resistivity and low temperature coefficent of resistance with a flat resistance/temperature curve over a wider range than the "manganins". Constantan also shows better corrosion resistance than the man ganins. Uses tend to be restricted to ac circuits.
Constantan wire is also the negative element of the type J thermocouple with Iron being the positive; type J thermocouples are used in heat treating applications. Also, it is the negative element of the type T thermocouple with OFHC Copper the positive; type T thermocouples are used at cryogenic temperatures.

Chemical Content, %


Ni
Mn
Fe
Si
Cu
Other
ROHS Directive

Cd
Pb
Hg
Cr

44
1.50%
0.5
-
Bal
-
ND
ND
ND
ND


Mechanical Properties


Max Continuous Service Temp
400ºC

Resisivity at 20ºC
0.49±5%ohm mm2/m

Density
8.9 g/cm3

Thermal Conductivity
-6(Max)

Melting Point
1280ºC

Tensile Strength,N/mm2 Annealed,Soft
340~535 Mpa

Tensile Strength,N/mm3 Cold Rolled
680~1070 Mpa

Elongation(anneal)
25%(Min)

Elongation(cold rolled)
≥Min)2%(Min)

EMF vs Cu, μV/ºC (0~100ºC)
-43

Micrographic Structure
austenite

Magnetic Property
Non
