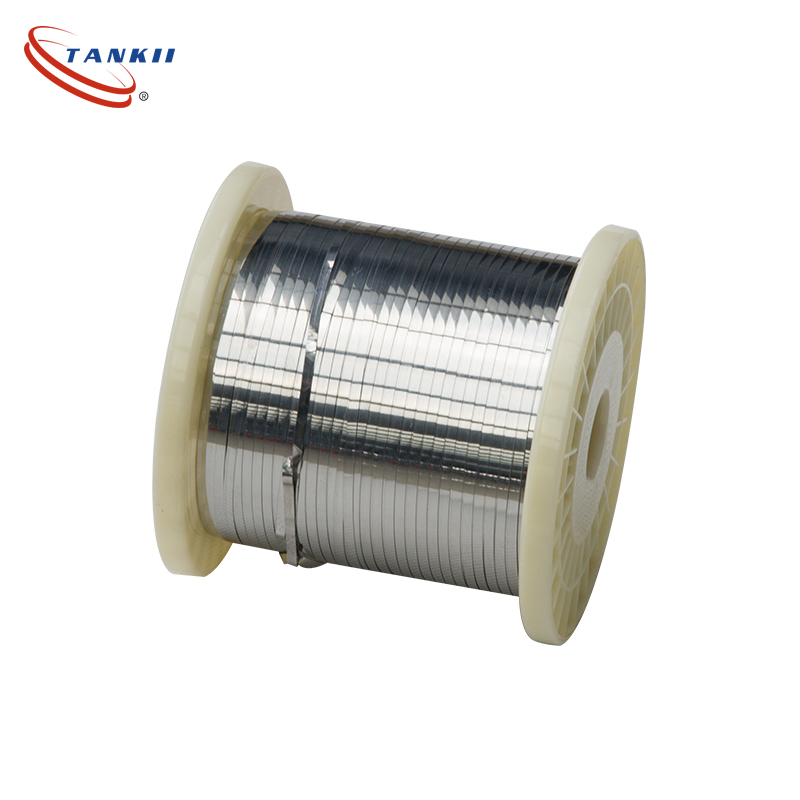

0.1*0.2mm CuNi44 Copper-Nickel Alloy Flat Wire for Under Floor Heating Cable - Low Resistance Heating Alloy
0.1*0.2mm CuNi44 Copper-Nickel Alloy Flat Wire for Under Floor Heating Cable - Low Resistance Heating Alloy
0.1*0.2mm CuNi44 Copper-Nickel Alloy Flat Wire for Under Floor Heating Cable - Low Resistance Heating Alloy
0.1*0.2mm CuNi44 Copper-Nickel Alloy Flat Wire for Under Floor Heating Cable - Low Resistance Heating Alloy
0.1*0.2mm CuNi44 Copper-Nickel Alloy Flat Wire for Under Floor Heating Cable - Low Resistance Heating Alloy
0.1*0.2mm CuNi44 Copper-Nickel Alloy Flat Wire for Under Floor Heating Cable - Low Resistance Heating Alloy
0.1*0.2mm CuNi44 Copper-Nickel Alloy Flat Wire for Under Floor Heating Cable - Low Resistance Heating Alloy
0.1*0.2mm CuNi44 Copper-Nickel Alloy Flat Wire for Under Floor Heating Cable - Low Resistance Heating Alloy
Specifications
Supply Ability :
1000kg/month
Serves :
Small Order Accepted
Model Number :
CuNi44
MOQ :
5kg
Delivery Time :
10-15days
Standard :
GB/T
Payment Terms :
T/T,Western Union
Sample :
Sample Available
Application :
Water Heater, Heating, Air Condition or Refrigerator, Water Tube
Price :
25-37USD/KG
Conductor Type :
Solid
Insulation Material :
Bare
Certification :
ISO9001
Place of Origin :
China
Packaging Details :
case
Brand Name :
Tankii
Description

CuNi44 Alloy wire use for under floor heating cable.

Product Description
CuNi2 alloy wire: low resistance heating alloy is widely used in low-voltage circuit breaker, thermal overload relay, and other low-voltage electrical product. It is one of the key materials of the low-voltage electrical products. The materials produced by our company have the characteristics of good resistance consistency and superior stability. We can supply all kinds of round wire, flat and sheet materials.

Chemical Content, %

Ni Mn Fe Si Cu Other ROHS Directive
Cd Pb Hg Cr
2 - - - Bal - ND ND ND ND


Mechanical Properties

Max Continuous Service Temp 200ºC
Resisivity at 20ºC 0.05±10%ohm mm2/m
Density 8.9 g/cm3
Thermal Conductivity 100(max)
Melting Point 1280ºC
Tensile Strength,N/mm2 Annealed,Soft 140~310 Mpa
Tensile Strength,N/mm2 Cold Rolled 280~620 Mpa
Elongation(anneal) 25%(min)
Elongation(cold rolled) 2%(min)
EMF vs Cu, μV/ºC (0~100ºC) -8
Micrographic Structure austenite
Magnetic Property Non
