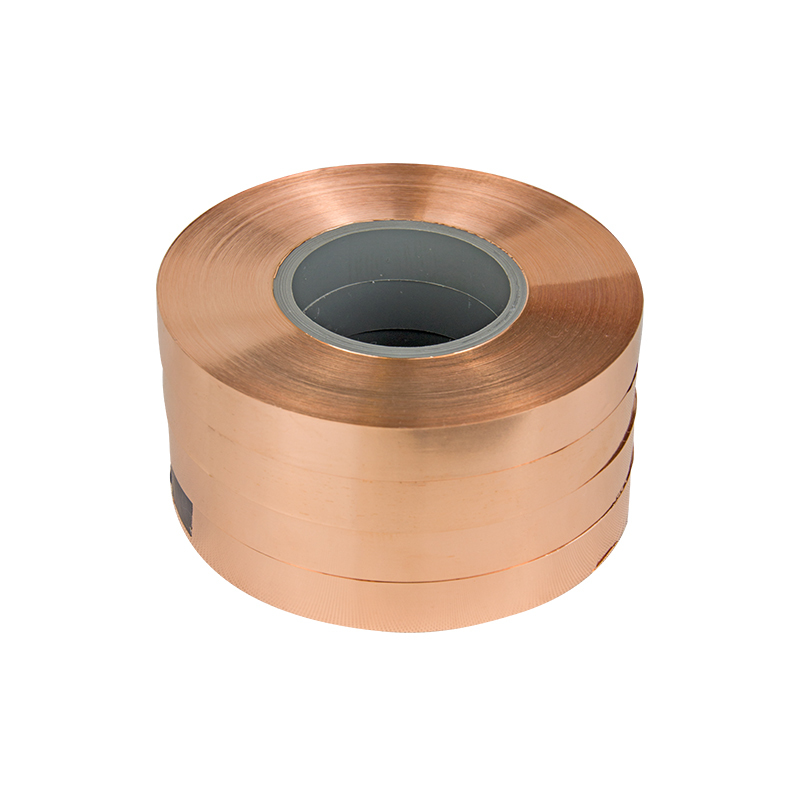

6J12 Precision Resistance Alloy Foil 0.025x270mm for High Precision Resistor Elements, Strain Gauge Sensors and Precision Measuring Instruments

Specifications

Price :

negotiate

Material :

Manganin 47

TCR(×10﹣6/℃) :

-3+20

Shape :

Foil

Elongation(%) :

≥15

Delivery Time :

15-25days

Density :

8.44g/cm³

Packaging Details :

Carton box

EMF vs Cu μV/℃（0-100℃） :

≤1

Resistivity at 20℃（μΩ/cm） :

Payment Terms :

T/T

Supply Ability :

5000tons per year

MOQ :

30kg

Description

Product Description

manganin strip resistance heating strip(6J8, 6J11, 6J12, 6J13)

Chemical Content, %

Ni	Mn	Fe	Si	Cu	Other	ROHS Directive
						Cd	Pb	Hg	Cr
2-5	11-13	-	-	Bal	-	ND	ND	ND	ND

Mechanical Properties

Max Continuous Service Temp	0-100ºC
Resisivity at 20ºC	0.43±0.05ohm mm2/m
Density	8.4g/cm3
Temp Coefficient of Resistance at 20 ºC	0~+40 α×10-6/ºC
Melting Point	1000ºC
Tensile Strength(Hard)	635 Mpa(min)
Tensile Strength,N/mm2 Annealed,Soft	340-539
Elongation	25
EMF vs Cu, μV/ºC (0~100ºC)	<2
Micrographic Structure	austenite
Magnetic Property	non

Application of Manganin
Manganin strip and wire is used in the manufacture of resistor, Particularly ammeter shunt, because of its virtually zero temperature coefficient of resistance value and long term stability.

Packing detail
1). Coil (plastic spool) + compressed ply-wooden case + pallet
2). Coil (plastic spool) + carton + pallet
