2*0.711mm Fiberglass Insulated Thermocouple Cable Oxidized Surface
2*0.711mm Fiberglass Insulated Thermocouple Cable Oxidized Surface
2*0.711mm Fiberglass Insulated Thermocouple Cable Oxidized Surface
2*0.711mm Fiberglass Insulated Thermocouple Cable Oxidized Surface
Specifications
Brand Name :
TANKII
Model Number :
fiberglass
Certification :
ISO9001
Place of Origin :
Shanghai
MOQ :
2000m
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500000+meter+month
Delivery Time :
8-20 days
Packaging Details :
standard packing
type :
insulated
surface :
Bright/ oxidized
grade :
I/II
tensile strength :
390
Description

Product Description

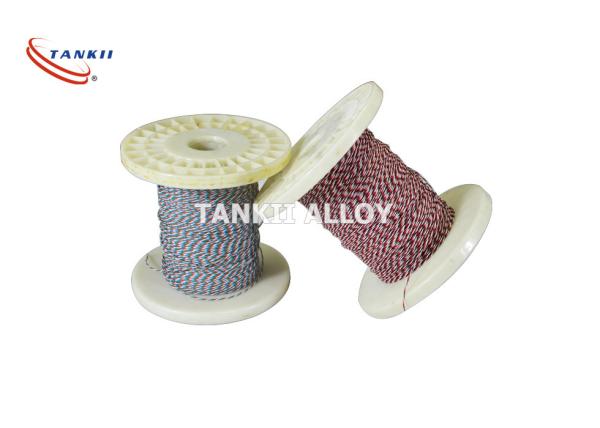

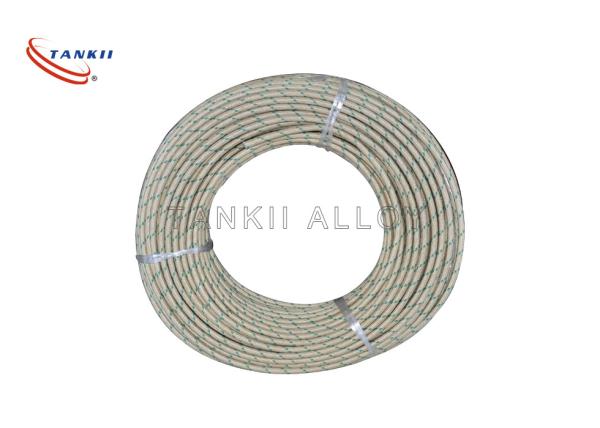

2*0.711mm tankii Fiberglass Insulated Thermocouple Wire (type K, J, T, E, N, )

What is a Thermocouple?
A Thermocouple is a sensor used to measure temperature. Thermocouples consist of two wire legs made from different metals. The wires legs are welded together at one end, creating a junction. This junction is where the temperature is measured. When the junction experiences a change in temperature, a voltage is created. The voltage can then be interpreted using thermocouple reference tables to calculate the temperature.

NiCr- CuNi thermocouple (type E) is also named NiCr-Constantan thermocouple. It has a stronger signal & higher accuracy than the Type K or Type J at moderate temperature ranges of 1,000F and lower. The type E is also more stable than the type K, which adds to its accuracy.

Type E thermocouple has the largest EMF output and highest sensitivity, so it is ideal for measuring small temperature change. It also has good stability in the low temperature range up to 300ºC, and good property of anti-corrosion in humidity atmosphere. It is recommended for oxidizing or inert atmospheres, but cannot be used directly in reducing atmosphere and atmosphere with sulphur gases(tankii).


Detailed Parameter

Chemical Composition

Conductor Name
Polarity
Code
Nominal Chemical Composition /%

Ni
Cr
Cu

NiCr
Positive
EP
90
10
--

Cu-Ni(Constantan)
Negative
EN
45
--
55
Working Temperature Range

Diameter/mm
Long time Working temperature /ºC
Short period Working temperature /ºC

0.3, 0.5
350
450

0.8, 1.0, 1.2
450
550

1.6, 2.0
550
650

2.5
650
750

3.2
750
900




Application:
Heating - Gas burners for ovens
Cooling - Freezers
Engine protection - Temperatures and surface temperatures
High temperature control - Iron casting

Packing & Delivery
Packaging Details: 500m/1000m per roll with plastic film wrapped and carton package. As the order quantity and customer requirement.
Delivery Detail: By sea/ air. About 7 days, as the order quantity.
