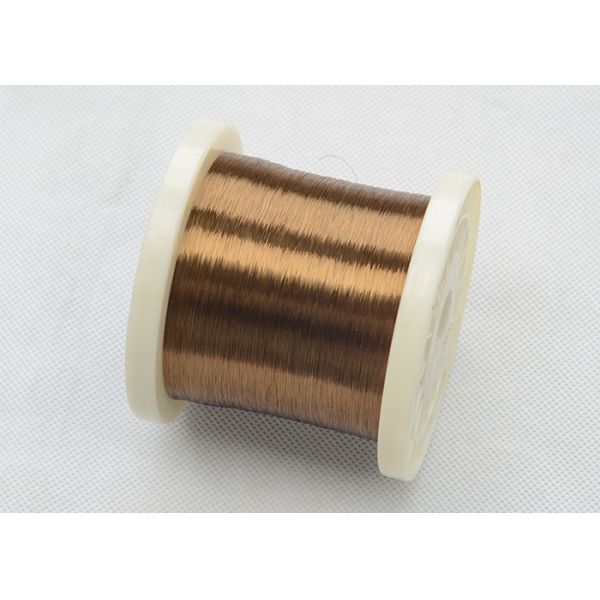

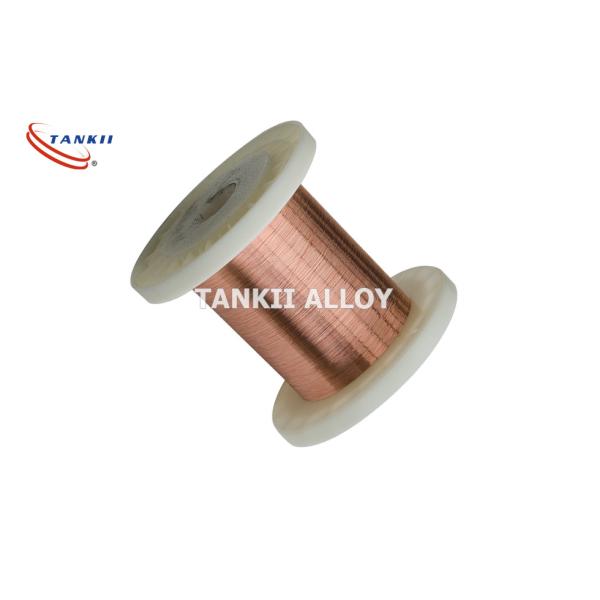

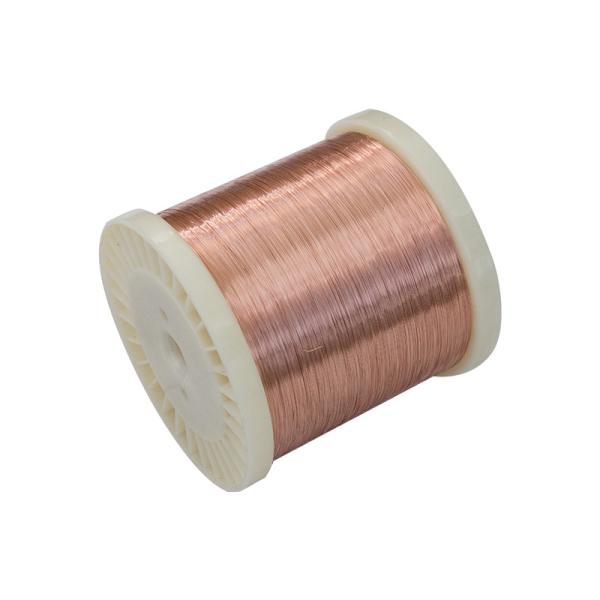

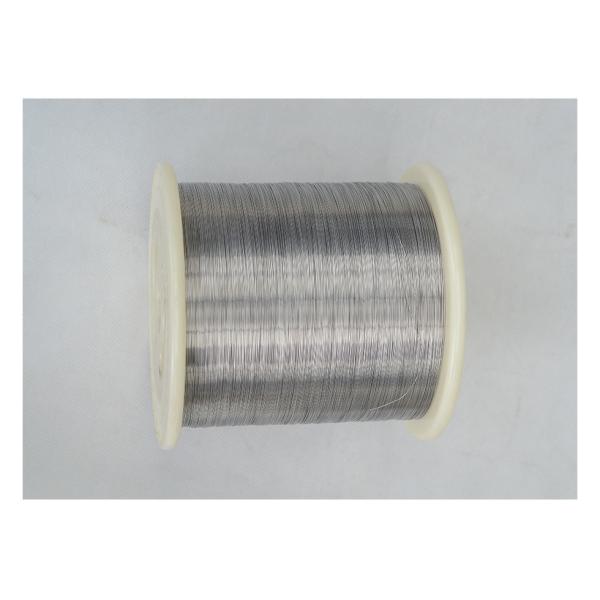

Constantan Manganin Copper Nickel Alloy Wire Low Carbon
Constantan Manganin Copper Nickel Alloy Wire Low Carbon
Constantan Manganin Copper Nickel Alloy Wire Low Carbon
Constantan Manganin Copper Nickel Alloy Wire Low Carbon
Specifications
Brand Name :
TANKII
Model Number :
CuNi1-CuNi44
Certification :
ISO9001
Place of Origin :
Shanghai
MOQ :
50kg
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100+ton+month
Delivery Time :
8-15 days
Packaging Details :
standard packing
material :
copper nickel alloy
type :
solid round wire
carbon content :
low carbon
surface :
bright
Description

Copper Alloy Wire constantan manganin CuNi1-CuNi44

nickel and strengthening impurities, such as iron and manganese.
Cupronickel does not corrode in seawater,
because its electrode potential is adjusted to be neutral with regard to seawater.
Because of this it is used for marine hardware,
and sometimes for the propellers,
crankshafts and hulls of premium tugboats,
fishing boats and other working boats.
TANKII alloy, Always best quality, favourable price.
Chemical Content, %

Ni Mn Fe Si Cu Other ROHS Directive
Cd Pb Hg Cr
2~3 11~13 0.5(max) micro Bal - ND ND ND ND


Mechanical Properties

Max Continuous Service Temp 0-45ºC
Resisivity at 20ºC 0.47±0.03ohm mm2/m
Density 8.44 g/cm3
Thermal Conductivity -3~+20KJ/m·h·ºC
Temp Coefficient of Resistance at 20 ºC -2~+2α×10-6/ºC(Class0)
-3~+5α×10-6/ºC(Class1)
-5~+10α×10-6/ºC(Class2)
Melting Point 1450ºC
Tensile Strength(Hard) 635 Mpa(min)
Tensile Strength,N/mm2 Annealed,Soft 340~535
Elongation 15%(min)
EMF vs Cu, μV/ºC (0~100ºC) 1
Micrographic Structure austenite
Magnetic Property non
Micrographic Structure Ferrite
Magnetic Property Magnetic


Application of Manganin
Manganin foil and wire is used in the manufacture of resistor, Particularly ammeter shunt, because of its virtually zero temperature coefficient of resistance value and long term stability.
