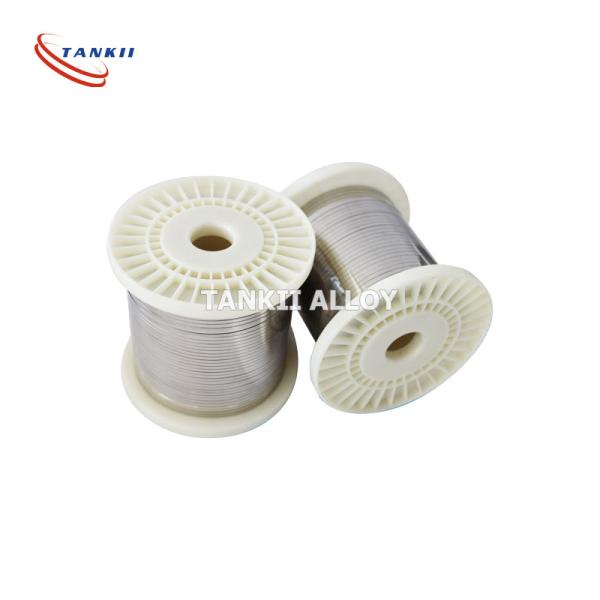

CuNi2/CuNi10/CuNi44 Nickel Alloy Strip Resistance Heating For Resistor
CuNi2/CuNi10/CuNi44 Nickel Alloy Strip Resistance Heating For Resistor
CuNi2/CuNi10/CuNi44 Nickel Alloy Strip Resistance Heating For Resistor
CuNi2/CuNi10/CuNi44 Nickel Alloy Strip Resistance Heating For Resistor
CuNi2/CuNi10/CuNi44 Nickel Alloy Strip Resistance Heating For Resistor
CuNi2/CuNi10/CuNi44 Nickel Alloy Strip Resistance Heating For Resistor
CuNi2/CuNi10/CuNi44 Nickel Alloy Strip Resistance Heating For Resistor
CuNi2/CuNi10/CuNi44 Nickel Alloy Strip Resistance Heating For Resistor
Specifications
Brand Name :
Tankii
Model Number :
Nickel copper
Certification :
ISO 9001
Place of Origin :
CHINA
MOQ :
5KG
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000kg/month
Delivery Time :
5-30 days
Packaging Details :
spool，coil
Type :
Bare
Application :
Resistance application;
Conductor type :
soft
Conductor material :
CuNi
Insulation material :
none
Material :
cu-ni
Description

Copper CuNi10/CuNi2 Nickel Alloy Strip/Flat Wire For Resistor

CuNi2 Resistance Heating Wire

Copper Nickel 2 s a copper nickel alloy with the addition of Manganese to produce an alloy with a relatively low resistivity but high resistance to oxidation and chemical corrosion. Maximum working temperature is 500 °C. Applications include heating cords and mats

III Main Advantage and Application

A. Physical parameter:

1) Wire diameter: 0.025 ~ 15mm
2) Pure nickel has the ability to withstand relatively high temperatures without deterioration. Maximum operating temperature is approximate 600°C

3) Nickel wire is available in single strand or multi-strand construction. It is supplied from stock either bare, or insulated

B. Characteristics:

1) Excellent straightness

2) Uniform and beautiful surface condition without spots

3) Excellent coil-forming ability

C. Main applications and general purpose:

1) This wire can also be widely used in generally specified for transistor caps, anodes for electronic tubes, leads of electronic components / lead-in-wires for lamps and for wire-mesh. Also used in strip form for various applications including Ni-Cd batteries

2) Also used for cables, Lead-in-Wire for lamps, electronic tube supports, wire cloth electrical connecting leads where temperatures are in excess of those for which copper is suitable, wire weaving

3) Typical applications include: terminations for heating elements as in ovens, plastics extruders, furnaces. Filament supports and lead wires in the lighting industry
NC005 electric alloy material resistance heating wire
Please contact us freely, if you want to know more.

Chemical Composition and Main Property of Cu-Ni Low Resistance Alloy
PropertiesGrade CuNi1 CuNi2 CuNi6 CuNi8 CuMn3 CuNi10
Main Chemical Composition Ni 1 2 6 8 _ 10
Mn _ _ _ _ 3 _
Cu Bal Bal Bal Bal Bal Bal
Max Continuous Service Temperature(ºC) 200 200 200 250 200 250
Resisivity at 20ºC (Ω*mm²/m) 0.03 0.05 0.1 0.12 0.12 0.15
Density(g/cm³) 8.9 8.9 8.9 8.9 8.8 8.9
Thermal Conductivity(α×10-6ºC) <100 <120 <60 <57 <38 <50
Tensile Strength(Mpa) ≥210 ≥220 ≥250 ≥270 ≥290 ≥290
EMF vs Cu(μVºC)(0~1000ºC) -8 -12 -12 -22 _ -25
Approximate Melting Point(ºC) 1085 1090 1095 1097 1050 1100
Micrographic Structure austenite austenite austenite austenite austenite austenite
Magnetic Property non non non non non non
PropertiesGrade CuNi14 CuNi19 CuNi23 CuNi30 CuNi34 CuNi44
Main Chemical Composition Ni 14 19 23 30 34 44
Mn 0.3 0.5 0.5 1 1 1
Cu Bal Bal Bal Bal Bal Bal
Max Continuous Service TemperatureºC) 300 300 300 350 350 400
Resisivity at 20ºC (Ω*mm²/m) 0.2 0.25 0.3 0.35 0.4 0.49
Density(g/cm³) 8.9 8.9 8.9 8.9 8.9 8.9
Thermal Conductivity(α×10-6ºC) <30 <25 <16 <10 <0 <-6
Tensile Strength(Mpa) ≥310 ≥340 ≥350 ≥400 ≥400 ≥420
EMF vs Cu(μVºC)(0~1000ºC) -28 -32 -34 -37 -39 -43
Approximate Melting Point(ºC) 1115 1135 1150 1170 1180 1280
Micrographic Structure austenite austenite austenite austenite austenite austenite
Magnetic Property non non non non non non

CuNi2/CuNi10/CuNi44 Nickel Alloy Strip Resistance Heating For ResistorCuNi2/CuNi10/CuNi44 Nickel Alloy Strip Resistance Heating For Resistor
