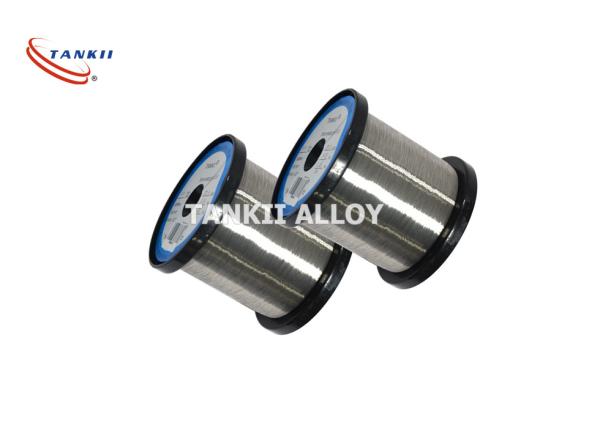

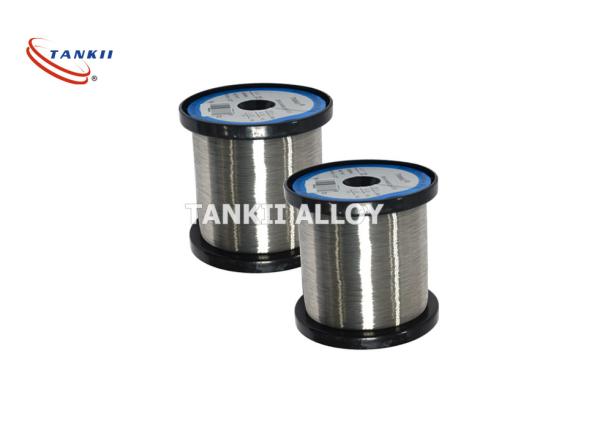

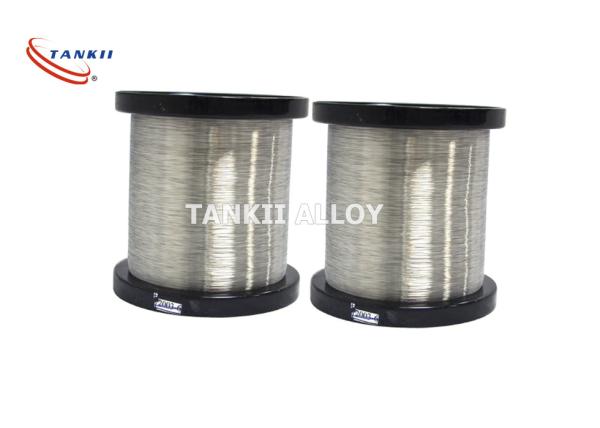

Electric Heating Resistors Nickel Chrome Alloy Wire Bright Surface N8
Electric Heating Resistors Nickel Chrome Alloy Wire Bright Surface N8
Electric Heating Resistors Nickel Chrome Alloy Wire Bright Surface N8
Electric Heating Resistors Nickel Chrome Alloy Wire Bright Surface N8
Electric Heating Resistors Nickel Chrome Alloy Wire Bright Surface N8
Electric Heating Resistors Nickel Chrome Alloy Wire Bright Surface N8
Electric Heating Resistors Nickel Chrome Alloy Wire Bright Surface N8
Electric Heating Resistors Nickel Chrome Alloy Wire Bright Surface N8
Specifications
Brand Name :
TANKII
Model Number :
NiCr80/20
Certification :
DIN, ASTM, JIS ROHS
Place of Origin :
Jiangsu, China
MOQ :
10KG
Price :
30-80USD
Payment Terms :
T/T, L/C, , Western Union
Supply Ability :
50 tons per month
Delivery Time :
5-10 work days
Packaging Details :
spool ,coil, carton, wood box, or as clients' requirement
Grade :
NiCr8020, Chromel A, Nikrothal 80, NCHW1,N8, Cronix 80, Alloy A, Stablohm 650, MWS-650
Application :
furnace heating wire/household appliances
Elongation (≥ %) :
20
Resistance (μω.m) :
1.09
Powder or not :
Not Powder
Type :
Nickel Chrome Alloy
Surface :
Bright Annealed
Shape :
round wire
Material :
Nichrome
Condition :
soft annealed
Standard :
ASTM B162, GB/1234 2012, GB/T 2054-2013, ASTM ASME, ASME SB162
Density :
8.4
Feature :
high temperature strength
Description

Nickel Chrome Alloy N8 NiCr80/20 for Electric Heating Resistors

1--Product Description

The nichrome resistance wire resistivity is steady, the temperature coefficient is small, the inoxidizability is good, the service life is long, the reasonable price and so on a series of merits, are the industry electric stove, the Household,appliances, in the far infrared installment ideal give off heat the material.

2--- Packaging & Shipping

Environmental protection pallets or Environmental protection box or Environmental protection wooden boxes

3--- Our Services:

We are committed to: a timely and detailed reply to the user advice, in the production, transportation, and after-sales service every link to achieve effective control.

Application:

1.used in the explosives and fireworks industry as a bridgewire in electric ignition systems.

2.Industrial and hobby hot wire foam cutters.

3.testing the colour of the flame in the non-luminous part of fire of a cation.

4. used in ceramics as an internal support structure.

Packaging:A full range of flexible packaging options are available to fit your individual requirements.

Chemical Composition and Main Properties

Properties Grade NiCr 80/20 NiCr 70/30 NiCr 60/15 NiCr 35/20 NiCr 30/20
Main Chemical Composition% Ni Balance Balance 55.0-61.0 34.0-37.0 30.0-34.0
Cr 20.0-23.0 28.0-31.0 15.0-18.0 18.0-21.0 18.0-21.0
Fe ≤1.0 ≤1.0 Balance Balance Balance
Max Continuous Service Temperature(°C) 1200 1250 1150 1100 1100
Resisivity (uΩ.m,20°C) 1.09 1.18 1.12 1.04 1.04
Density (g/cm3) 8.4 8.1 8.2 7.9 7.9
Thermal Conductivity(KJ/m·h·°C) 60.3 45.2 45.2 43.8 43.8
Coefficient of Thermal Expansion(α×10-6/°C) 18.0 17.0 17.0 19.0 19.0
Melting Point( °C) 1400 1380 1390 1390 1390
Elongation(%) ≥20 ≥20 ≥20 ≥20 ≥20
Micrographic Structure austenite austenite austenite austenite austenite
Magnetic Property nonmagnetic nonmagnetic nonmagnetic nonmagnetic nonmagnetic

Electric Heating Resistors Nickel Chrome Alloy Wire Bright Surface N8Electric Heating Resistors Nickel Chrome Alloy Wire Bright Surface N8

Electric Heating Resistors Nickel Chrome Alloy Wire Bright Surface N8
