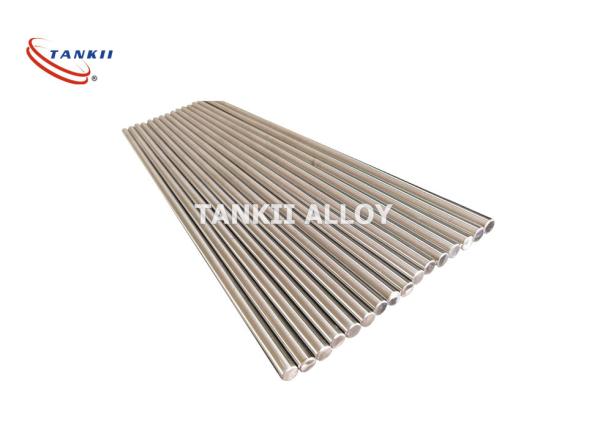

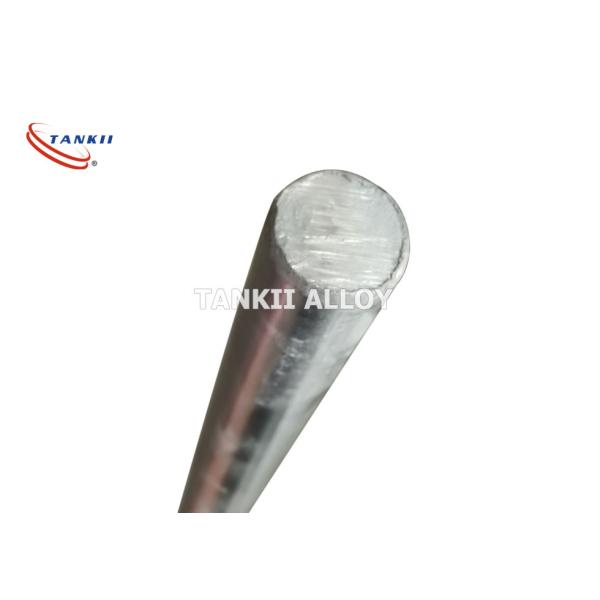

Fecral 0cr25al5 Resistance Alloy Round Bar Rod For Heating Elements
Fecral 0cr25al5 Resistance Alloy Round Bar Rod For Heating Elements
Fecral 0cr25al5 Resistance Alloy Round Bar Rod For Heating Elements
Fecral 0cr25al5 Resistance Alloy Round Bar Rod For Heating Elements
Specifications
Brand Name :
TANKII
Model Number :
0cr25al5
Certification :
ISO9001
Place of Origin :
China Mainland
MOQ :
20 kg
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 tons/year
Delivery Time :
7~20 days after getting the payment
Packaging Details :
Carton case
MOQ :
5kg
Package :
On Bobbin, carton box
Leading time :
15 days
Application :
Resistor, heating elements
Description

Fecral 0cr25al5 resistance alloy round bar rod For Heating Elements

General Description
FeCrAl alloy is made by a high-temperature, ferritic iron-chromium-aluminium alloy which can be used at temperatures up to 1350degrees. Typical applications for 0Cr21Al6Nb are as electrical heating elements in high-temperature furnaces in the heat treating, ceramics, glass, steel, and electronics industries.

Feature:
With long service life.Heating up fast.High thermal efficiency.Temperature uniformity. Can use vertically. When being used in the rated voltage,there is no volatile matter.It is an environmental protection electric heating wire. And an alternative to the costly nichrome wire.Can be customized according to customer requirements

Normal composition%

C P S Mn Si Cr Ni Al Fe Other
Max
0.06 0.025 0.025 0.70 Max 0.60 23.0~26.0 Max 0.60 4.5~6.5 Bal. -


Typical Mechanical properties(1.0mm)

Yield strength Tensile Strength Elongation
Mpa Mpa %
500 700 23


Typical Physical properties

Density (g/cm3) 7.10
Electrical resistivity at 20ºC(Om*mm2/m) 1.42
Conductivity coefficient at 20ºC (WmK) 13
Coefficient of thermal expansion
Temperature Coefficient of Thermal Expansion x10-6/ºC
20 ºC- 1000ºC 15

Specific heat capacity
Temperature 20ºC
J/gK 0.46
Melting point (ºC) 1500
Max continuous operating temperature in air (ºC) 1250
Magnetic properties non-magnetic


Temperature Factor of Electrical Resistivity

20ºC 100ºC 200ºC 300ºC 400ºC 500ºC 600ºC 700ºC 800ºC 900ºC 1000ºC 1100ºC 1200ºC 1300ºC
1 1.002 1.005 1.008 1.013 1.021 1.030 1.038 1.040 1.042 1.044 1.046 1.047

The feature of our resistance alloy products :composition uniformity,high resistivity,accurate size,long service life,we can do all kinds of spiral shape wire accordding to your drawings,and our engineers will give you reasonable advices.They are widely used in small electric furnace,muffle furnace,all kinds of ovens,heating air-condition equipment,electrical heated tube,and home appliances etc.

Fecral 0cr25al5 Resistance Alloy Round Bar Rod For Heating ElementsFecral 0cr25al5 Resistance Alloy Round Bar Rod For Heating ElementsFecral 0cr25al5 Resistance Alloy Round Bar Rod For Heating Elements

Fecral 0cr25al5 Resistance Alloy Round Bar Rod For Heating Elements

Package of resistance wire :

Fecral 0cr25al5 Resistance Alloy Round Bar Rod For Heating Elements

Fecral 0cr25al5 Resistance Alloy Round Bar Rod For Heating Elements

Fecral 0cr25al5 Resistance Alloy Round Bar Rod For Heating Elements

Fecral 0cr25al5 Resistance Alloy Round Bar Rod For Heating Elements

Fecral 0cr25al5 Resistance Alloy Round Bar Rod For Heating Elements

Fecral 0cr25al5 Resistance Alloy Round Bar Rod For Heating Elements

Fecral 0cr25al5 Resistance Alloy Round Bar Rod For Heating Elements

Remark:


Please call me at +86-18017457857 or email (lisa@tankii.com) to me for more information on FeCrAl products.
