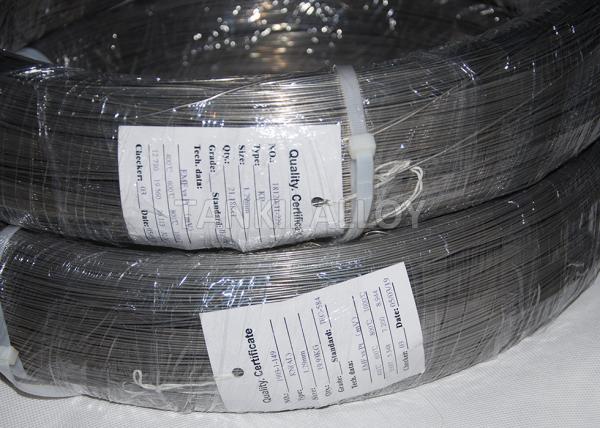

Oxidized Alumel Chromel K Type Thermocouple Wire 16AWG 1.29mm Diameter
Oxidized Alumel Chromel K Type Thermocouple Wire 16AWG 1.29mm Diameter
Oxidized Alumel Chromel K Type Thermocouple Wire 16AWG 1.29mm Diameter
Oxidized Alumel Chromel K Type Thermocouple Wire 16AWG 1.29mm Diameter
Oxidized Alumel Chromel K Type Thermocouple Wire 16AWG 1.29mm Diameter
Oxidized Alumel Chromel K Type Thermocouple Wire 16AWG 1.29mm Diameter
Oxidized Alumel Chromel K Type Thermocouple Wire 16AWG 1.29mm Diameter
Oxidized Alumel Chromel K Type Thermocouple Wire 16AWG 1.29mm Diameter
Specifications
Brand Name :
Tankii
Model Number :
Chromel Alumel
Certification :
ISO9001
Place of Origin :
China Mainland
MOQ :
10kg per leg
Price :
Negotiation
Payment Terms :
T/T, Paypal, Western Union, MoneyGram,
Supply Ability :
1000Ton per year
Delivery Time :
5-7 days after getting the payment
Packaging Details :
Standard exoprt package in carton box or wooden box
Material :
Chromel alumel
Surface :
Bright
Diameter :
≥ 0.1mm
Wire Type :
solid wire
Insulation :
Customized
Wire class :
IEC class I , II,
Leading time :
5~20 days after getting the payment
Description

Oxidized 16AWG 1.29mm Alumel Chromel K Type Thermocouple Wire IEC60584 Class 1 Prices

Quick Description

A typical thermocouple construction consists of a pair of dissimilar metals that are electrically joined together at the sensing point and connected to a voltage measuring instrument at the other end. When one junction is hotter than the other, a thermal “electromotive” force (in millivolts) is produced that is roughly proportional to the difference in temperature between the hot and cold junctions.

NiCr-NiSi (Type K) thermocouple finds the widest use in all basemetal thermocouple, at temperature above 500 °C.

Type K thermocouple has strong resistance to oxidation than other base metal thermocouples. It has high EMF against Platinum 67, excellent temperature accuracy, sensitivity and stability, with a low cost. It is recommended for oxidizing or inert atmospheres, but cannot be used directly in the following cases:

(1) Alternatively oxidizing and reducing atmosphere.
(2) Atmosphere with sulphur gases.
(3) Long time in vacuum.
(4) Low oxidizing atmosphere such as hydrogen and carbon monoxide atmosphere.

Oxidized 16AWG 1.29mm Alumel Chromel K Type Thermocouple Wire IEC60584 Class 1 Prices

Characteristics:

The thermocouple wires have excellent performance and are extensively used in the temperature measurement and control in different fields, such as metallurgy, chemical industry, petroleum industry, machinery-electric industry, energy industry, agriculture and military industry.

Our products conform to the standards of IEC584 -1and IEC-2.

Thermocouple strips, thermocouple connectors are available.
Oxidized 16AWG 1.29mm Alumel Chromel K Type Thermocouple Wire IEC60584 Class 1 Prices
Application Range of thermocouple wire:
1. Aerospace and Composites
2. Aluminum industry
3. Food and Pharmaceutical
4. Forgings
5. Glass, Ceramics, Clay Tiles, Bricks
6. Heat Treating
7. Petroleum, Downhole Oil & Gas
8. Sensor Manufacturing
9. Steel industry
10. Utilities Power Generation
Oxidized 16AWG 1.29mm Alumel Chromel K Type Thermocouple Wire IEC60584 Class 1 Prices
Oxidized Alumel Chromel K Type Thermocouple Wire 16AWG 1.29mm Diameter
Thermocouple Type and Temperature Range

Thermocouple type and index

Measurement Range

℃

Type

Index

PtRh30-PtRh6

 B 600~1700

PtRh13-Pt

 R 0~1600

PtRh10-Pt

 S 0~1600

NiCr-NiSi

 K -200~1300

NiCr-CuNi (constantan)

 E -200~900

Fe-CuNi (constantan)

 J -40~750

Cu-CuNi (constantan)

 T -200~350

NiCrSi-NiSi

 N -200~1300

The allowable grade and Tolerance are obtained at 0℃

Thermocouple

Type

 Grade

Temperature range

℃

 Allowable Tolerance /℃
Type B Ⅱ 600~1700 ±0.25% t
Ⅲ 600~800 ±4
800~1700 ±0.5%t
Type R(S) Ⅰ 0~1100 ±1
1100~1600 ±[1+(t－1100) ×0.3％]
Ⅱ 0~600 ±1.5
600~1600 ±0.25% t
Type K and Type N Ⅰ -40~1100 ±1.5℃ or ±0.4%t
Ⅱ -40~1300 ±2.5℃ or ±0.75%t
Ⅲ -200~40 ±2.5℃ or ±1.5%t
Type E Ⅰ -40~1100 ±1.5℃ or ±0.4%t
Ⅱ -40~1300 ±2.5℃ or ±0.75%t
Ⅲ -200~40 ±2.5℃ or ±1.5%t
Type J Ⅰ -40~750 ±1.5℃ or ±0.4%t
Ⅱ -40~750 ±2.5℃ or ±0.75%t
Type T Ⅰ -40~350 ±0.5℃ or ±0.4%t
Ⅱ -40~350 ±1.0℃ or ±0.75%t
Ⅲ -200~40 ±1.0℃ or ±1.5%t

Delivery and Packing of thermocouple wire:
1. Packaging Details : 500m/1000m per roll with plastic film wrapped and carton package.
2. Leading time : 5 - 20 days, as the order quantity of thermocouple wire.
3. Delivery: By express, air, sea as per thermocouple wire qty
Oxidized Alumel Chromel K Type Thermocouple Wire 16AWG 1.29mm Diameter
Welcome to call me or email to me for more information on thermocouple wire.
