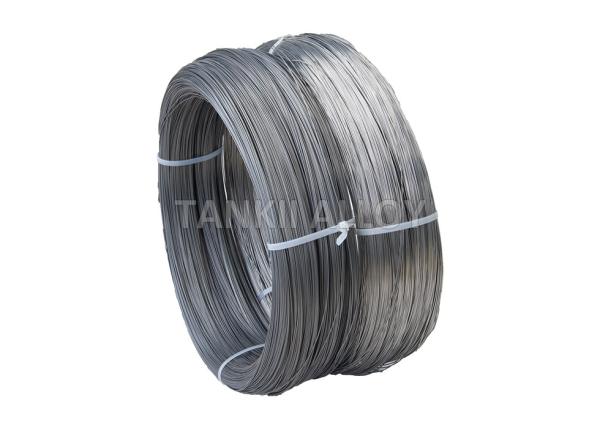

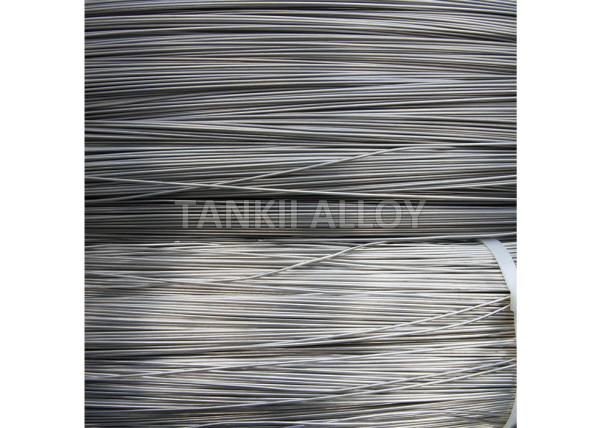

OEM Thermocouple Alloy In Roll With 1.5mm 2.0mm For Sheathed Thermocouple Sensor
OEM Thermocouple Alloy In Roll With 1.5mm 2.0mm For Sheathed Thermocouple Sensor
OEM Thermocouple Alloy In Roll With 1.5mm 2.0mm For Sheathed Thermocouple Sensor
OEM Thermocouple Alloy In Roll With 1.5mm 2.0mm For Sheathed Thermocouple Sensor
OEM Thermocouple Alloy In Roll With 1.5mm 2.0mm For Sheathed Thermocouple Sensor
OEM Thermocouple Alloy In Roll With 1.5mm 2.0mm For Sheathed Thermocouple Sensor
OEM Thermocouple Alloy In Roll With 1.5mm 2.0mm For Sheathed Thermocouple Sensor
OEM Thermocouple Alloy In Roll With 1.5mm 2.0mm For Sheathed Thermocouple Sensor
Specifications
Brand Name :
Tankii
Model Number :
K
Certification :
ISO9001
Place of Origin :
China Mainland
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T, Paypal, Western Union, MoneyGram,
Supply Ability :
1000Ton per year
Delivery Time :
5-7 days after getting the payment
Packaging Details :
Standard exoprt package in carton box or wooden box
Standard :
ANSI, IEC584
Application :
thermocouple,temperature measurement
Tolerance :
IEC class 1
Diameter :
customized
Delivery time :
5~10 days after getting the payment
Item :
Thermocouple Alloy K E N T J In Roll With 1.5mm 2.0mm Used For Sheathed Thermocouple Sensor
Conductor type :
single /stranded
Shape :
wire on bobbin
Description

Thermocouple Alloy K E N T J In Roll With 1.5mm 2.0mm Used For Sheathed Thermocouple Sensor

Thermocouple wire allows temperatures to be measured electronically. A typical thermocouple construction consists of a pair of dissimilar metals that are electrically joined together at the sensing point and connected to a voltage measuring instrument at the other end. When one junction is hotter than the other, a thermal “electromotive” force (in millivolts) is produced that is roughly proportional to the difference in temperature between the hot and cold junctions.

Special application of Tankii thermocouple wire:
1. Mineral Insulated Thermocouples
2. Plastics/Packaging Industry T/C's & RTD's
3. Industrial Thermocouples
4. Food, Dairy & Pharmaceutical Probes

OEM Thermocouple Alloy In Roll With 1.5mm 2.0mm For Sheathed Thermocouple Sensor

Thermocouple Alloy K E N T J In Roll With 1.5mm 2.0mm Used For Sheathed Thermocouple Sensor

Shanghai Tankii Thermocouple wire's Characteristics:
The thermocouple wires have excellent performance and are extensively used in the temperature measurement and control in different fields, such as metallurgy, chemical industry, petroleum industry, machinery-electric industry, energy industry, agriculture and military industry.

Tankii products conform to the standards of IEC584 -1 and 2.

Tankii Thermocouple strips, thermocouple connectors are available.
Tankii thermocouple grade extension wire can be supplied as per your request.
Tankii KX, JX, TX KC, RC,EX wire with class 1 and 2 are available.
Thermocouple Alloy K E N T J In Roll With 1.5mm 2.0mm Used For Sheathed Thermocouple Sensor
More parameters of Tankii thermocouple wires:
Tankii Thermocouple Type and Temperature Range

Thermocouple type and index

Measurement Range

℃

Type

Index


PtRh30-PtRh6

 B 600~1700


PtRh13-Pt

 R 0~1600


PtRh10-Pt

 S 0~1600


NiCr-NiSi

 K -200~1300


NiCr-CuNi (constantan)

 E -200~900


Fe-CuNi (constantan)

 J -40~750


Cu-CuNi (constantan)

 T -200~350


NiCrSi-NiSi

 N -200~1300

The allowable grade and Tolerance are obtained at 0℃

Thermocouple
Type

 Grade

Temperature range
℃

 Allowable Tolerance /℃
Type B Ⅱ 600~1700 ±0.25% t
Ⅲ 600~800 ±4
800~1700 ±0.5%t
Type R(S) Ⅰ 0~1100 ±1
1100~1600 ±[1+(t－1100) ×0.3％]
Ⅱ 0~600 ±1.5
600~1600 ±0.25% t
Type K and Type N Ⅰ -40~1100 ±1.5℃ or ±0.4%t
Ⅱ -40~1300 ±2.5℃ or ±0.75%t
Ⅲ -200~40 ±2.5℃ or ±1.5%t
Type E Ⅰ -40~1100 ±1.5℃ or ±0.4%t
Ⅱ -40~1300 ±2.5℃ or ±0.75%t
Ⅲ -200~40 ±2.5℃ or ±1.5%t
Type J Ⅰ -40~750 ±1.5℃ or ±0.4%t
Ⅱ -40~750 ±2.5℃ or ±0.75%t
Type T Ⅰ -40~350 ±0.5℃ or ±0.4%t
Ⅱ -40~350 ±1.0℃ or ±0.75%t
Ⅲ -200~40 ±1.0℃ or ±1.5%t


Product details:

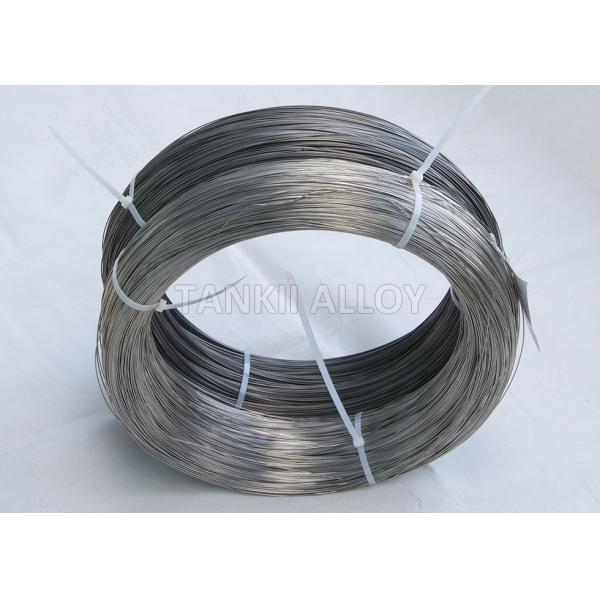

OEM Thermocouple Alloy In Roll With 1.5mm 2.0mm For Sheathed Thermocouple Sensor

Delivery and Packing of thermocouple wire:
1. Packaging Details : DIN spools with plastic film wrapped and carton package.
2. Leading time : 5 - 20 days, as the order quantity of thermocouple wire.
3. Delivery: By express, air, sea as per thermocouple wire qty
Thermocouple Alloy K E N T J In Roll With 1.5mm 2.0mm Used For Sheathed Thermocouple Sensor
OEM Thermocouple Alloy In Roll With 1.5mm 2.0mm For Sheathed Thermocouple Sensor
Thermocouple Alloy K E N T J In Roll With 1.5mm 2.0mm Used For Sheathed Thermocouple Sensor
Welcome to call me or email to me for more information on K type thermocouple wire, Thermocouple stranded wire , thermocouple flat wire, thermocouple strip.
