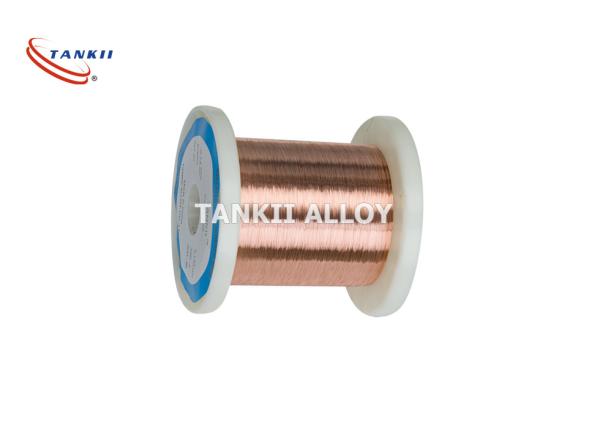

Low Resistance Heating CuNi2 Copper Nickel Alloy Wire
Low Resistance Heating CuNi2 Copper Nickel Alloy Wire
Specifications
Brand Name :
TANKII
Model Number :
CuNi2
Certification :
ISO9001
Place of Origin :
Shanghai,China
MOQ :
30kg
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, Paypal
Supply Ability :
100+TON+MONTH
Delivery Time :
7-20 DAYS
Packaging Details :
Spool, carton, plywod case with plastic film as clients required
material :
copper nickel
shape :
round wire
density :
8.9
elongation :
≥25%
melting point :
1090 degree
Description

Copper Nickel Alloy Wire CuNi2 Wire supplied by factory

The copper-based low resistance heating alloy is widely used in low-voltage circuit breaker, thermal overload relay, and other low-voltage electrical product. It is one of the key materials of the low-voltage electrical products. The materials produced by our company have the characteristics of good resistance consistency and superior stability. We can supply all kinds of round wire, flat and sheet materials.

CuNi2 low resistance heating alloy is widely used in low-voltage circuit breaker, thermal overload relay, and other low-voltage electrical product. It is one of the key materials of the low-voltage electrical products. The materials produced by our company have the characteristics of good resistance consistency and superior stability. We can supply all kinds of round wire, flat and sheet materials.

The alloy is non-magnetic. It is used for electrical regenerator's variable resistor and the strain resistor,
potentiometers, heating wires, heating cables and mats. Ribbons are used for heating of bimetals. Another field of application is manufacturing of thermocouples because it develops a high electromotive force (EMF) in association with others metals.

Copper nickel alloy series:Constantan CuNi40 (6J40), CuNi1, CuNi2, CuNi6, CuNi8, CuNi10, CuNi14, CuNi19, CuNi23,CuNi30, CuNi34, CuNi44.

Size dimension range:
Wire: 0.1-10mm
Ribbons: 0.05*0.2-2.0*6.0mm
Strip: 0.05*5.0-5.0*250mm

Main grades and properties

Type Electrical resistivity
(20degreeΩ
mm²/m)		 temperature coefficient of resistance
(10^6/degree)		 Dens
ity
g/mm²		 Max. temperature
(°c)		 Melting point
(°c)
CuNi1 0.03 <1000 8.9 / 1085
CuNi2 0.05 <1200 8.9
200		 1090
CuNi6 0.10 <600 8.9 220 1095
CuNi8 0.12 <570 8.9 250 1097
CuNi10 0.15 <500 8.9 250 1100
CuNi14 0.20 <380 8.9 300 1115
CuNi19 0.25 <250 8.9 300 1135
CuNi23 0.30 <160 8.9 300 1150
CuNi30 0.35 <100 8.9 350 1170
CuNi34 0.40 -0 8.9 350 1180
CuNi40 0.48 ±40 8.9 400 1280
CuNi44 0.49 <-6 8.9 400 1280

Low Resistance Heating CuNi2 Copper Nickel Alloy Wire

Low Resistance Heating CuNi2 Copper Nickel Alloy Wire

CuNi2 Gradenames:
Alloy 30, CuNi2, 30 Alloy, HAl-30 Alloy 230, Cuprothal 30

Chemical composition and main properties

Chemical Composition and Main Property of Cu-Ni Low Resistance Alloy
PropertiesGrade CuNi1 CuNi2 CuNi6 CuNi8 CuMn3 CuNi10
Main Chemical Composition Ni 1 2 6 8 _ 10
Mn _ _ _ _ 3 _
Cu Bal Bal Bal Bal Bal Bal
Max Continuous Service Temperature(º C) 200 200 200 250 200 250
Resisivity at 2º C (Ω mm2/m) 0.03 0.05 0.1 0.12 0.12 0.15
Density(g/cm3) 8.9 8.9 8.9 8.9 8.8 8.9
Thermal Conductivity(α × 10-6º C) < 100 < 120 < 60 < 57 < 38 < 50
Tensile Strength(Mpa) ≥ 210 ≥ 220 ≥ 250 ≥ 270 ≥ 290 ≥ 290
EMF vs Cu(μ Vº C)(0~10º C) -8 -12 -12 -22 _ -25
Approximate Melting Point(º C) 1085 1090 1095 1097 1050 1100
Micrographic Structure austenite austenite austenite austenite austenite austenite
Magnetic Property non non non non non non
PropertiesGrade CuNi14 CuNi19 CuNi23 CuNi30 CuNi34 CuNi44
Main Chemical Composition Ni 14 19 23 30 34 44
Mn 0.3 0.5 0.5 1 1 1
Cu Bal Bal Bal Bal Bal Bal
Max Continuous Service Temperatureº C) 300 300 300 350 350 400
Resisivity at 2º C (Ω mm2/m) 0.2 0.25 0.3 0.35 0.4 0.49
Density(g/cm3) 8.9 8.9 8.9 8.9 8.9 8.9
Thermal Conductivity(α × 10-6º C) < 30 < 25 < 16 < 10 < 0 < -6
Tensile Strength(Mpa) ≥ 310 ≥ 340 ≥ 350 ≥ 400 ≥ 400 ≥ 420
EMF vs Cu(μ Vº C)(0~10º C) -28 -32 -34 -37 -39 -43
Approximate Melting Point(º C) 1115 1135 1150 1170 1180 1280
Micrographic Structure austenite austenite austenite austenite austenite austenite
Magnetic Property non non non non non

non

Low Resistance Heating CuNi2 Copper Nickel Alloy WireLow Resistance Heating CuNi2 Copper Nickel Alloy WireLow Resistance Heating CuNi2 Copper Nickel Alloy Wire
