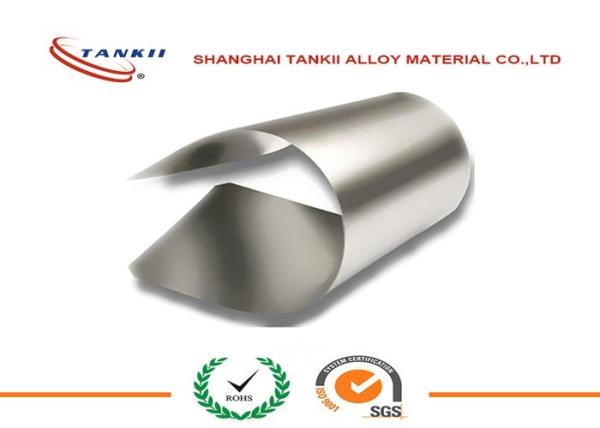

Purity ＞ 99.6 % Industrial Pure Nickel Strip , Nickel 200 Strip for Aviation / Ocean Industry
Purity ＞ 99.6 % Industrial Pure Nickel Strip , Nickel 200 Strip for Aviation / Ocean Industry
Purity ＞ 99.6 % Industrial Pure Nickel Strip , Nickel 200 Strip for Aviation / Ocean Industry
Purity ＞ 99.6 % Industrial Pure Nickel Strip , Nickel 200 Strip for Aviation / Ocean Industry
Purity ＞ 99.6 % Industrial Pure Nickel Strip , Nickel 200 Strip for Aviation / Ocean Industry
Purity ＞ 99.6 % Industrial Pure Nickel Strip , Nickel 200 Strip for Aviation / Ocean Industry
Specifications
Brand Name :
TANKII
Model Number :
Pure Ni
Certification :
ISO,ROHS
Place of Origin :
China
MOQ :
20KG
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10,000/Month
Packaging Details :
in roll, wooden case outside
Application :
:Aviation / Ocean Industry
Ni (Min) :
: 99.5% min
Width :
: Up to 600mm wide
Thickness :
: 0.002 to 2.50 mm
Standard :
: ASTM B162
Sample Free :
:Available
Description

Purity ＞ 99.6 % Industrial Pure Nickel Strip , Nickel 200 Strip for Aviation / Ocean Industry

Product Description

Pure Nickel Strip is primarily used for chemical treatment, preservation and production of synthetic fiber materials. The Pure Nickel strip can be operated up to 600̊F. It has outstanding magnetic properties and thermal and electrical conductivity.

Purity ＞ 99.6 % Industrial Pure Nickel Strip , Nickel 200 Strip for Aviation / Ocean Industry

Specification of Pure Nickel Strip:

Strip Size

Thickness – 0.005mm above, Width- 0.2mm above

Chemical Composition of Pure Nickel Strip:

Nickel

99.6%

Copper

0.25%

Iron

0.40%

Manganese

0.35%

Carbon

0.15%

Silicon

0.35%

Sulfur

0.01%

Physical properties of Pure Nickel Strip:

Density, g/cm3

8.89

Melting Range, °C

1435-1446

Specific Heat, J/kg•°C

456

Curie Temperature, °C

360

Nickel Strip Product Precision

Thickness

Thickness allowance

Burr height

Width scope and tolerance

2≤w<10

10≤w<50

50≤w<100

100≤w<150

150≤w<200

200≤w

0.02≤t<0.05

±0.003

≤0.005

±
0.05

±0.10

±0.15

±0.20

±0.30

±0.50

0.05≤t<0.1

±0.005

≤0.01

0.1≤t<0.2

±0.008

≤0.015

0.2≤t<0.3

±0.012

≤0.02

0.3≤t<0.4

±0.015

≤0.03

±
0.10

±0.15

±0.25

±0.50

±0.80

±1.00

0.4≤t<0.6

±0.025

≤0.05

0.6≤t<0.8

±0.030

≤0.06

±
0.30

±0.40

±0.50

±0.50

±0.80

±1.00

0.8≤t<1.0

±0.040

1.0≤t<1.2

±0.050

≤0.08

±
0.50

±0.50

±0.80

±1.00

±1.00

±1.50

1.2≤t<1.4

±0.060

1.4≤t<1.7

±0.070

≤0.10

1.7≤t<2.0

±0.080

Properties of Pure Nickel Strip:

  1. Higher electrical conductance
  2. Raised Curie Temperature
  3. Superior Magnetostrictive Properties
  4. Excellent thermal conductivity

Applications of Nickel 200 Strip:

  1. Manufacturing artificial synthetic fibers.
  2. Chemical Treatment and Preservation.
  3. Aerospace Industry.
  4. Cathode tap
  5. Cell connector
