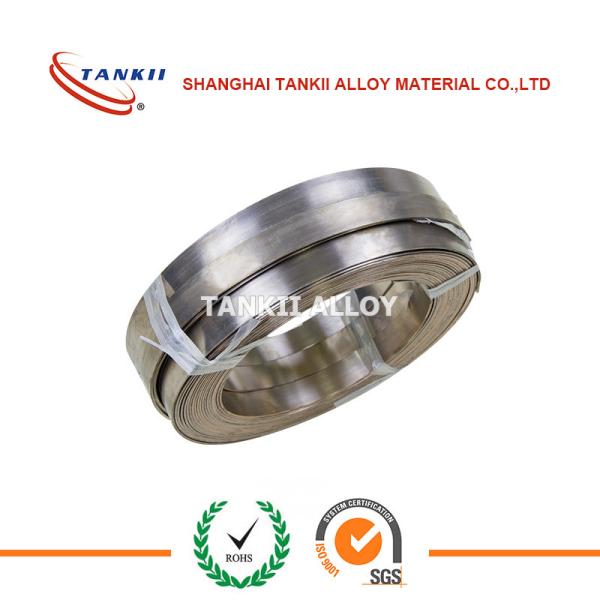

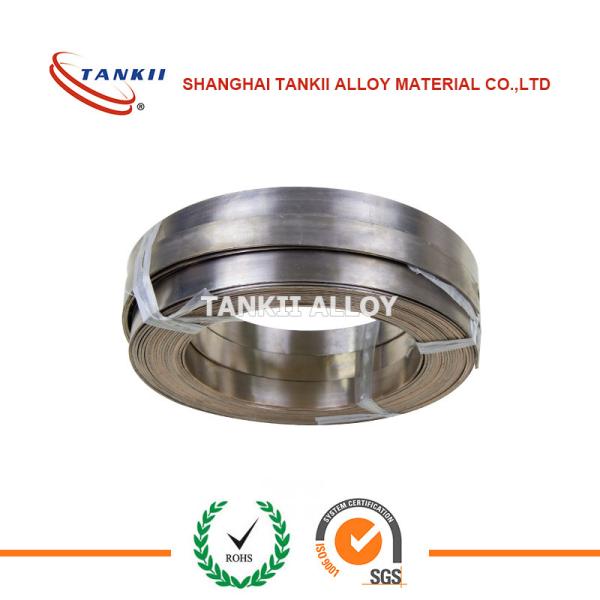

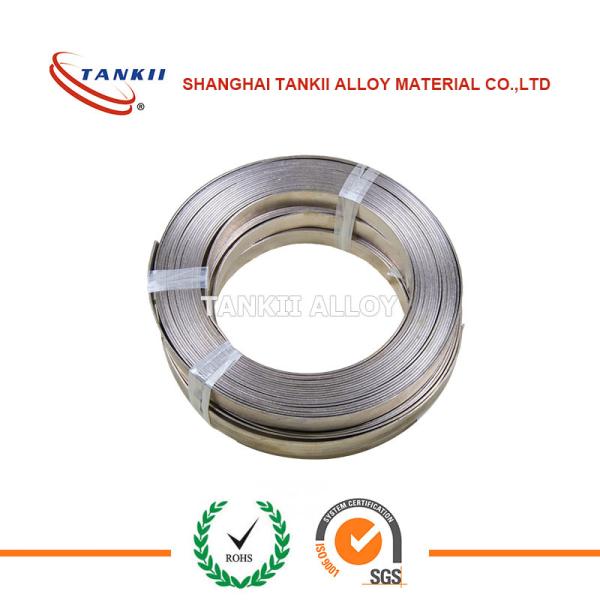

ni60cr15 / ni35cr20 / ni20cr25 / ni30cr20 Nickel Chrome Resistance Heating Strip
ni60cr15 / ni35cr20 / ni20cr25 / ni30cr20 Nickel Chrome Resistance Heating Strip
ni60cr15 / ni35cr20 / ni20cr25 / ni30cr20 Nickel Chrome Resistance Heating Strip
ni60cr15 / ni35cr20 / ni20cr25 / ni30cr20 Nickel Chrome Resistance Heating Strip
ni60cr15 / ni35cr20 / ni20cr25 / ni30cr20 Nickel Chrome Resistance Heating Strip
ni60cr15 / ni35cr20 / ni20cr25 / ni30cr20 Nickel Chrome Resistance Heating Strip
ni60cr15 / ni35cr20 / ni20cr25 / ni30cr20 Nickel Chrome Resistance Heating Strip
ni60cr15 / ni35cr20 / ni20cr25 / ni30cr20 Nickel Chrome Resistance Heating Strip
Specifications
Brand Name :
TANKII
Model Number :
Ni80
Certification :
SGS
Place of Origin :
Shanghai China
MOQ :
20Kg
Price :
USD 20-35 KG
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300Tons per month
Delivery Time :
7-12 work days
Packaging Details :
Wooden case
Sample :
Small Order Accepted
Color :
Silver gray
Temper :
soft,1/4hard,1/2hard,hard,T-hard
HS Code :
7506200000
Packing :
Waterproof Paper, Weave Bag, Wooden Case
Size :
140x0.5mm
Description

(ni80cr20/ni70cr30/ni60cr15/ni35cr20/ni20cr25/ ni30cr20) Nickel Chrome Resistance Heating Strip for Electric Heating Element


1.Nickel chrome wire Strip Bar includes: Cr25Ni20,Cr20Ni35,Cr15Ni60,Cr20Ni80 etc.

2.FeCrAl wire strip includes:
OCr13Al4,OCr19Al3,OCr21Al4,OCr20Al5,OCr25Al5,OCr21Al6,OCr21Al6Nb,OCr27Al7Mo2.
3.Copper Nickel wire Strip includes:
CuNi1,CuNi2,CuNi5,CuNi8,CuNi10,CuNi14,CuNi19,CuNi23,CuNi30,CuNi34,CuNi44.
4.Constantan Strip includes: CuNi44 CuNi45 CuNi40.
5.Manganin Strip: 6J8,6J12,6J13.

Deliveried surface conditions:
Bright annealed
Oxidized
Pickled
Enameled / PVC insulation

Fecral/Nichrome alloy size:
Wire:0.018mm-10mm
Ribbon:0.05*0.2mm-2.0*6.0mm
Strip:0.5*5.0mm-5.0*250mm
Bar:10-100mm

Ni80Cr20 composition%

C P S Mn Si Cr Ni Al Fe Other
Max
0.03 0.02 0.015 0.60 0.75~1.60 20.0~23.0 Bal. Max 0.50 Max 1.0 -

Alloy Nomenclature Performance Cr20Ni80 Cr30Ni70 Cr15Ni60 Cr20Ni35 Cr20Ni30
Main Chemical Ni Rest Rest 55.0-61.0 34.0-37.0 30.0-34.0
Cr 20.0-23.0 28.0-31.0 15.0-18.0 18.0-21.0 18.0-21.0
Fe ≤1.0 ≤1.0 Rest Rest Rest
Max. continuous service temp. of element(ºC) 1200 1250 1150 1100 1100
Resistivity at 20ºC (μΩ·m) 1.09 1.18 1.12 1.0 1.04
Density(g/cm3) 8.40 8.10 8.20 7.90 7.90
Thermal conductivity (KJ/m·h·ºC) 60.3 45.2 45.2 43.8 43.8
Coefficient of lines expansion(α×10-6/ºC) 18.0 17.0 17.0 19.0 19.0
Melting point approx.( ºC) 1400 1380 1390 1390 1390
Elongation at rupture(%) >20 >20 >20 >20 >20
Micrographic structure austenite austenite austenite austenite austenite
Magnetic properties nonmagnetic nonmagnetic Weak magnetic Weak magnetic Weak magnetic


FeCrAl Chemical composition

Alloy material Chemical composition %
C P S Mn Si Cr Ni Al Fe
max(≤)
1Cr13Al4 0.12 0.025 0.025 0.7 ≤1.00 12.5-15.0 ---- 3.5-4.5 Rest
0Cr15Al5 0.12 0.025 0.025 0.7 ≤1.00 14.5-15.5 ---- 4.5-5.3 Rest
0Cr25Al5 0.06 0.025 0.025 0.7 ≤0.60 23.0-26.0 ≤0.60 4.5-6.5 Rest
0Cr23Al5 0.06 0.025 0.025 0.7 ≤0.60 20.5-23.5 ≤0.60 4.2-5.3 Rest
0Cr21Al6 0.06 0.025 0.025 0.7 ≤1.00 19.0-22.0 ≤0.60 5.0-7.0 Rest
0Cr21Al4 0.06 0.025 0.025 0.7 ≤1.00 21.0-23.0 ≤0.60 3.0-5.2 Rest
0Cr21Al6Nb 0.05 0.025 0.025 0.7 ≤0.60 21.0-23.0 ≤0.60 5.0-7.0 Rest
0Cr27Al7Mo2 0.05 0.025 0.025 0.7 ≤0.40 26.5-27.8 ≤0.60 6.0-7.0 Rest


Main advantage and application
It widely used in surtur and sulfide environment and producing industrial electric
furnace, household electrical appliance and far infrared ray device.
