Specifications
Brand Name :
Best
Model Number :
1/2''-48''
Certification :
API/CE/ISO /TUV/PED
Place of Origin :
China /Japan
MOQ :
1Pcs
Price :
500 usd/Ton
Payment Terms :
L/C/ TT
Supply Ability :
1000000 Ton/year
Delivery Time :
5-8 working days
Packaging Details :
standard export packing or as required
Range :
15 NB UP TO 1200 NB
Material : :
ASTM / ASME SA 312 GR. TP 304 , 304L , 304H, 309S ,309H , 310S, 310H , 316 , 316TI , 316H , 316 LN , 317 , 317L , 321 , 321H , 347 , 347 H , 904L
Form :
SEAMLESS / ERW / WELDED IN ROUND & SQUARE
Polish :
Satin,Bright or Mirror
Out Diameters :
6mm~2500mm
Application :
Seawater heat exchanger tubes and seawater desalination plant pipes
Description

Product Name : Hot selling 304L Stainless Steel Pipe/ tube Make By ,Indian Make & China Make

Best Steel is a known exporter and manufacturer of Stainless Steel Pipes,

which are leak proof and offer hassle free installation.

We offer the same in different grades such as Stainless Steel 202 Pipes,

Stainless Steel 304 Pipes, Stainless Steel 304L Pipes,

Stainless Steel 304H Pipes, Stainless Steel 309 Pipes,

Stainless Steel 310S Pipes, Stainless Steel 310H Pipes,

Stainless Steel 316 Pipes, Stainless Steel 316L Pipes,

Stainless Steel 316H Pipes, Stainless Steel 316Ti Pipes,

Stainless Steel 317 Pipes, Stainless Steel 317L Pipes,

Stainless Steel 321 Pipes, Stainless Steel 321H Pipes,

Stainless Steel 347 Pipes, Stainless Steel 347H Pipes,

and Stainless Steel 904L Pipes. Meanwhile, our firm has attained specialization in offering a wide range of these

Stainless Steel Tubes. These SS Tubes are fabricated by our specialists in compliance with international quality standards using high grade factor inputs.

Buy SS Pipes at reasonable cost from us.

As per the variegated requirements of our clients,

we are offering a broad collection of SS Seamless Pipes to our clients

Stainless Steel Pipes Dimension (Schedule, Wall Tickness & Weight)

Designation of Diameter O/D Nominal Wall Thickness
DIA SCH.5S SCH.5 SCH 10S SCH.10 SCH.20S SCH.30 SCH.40S SCH.40 SCH 60
(A) (B) Meter
MM		 Wall
Thk		 Weight Kg/Mtr Wall
Thk		 Weight Kg/Mtr Wall
Thk		 Weight Kg/Mtr Wall
Thk		 Weight Kg/Mtr Wall
Thk		 Weight Kg/Mtr Wall
Thk		 Weight Kg/Mtr Wall
Thk		 Weight Kg/Mtr Wall
Thk		 Weight Kg/Mtr Wall
Thk		 Weight Kg/Mtr
6 1/8 10.3 1 0.23 1.2 0.27 1.5 0.33 1.73 0.37
8 1/4 13.7 1.2 0.37 1.65 0.49 2 0.58 2.24 0.64
10 3/8 17.2 1.2 0.47 1.65 0.63 2 0.74 2.31 0.87
15 1/2 21.3 1.65 0.01 1.65 0.81 2.11 1.02 2.11 1.02 2.5 1.15 2.77 1.29
20 3/4 26.7 1.65 1.03 1.65 1.03 2.11 1.3 2.11 1.3 2.5 1.49 2.87 1.71
25 1 33.4 1.65 1.31 1.65 1.31 2.77 2.13 2.77 2.13 3 2.24 3.38 2.54
32 11/4 24.2 1.65 1.67 1.65 1.67 2.77 2.73 2.77 2.73 3 2.9 3.56 3.44
40 11/2 48.3 1.65 1.93 1.65 1.93 2.77 3.16 2.77 3.16 3 3.35 3.68 4.11
50 2 60.3 1.65 1.93 1.65 2.42 2.77 3.99 2.77 3.99 3.5 4.9 3.91 5.52
65 21/2 73 2.11 3.75 2.11 3.75 3.05 5.34 3.05 5.34 3.5 6 5.16 8.77
80 3 88.9 2.11 4.59 2.11 4.59 3.05 6.56 3.05 6.56 4 8.37 5.49 11.47
90 31/2 101.6 2.11 5.25 2.11 5.25 3.05 7.53 3.05 7.53 4 9.62 5.74 13.78
100 4 114.3 2.11 5.93 2.11 5.93 3.05 8.5 3.05 8.5 4.5 12.18 6.02 6.32
125 5 141.3 2.77 9.61 2.77 9.61 3.4 11.74 3.43 11.74 5 16.8 6.55 2210
150 6 168.3 2.77 11.47 2.77 11.47 3.4 14.04 3.43 14.04 5.5 22.08 7.11 28.69
200 8 219.1 2.77 15 2.77 15 3.76 20.77 3.76 20.27 6.35 33.82 7.04 37.38 8.18 43.2 10.81 53.9
250 10 273.1 3.4 22.95 3.4 22.95 4.19 28.2 4.19 28.2 6.35 42.41 7.8 51.81 9.27 61.22 12.2 82.8
300 12 323.9 3.96 31.72 4.19 33.6 4.57 36.54 4.57 36.54 6.35 50.48 8.38 66.2 9.53 75.01 10.31 80.94 14.27 110.62
350 14 355.6 3.96 34.86 4.78 41.99 6.35 55.53 7.92 68.95 9.53 82.58 9.53 82.58 11.13 96 15.06 128.42
400 16 406.4 4.19 42.2 4.78 48.07 6.35 63.61 7.92 79.03 9.53 94.7 9.53 94.7 12.7 125.2 16.66 162.59
450 18 457.2 4.19 47.46 4.78 54.15 6.35 71.69 7.92 89.1 11.13 124.32 9.53 106.83 14.27 158.27 19.05 209
500 2C 508 4.78 60.23 5.54 69.7 6.35 79.76 9.53 118.93 12.7 157.51 9.53 118.9 15.06 185.89 2062 251.65
550 22 558.8 4.78 65.95 5.54 76.75 6.35 87.84 9.53 131.07 12.7 173.66 9.53 131.07 15.88 216.04 22.23 298.55
600 24 609.6 5.54 83.8 6.35 95.92 6.35 95.92 9.53 143.2 14.27 212.72 9.53 143.2 17.45 258.74 24.59 360.21
650 26 660.4 7.92 129.4 12.7 205.97 9.53 155.32
700 28 711.2 7.92 139.47 12.7 222.13 15.88 276.48 9.53 167.44
750 3C 762 6.35 120.15 7.92 149.55 7.92 149.55 12.7 238.28 15.88 296.68 9.53 179.56
800 32 812.8 7.92 159.62 12.7 254.44 15.88 316.88 9.53 191.69 17.48 348.11
850 34 863.6 7.92 169.64 12.7 270.5 15.88 336.96 9.53 203.74 17.48 370.22
900 36 914.4 7.92 179.77 12.7 286.75 15.88 357.28 9.53 215.93 19.05 427.09

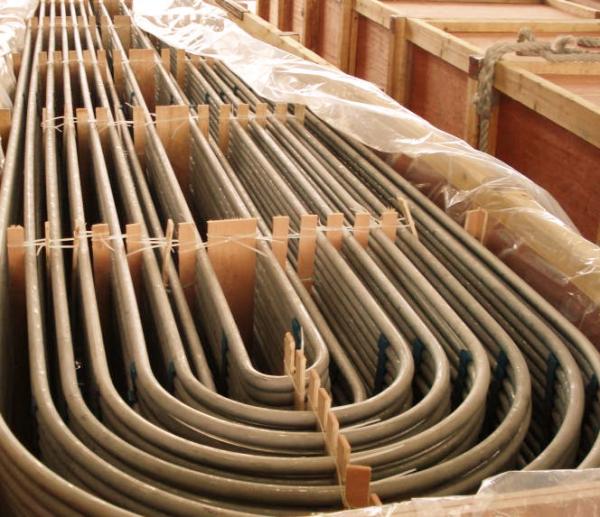

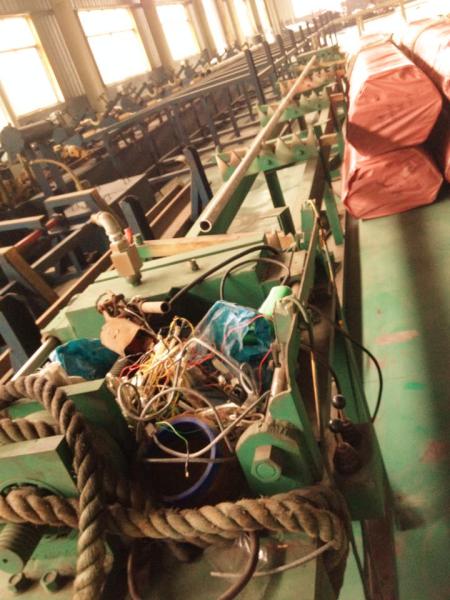

Stainless Steel Pipes Pictures :
