Double Sphere Flexible Joint with SS304 Flange and Max 1000℃ Temperature Rating for Absorbing Lateral, Axial, and Angular Displacement
Double Sphere Flexible Joint with SS304 Flange and Max 1000℃ Temperature Rating for Absorbing Lateral, Axial, and Angular Displacement
Double Sphere Flexible Joint with SS304 Flange and Max 1000℃ Temperature Rating for Absorbing Lateral, Axial, and Angular Displacement
Double Sphere Flexible Joint with SS304 Flange and Max 1000℃ Temperature Rating for Absorbing Lateral, Axial, and Angular Displacement
Double Sphere Flexible Joint with SS304 Flange and Max 1000℃ Temperature Rating for Absorbing Lateral, Axial, and Angular Displacement
Double Sphere Flexible Joint with SS304 Flange and Max 1000℃ Temperature Rating for Absorbing Lateral, Axial, and Angular Displacement
Double Sphere Flexible Joint with SS304 Flange and Max 1000℃ Temperature Rating for Absorbing Lateral, Axial, and Angular Displacement
Double Sphere Flexible Joint with SS304 Flange and Max 1000℃ Temperature Rating for Absorbing Lateral, Axial, and Angular Displacement
Double Sphere Flexible Joint with SS304 Flange and Max 1000℃ Temperature Rating for Absorbing Lateral, Axial, and Angular Displacement
Double Sphere Flexible Joint with SS304 Flange and Max 1000℃ Temperature Rating for Absorbing Lateral, Axial, and Angular Displacement
Double Sphere Flexible Joint with SS304 Flange and Max 1000℃ Temperature Rating for Absorbing Lateral, Axial, and Angular Displacement
Double Sphere Flexible Joint with SS304 Flange and Max 1000℃ Temperature Rating for Absorbing Lateral, Axial, and Angular Displacement
Specifications
Size: :
DN15-DN1000
Product Name :
double Sphere Rubber Joint
Application: :
Water, Warm Water, Sea Water, Weak Acid Fluid, Soda Fluid etc.
Technics: :
Welded, EPDM Rubber Joint
Material: :
EPDM, NEO, Butyl, Nitrile, Hypalon, Natural Rubber Joint
Temperature Rating :
Max 1000℃
Connection :
Flange
Bursting Pressure :
60kg/cm2(11/4''~8'') 40kg/cm2(10''~24'')
Brand Name :
Super
Model Number :
DN150
Certification :
CE, ISO , TUVE , SGS
Place of Origin :
China
MOQ :
1 pcs
Price :
160usd/pcs
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
10000 pcs in stocks
Delivery Time :
5-8 working days
Packaging Details :
1pc/ plastic film + woven bag
Description

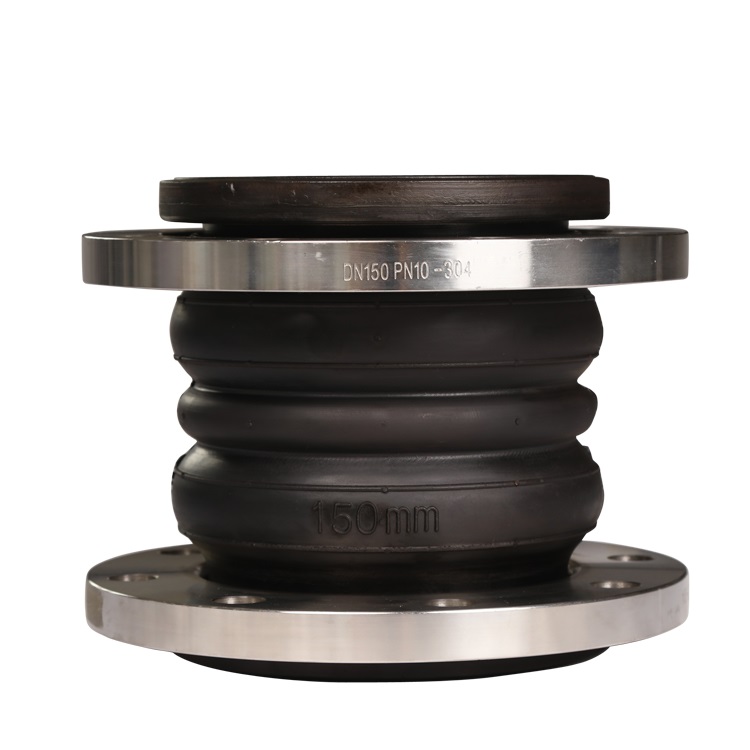

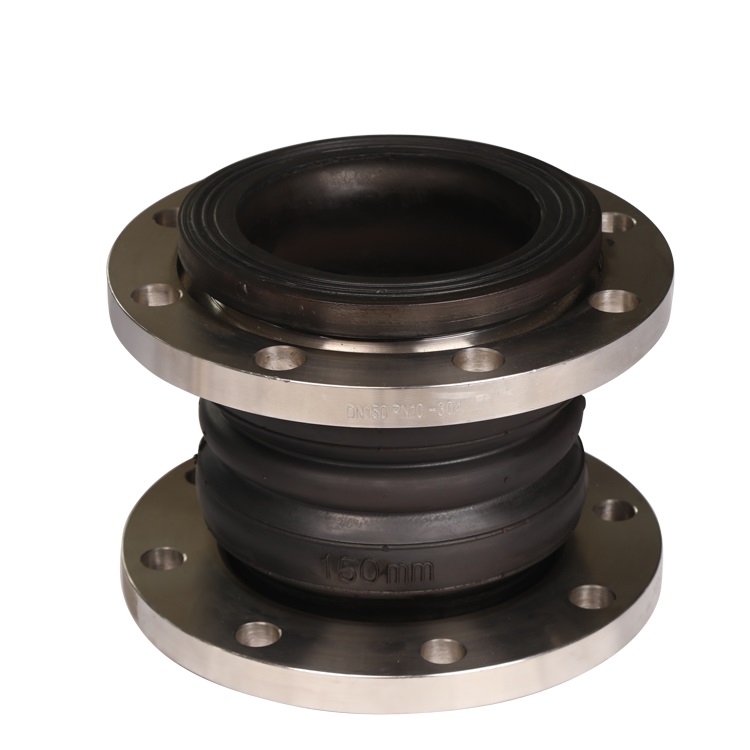

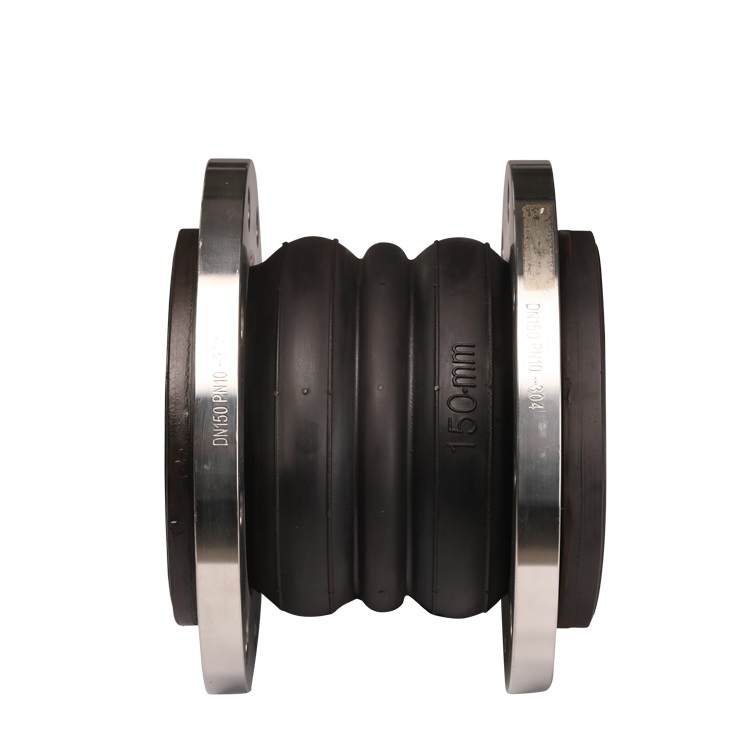

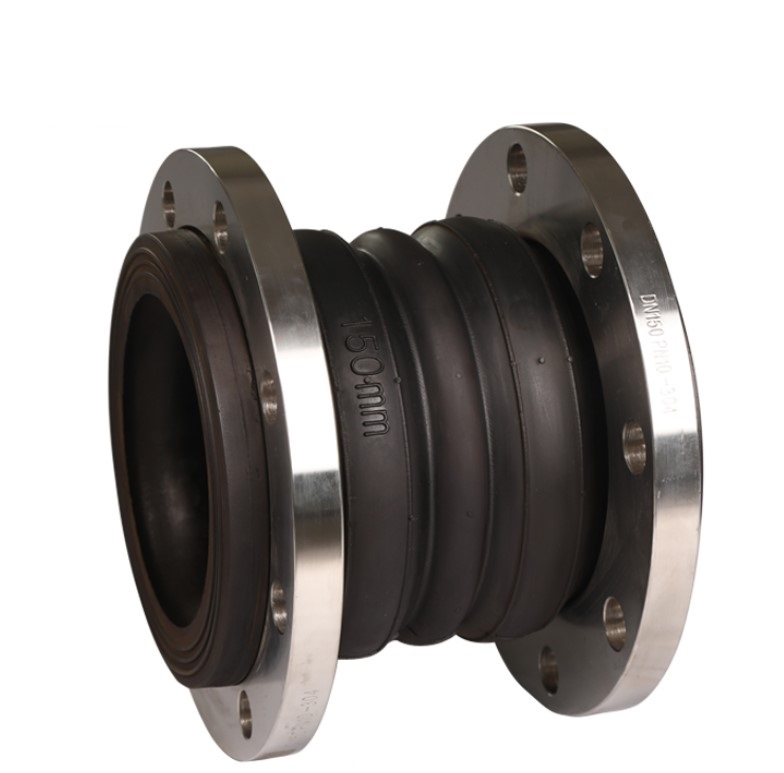

Double Sphere Flexible Joint - SS304 Flange Rubber Expansion Joint
Product Name: Double Sphere Flexible Joint SS304 Flange Rubber Expansion Joint

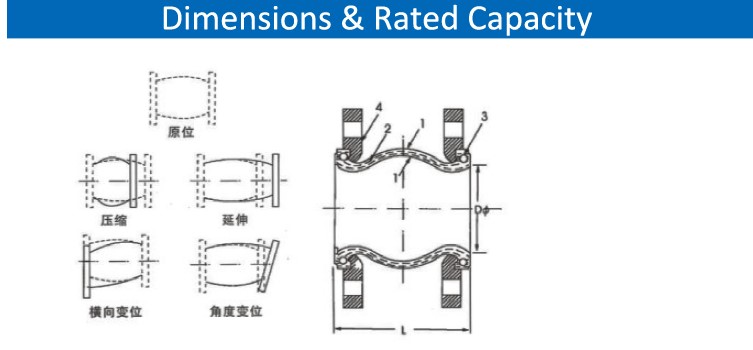

Product Components & Materials
ITEM PARTS MATERIAL
1 Ontology Elastomer Material
2 Intensify Nylon Contour Insulated Cord
3 Metal wire Hard Wire
4 Flange Flexible Steel, various available Galvanized Material

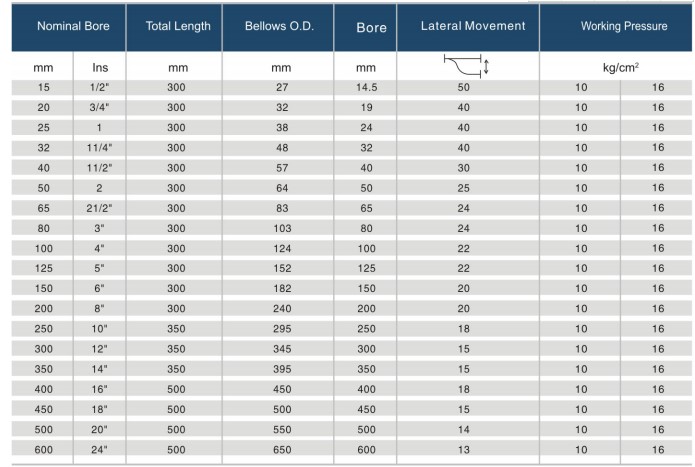

Product Specifications
Product Name Double Sphere Flexible Rubber Expansion Joint
Characteristics
  • Small size, light weight, good elasticity, easy to install
  • Can absorb lateral, axial and angular displacement caused by pipe vibration after installation
  • Not limited by pipe's non-concentric and non-parallel flange
  • When working, the structure can reduce noise transmission and has strong vibration absorption ability
Application Water, Sea Water, Fresh Water, Warm Water, Weak Acid Fluid, Soda Fluid, etc.
Product Gallery
Double Sphere Flexible Joint with SS304 Flange and Max 1000℃ Temperature Rating for Absorbing Lateral, Axial, and Angular Displacement Double Sphere Flexible Joint with SS304 Flange and Max 1000℃ Temperature Rating for Absorbing Lateral, Axial, and Angular Displacement Double Sphere Flexible Joint with SS304 Flange and Max 1000℃ Temperature Rating for Absorbing Lateral, Axial, and Angular Displacement Double Sphere Flexible Joint with SS304 Flange and Max 1000℃ Temperature Rating for Absorbing Lateral, Axial, and Angular Displacement Double Sphere Flexible Joint with SS304 Flange and Max 1000℃ Temperature Rating for Absorbing Lateral, Axial, and Angular Displacement Double Sphere Flexible Joint with SS304 Flange and Max 1000℃ Temperature Rating for Absorbing Lateral, Axial, and Angular Displacement
