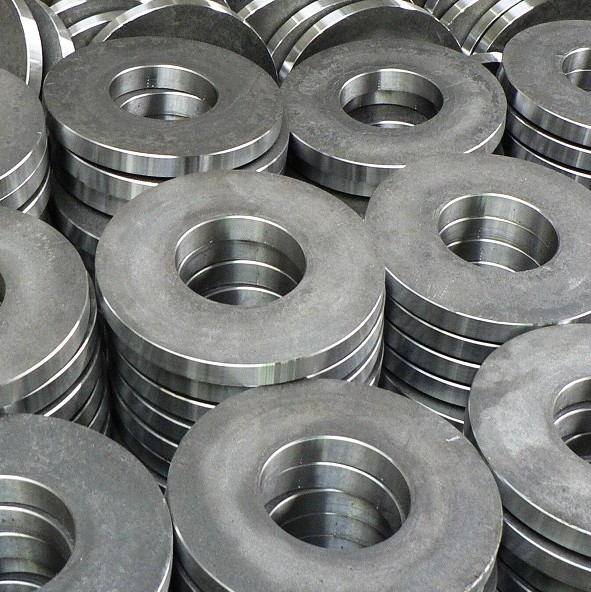

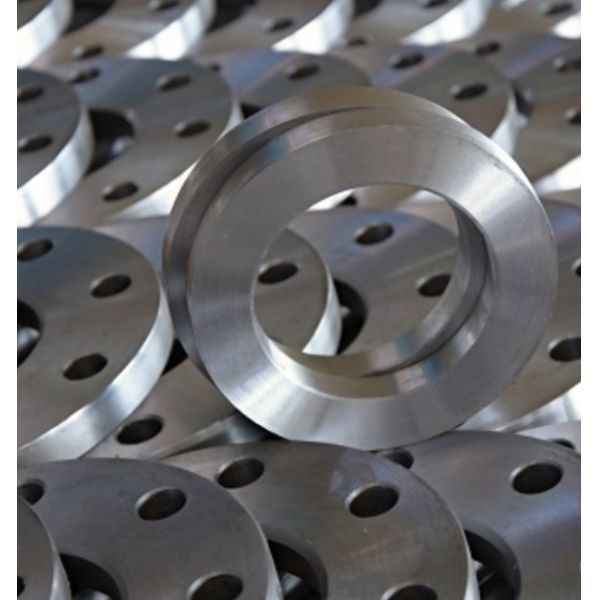

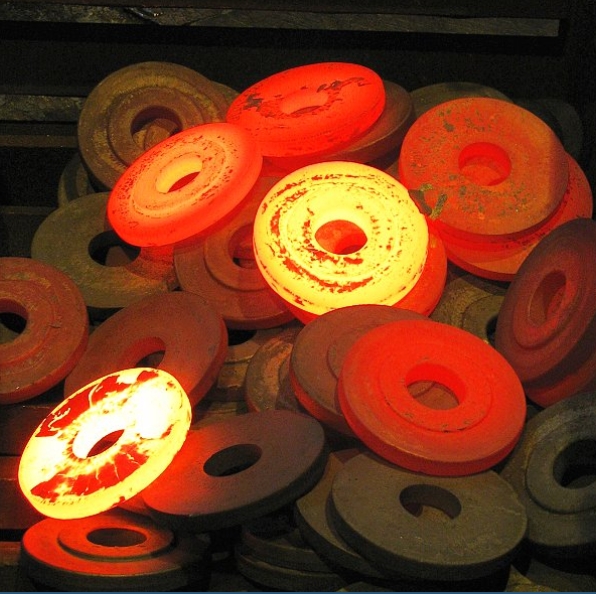

Duplex 2507 F53 Forged Steel Flange DIN2565/2566/2567/2568/2569 ASTM A182 S32750
Duplex 2507 F53 Forged Steel Flange DIN2565/2566/2567/2568/2569 ASTM A182 S32750
Duplex 2507 F53 Forged Steel Flange DIN2565/2566/2567/2568/2569 ASTM A182 S32750
Duplex 2507 F53 Forged Steel Flange DIN2565/2566/2567/2568/2569 ASTM A182 S32750
Duplex 2507 F53 Forged Steel Flange DIN2565/2566/2567/2568/2569 ASTM A182 S32750
Duplex 2507 F53 Forged Steel Flange DIN2565/2566/2567/2568/2569 ASTM A182 S32750
Duplex 2507 F53 Forged Steel Flange DIN2565/2566/2567/2568/2569 ASTM A182 S32750
Duplex 2507 F53 Forged Steel Flange DIN2565/2566/2567/2568/2569 ASTM A182 S32750
Duplex 2507 F53 Forged Steel Flange DIN2565/2566/2567/2568/2569 ASTM A182 S32750
Duplex 2507 F53 Forged Steel Flange DIN2565/2566/2567/2568/2569 ASTM A182 S32750
Duplex 2507 F53 Forged Steel Flange DIN2565/2566/2567/2568/2569 ASTM A182 S32750
Duplex 2507 F53 Forged Steel Flange DIN2565/2566/2567/2568/2569 ASTM A182 S32750
Specifications
Standard :
DIN2565/2566/2567/2568/2569
Packaging Details :
standard exported packages
CE standard :
Standard EN1092-1 TYPE01
Material :
11 375.1, S235, P245GH, P265GH
Brand Name :
OK
Model Number :
1/2'' TO 80INCH
Certification :
CE
Place of Origin :
China
MOQ :
1 pcs
Price :
0.3 usd/pcs
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
10000 pcs in stock
Delivery Time :
5-8 working days
Description
Duplex 2507 F53 Forged Steel Flange DIN2565/2566/2567/2568/2569 ASTM A182 S32750 1.4410
Material Specifications
Grade: X2CrNiMoN25-7-4
Number: 1.4410
Classification: Austenitic-ferritic stainless steel - special grade
Density: 7.8 g/cm³
Applicable Standards
  • EN 10088-2:2005 - Stainless steels - Technical delivery conditions for sheet/plate and strip
  • EN 10088-3:2005 - Stainless steels - Technical delivery conditions for semi-finished products, bars, rods, wire, sections and bright products
  • EN 10028-7:2007 - Flat products made of steels for pressure purposes - Stainless steels
  • EN 10222-5:2000 - Steel forgings for pressure purposes - Martensitic, austenitic and austenitic-ferritic stainless steels
  • EN 10216-5:2014 - Seamless steel tubes for pressure purposes - Stainless steel tubes
  • EN 10217-7:2005 - Welded steel tubes for pressure purposes - Stainless steel tubes
  • EN 10296-2:2005 - Welded circular steel tubes for mechanical and general engineering purposes - Stainless steel
  • EN 10253-3:2008 - Butt-welding pipe fittings - Wrought austenitic and austenitic-ferritic (duplex) stainless steels
  • EN 10253-4:2008 - Butt-welding pipe fittings - Wrought austenitic and austenitic-ferritic (duplex) stainless steels
  • EN 10272:2007 - Stainless steel bars for pressure purposes
  • EN 10250-4:2000 - Open steel die forgings for general engineering purposes - Stainless steels
  • EN 10297-2:2005 - Seamless circular steel tubes for mechanical and general engineering purposes - Stainless steel
  • EN 10088-1:2005 - Stainless steels - List of stainless steels
  • EN 10088-5:2009 - Stainless steels - Technical delivery conditions for bars, rods, wire, sections and bright products
  • EN 10088-4:2009 - Stainless steels - Technical delivery conditions for sheet/plate and strip
Chemical Composition (%)
Element Content
C max 0.03
Si max 1
Mn max 2
Ni 6 - 8
P max 0.035
S max 0.015
Cr 24 - 26
Mo 3 - 4.5
N 0.24 - 0.35

Elements not listed in this table shall not be intentionally added to the steel without the agreement of the purchaser except for finishing the cast.

Mechanical Properties
Property Condition Value
Tensile Strength (Rm) +A 730-1000 MPa
Tensile Strength (Rm) +AT 800-1000 MPa
0.2% Proof Strength (Rp0.2) +A 530-550 MPa
0.2% Proof Strength (Rp0.2) +AT 500-550 MPa
Impact Energy (KV) Transverse +A +20°: 90J, -40°: 40J
Impact Energy (KV) Longitudinal +A +20°: 100-150J
Impact Energy (KV) Transverse +AT +20°: 100J, -40°: 40J
Impact Energy (KV) Longitudinal +AT +20°: 100-200J
Elongation at Fracture (A) +A 15-25%
Elongation at Fracture (A) Longitudinal +AT 20%
Brinell Hardness (HB) +A 290
Brinell Hardness (HB) +AT 310
Material Properties

Resistance to intergranular corrosion: in the delivery condition - yes; in the sensitized condition - yes

Equivalent Grades
Warning! Only for reference
EU EN USA France AFNOR Sweden SS
X2CrNiMoN25-7-4 S32750 Z3CND25-06Az 2328
Duplex 2507 F53 Forged Steel Flange DIN2565/2566/2567/2568/2569 ASTM A182 S32750
