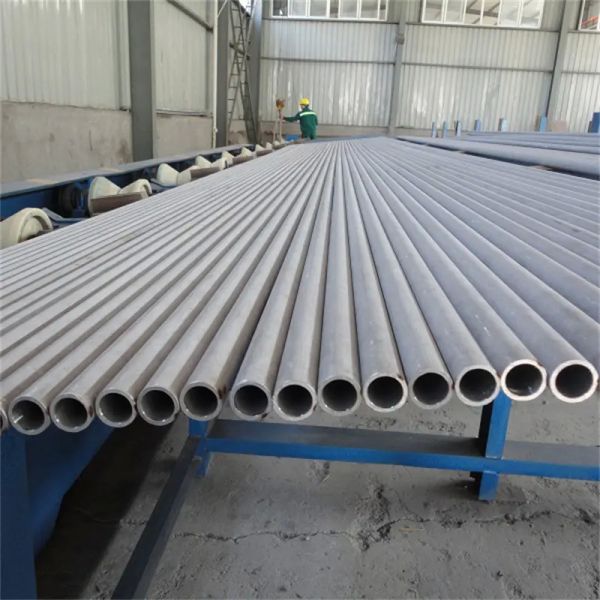

X1CrNiMoCuN 20-18-7 Heat Resistant Stainless Steel Pipe 1.4547 EN 10216-5 Compliant
X1CrNiMoCuN 20-18-7 Heat Resistant Stainless Steel Pipe 1.4547 EN 10216-5 Compliant
X1CrNiMoCuN 20-18-7 Heat Resistant Stainless Steel Pipe 1.4547 EN 10216-5 Compliant
X1CrNiMoCuN 20-18-7 Heat Resistant Stainless Steel Pipe 1.4547 EN 10216-5 Compliant
X1CrNiMoCuN 20-18-7 Heat Resistant Stainless Steel Pipe 1.4547 EN 10216-5 Compliant
X1CrNiMoCuN 20-18-7 Heat Resistant Stainless Steel Pipe 1.4547 EN 10216-5 Compliant
X1CrNiMoCuN 20-18-7 Heat Resistant Stainless Steel Pipe 1.4547 EN 10216-5 Compliant
X1CrNiMoCuN 20-18-7 Heat Resistant Stainless Steel Pipe 1.4547 EN 10216-5 Compliant
X1CrNiMoCuN 20-18-7 Heat Resistant Stainless Steel Pipe 1.4547 EN 10216-5 Compliant
X1CrNiMoCuN 20-18-7 Heat Resistant Stainless Steel Pipe 1.4547 EN 10216-5 Compliant
Specifications
Steel number :
1.4547
Standard :
EN 10216-5
Type :
stainless steel pipes
Material :
X1CrNiMoCuN 20-18-7
Description
X1CrNiMoCuN 20-18-7 Heat Resistant Stainless Steel Pipe EN 10216-5 1.4547 Steel Pipes
Material Specifications
Grade X1CrNiMoCuN20-18-7
Number 1.4547
Classification Austenitic stainless steel - special grade
Density 8 g/cm³
Applicable Standards
  • EN 10088-2: 2005 Stainless steels. Technical delivery conditions for sheet/plate and strip of corrosion resisting steels for general purposes
  • EN 10028-7: 2007 Flat products made of steels for pressure purposes. Stainless steels
  • EN 10217-7: 2005 Welded steel tubes for pressure purposes. Stainless steel tubes
  • EN 10296-2: 2005 Welded circular steel tubes for mechanical and general engineering purposes. Stainless steel. Technical delivery conditions
  • EN 10253-3: 2008 Butt-welding pipe fittings. Wrought austenitic and austenitic-ferritic (duplex) stainless steels without specific inspection requirements
  • EN 10253-4: 2008 Butt-welding pipe fittings. Wrought austenitic and austenitic-ferritic (duplex) stainless steels with specific inspection requirements
  • EN 10272: 2007 Stainless steel bars for pressure purposes
  • EN 10250-4: 2000 Open steel die forgings for general engineering purposes. Stainless steels
  • EN 10297-2: 2005 Seamless circular steel tubes for mechanical and general engineering purposes. Stainless steel. Technical delivery conditions
  • EN 10216-5: 2014 Seamless steel tubes for pressure purposes. Technical delivery conditions. Stainless steel tubes
  • EN 10088-1: 2005 Stainless steels. List of stainless steels
  • EN 10088-5: 2009 Stainless steels. Technical delivery conditions for bars, rods, wire, sections and bright products of corrosion resisting steels for construction purposes
  • EN 10088-4: 2009 Stainless steels. Technical delivery conditions for sheet/plate and strip of corrosion resisting steels for construction purposes
Chemical Composition (%) - EN 10088-2-2005
Element Composition
C max 0.02
Si max 0.7
Mn max 1
Ni 17.5 - 18.5
P max 0.03
S max 0.01
Cr 19.5 - 20.5
Mo 6 - 7
N 0.18 - 0.25
Cu 0.5 - 1
Mechanical Properties
Tensile Strength (+A)
650-850 MPa
Tensile Strength (+AT)
650-850 MPa
0.2% Proof Strength (+AT)
300 MPa
0.2% Proof Strength (+A)
300-340 MPa
Impact Energy Transverse (+A)
+20°C: 60 J
-196°C: 60 J
Impact Energy Longitudinal (+A)
+20°C: 100 J
Elongation at Fracture (+A)
30-40%
Elongation Transverse (+AT)
30%
Elongation Longitudinal (+AT)
35%
Brinell Hardness (+A)
260 HB
Brinell Hardness (+AT)
220 HB
Material Properties
Intergranular Corrosion Resistance
Delivery condition: Yes
Sensitized condition: Yes
Minimum Operating Temperature
-196°C
Equivalent Grades
Warning! Only for reference
EU EN USA Sweden SS
X1CrNiMoCuN20-18-7 S31254 2378
