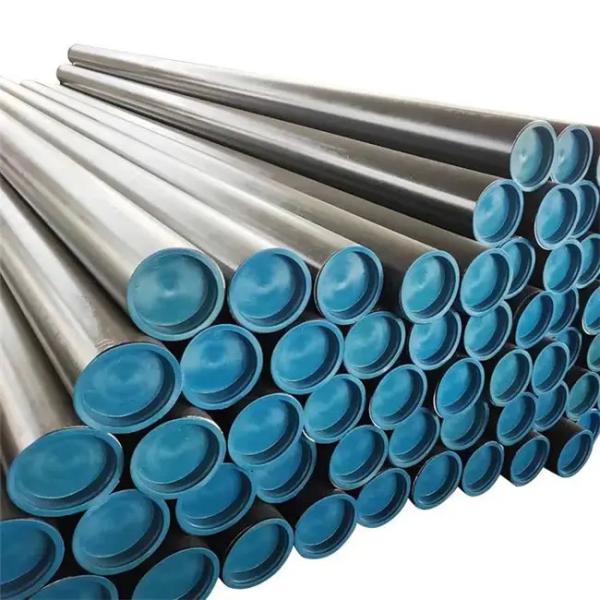

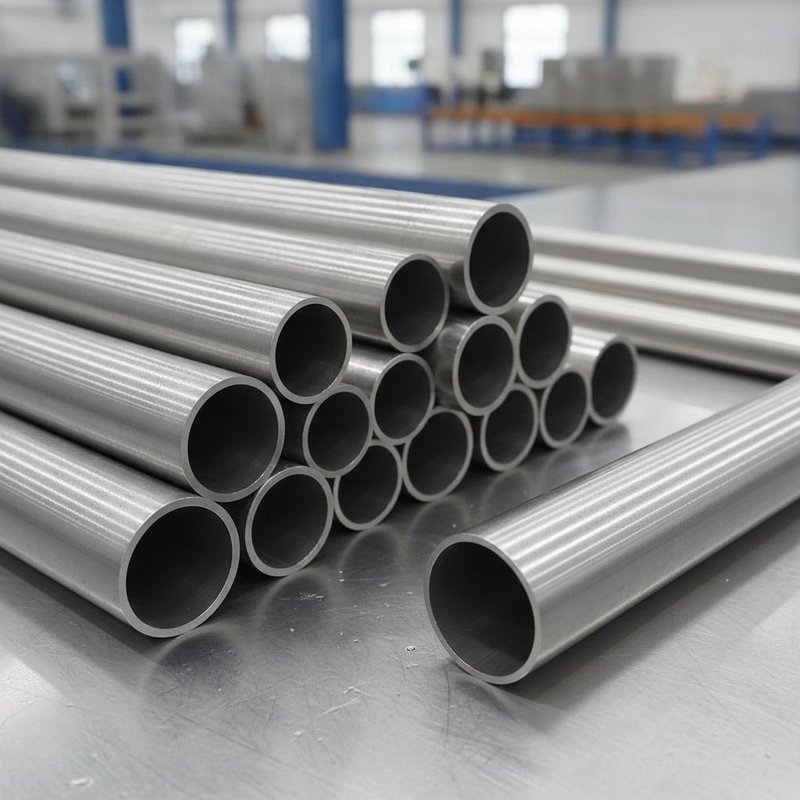

E355 E235 Cold Drawn Alloy Steel Seamless Pipes for Hydraulic and Pneumatic Applications
E355 E235 Cold Drawn Alloy Steel Seamless Pipes for Hydraulic and Pneumatic Applications
E355 E235 Cold Drawn Alloy Steel Seamless Pipes for Hydraulic and Pneumatic Applications
E355 E235 Cold Drawn Alloy Steel Seamless Pipes for Hydraulic and Pneumatic Applications
E355 E235 Cold Drawn Alloy Steel Seamless Pipes for Hydraulic and Pneumatic Applications
E355 E235 Cold Drawn Alloy Steel Seamless Pipes for Hydraulic and Pneumatic Applications
E355 E235 Cold Drawn Alloy Steel Seamless Pipes for Hydraulic and Pneumatic Applications
E355 E235 Cold Drawn Alloy Steel Seamless Pipes for Hydraulic and Pneumatic Applications
E355 E235 Cold Drawn Alloy Steel Seamless Pipes for Hydraulic and Pneumatic Applications
E355 E235 Cold Drawn Alloy Steel Seamless Pipes for Hydraulic and Pneumatic Applications
Specifications
STEEL :
Cylinder tubes for hydraulic and pneumatic applications
TYPE :
HP-Tubes
seamless :
seamless tubes
Material :
E355 E235 P460 (MOD) C45E
Description
E355 E235 Cylinder Tubes for Hydraulic and Pneumatic Applications
Precision cylinder tubes designed for hydraulic and pneumatic systems, available in seamless and welded configurations with various material grades and delivery conditions.
Product Overview
Cold forming increases the stability level of steel, allowing for reduced wall thickness compared to hot rolled pipes while achieving significant weight reduction of components.
Scope of Application
  • HP-Tubes: Cylinder tubes for hydraulic and pneumatic applications
  • HPZ-Tubes: Manufacture of cylinder jackets
  • HPK-Tubes: Pistons, telescopic cylinders, guide elements
  • HPS-Tubes: Additional application fields for hydraulic and pneumatic systems
Available Grades
  • E355, E235
  • P460 (MOD), C45E
  • P550 (MOD), C60E
  • P650 (MOD), 42CrMo4
  • P700 (MOD)
Modified grades are recommended for low temperature applications due to higher impact energy compared to standard qualities.
Delivery Conditions
+ SR (Stress Relieved), + N (Normalized)
Standard Dimensions
Standard Lengths: 5,000 to 7,000 mm (special lengths available on request)
Dimension Range:
  • Outside Diameter: 30 mm to 380 mm
  • Wall Thickness: 3 mm to 24 mm
  • Further dimensions available on request
Seamless Cold Drawn HPL-Tubes
Application: Hydraulic and pneumatic piping systems
Grades: E235, E355
Delivery Condition: + N (Normalized)
Surface Treatments: Phosphated, non-phosphated, galvanized, and high-performance passivated (Chrome-VI-free)
Standard Lengths: 6,000 to 6,050 mm (special lengths available on request)
Material Marking: Continuous marking over complete tube length
Additional Testing: Eddy current test
Dimension Range:
  • Outside Diameter: 4.0 mm to 80.0 mm
  • Wall Thickness: 0.5 mm to 12.5 mm
  • Further dimensions available on request
Product Specifications
Application Hydraulic Pipe
Special Pipe Thick Wall Pipe
Thickness 1 - 70 mm
Length 6m
Certificate CE
Processing Service Bending, Welding, Decoiling, Punching, Cutting
Product Name Carbon steel seamless pipe
Length 5.8-12m or customized
Thickness Custom available
Grade 45#
Technique Cold Drawn
Certification CE
Type Seamless Steel Pipe
E355 E235 Cold Drawn Alloy Steel Seamless Pipes for Hydraulic and Pneumatic Applications
