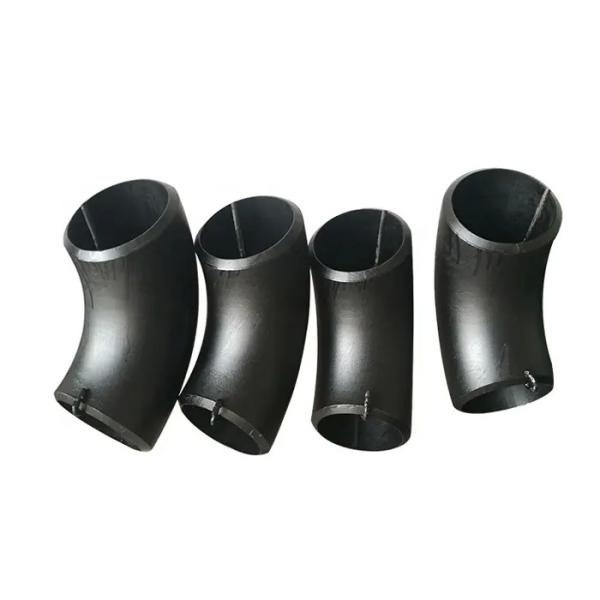

P235TR2 90 Degree Black Paint Seamless Elbow Butt Welded Carbon Steel Elbow
P235TR2 90 Degree Black Paint Seamless Elbow Butt Welded Carbon Steel Elbow
P235TR2 90 Degree Black Paint Seamless Elbow Butt Welded Carbon Steel Elbow
P235TR2 90 Degree Black Paint Seamless Elbow Butt Welded Carbon Steel Elbow
P235TR2 90 Degree Black Paint Seamless Elbow Butt Welded Carbon Steel Elbow
P235TR2 90 Degree Black Paint Seamless Elbow Butt Welded Carbon Steel Elbow
P235TR2 90 Degree Black Paint Seamless Elbow Butt Welded Carbon Steel Elbow
P235TR2 90 Degree Black Paint Seamless Elbow Butt Welded Carbon Steel Elbow
P235TR2 90 Degree Black Paint Seamless Elbow Butt Welded Carbon Steel Elbow
P235TR2 90 Degree Black Paint Seamless Elbow Butt Welded Carbon Steel Elbow
Specifications
Steel number :
P235TR2
Stanadard :
ASME B16.25
Pipe Fitting :
Pipe elbow
Material :
1.0225
Description
P235TR2 Pipe Tubes Fitting 90 Degree Black Paint Seamless (1.0255) Carbon Steel Elbow Butt Stainless Welded Elbow
Product Overview
P235TR2 Pipe Tubes Fitting 90 Degree Black Paint Seamless (1.0255) Carbon Steel Elbow Butt Stainless Welded Elbow

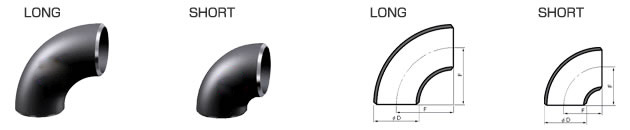

Name Pipe fittings seamless elbow, Butt welded elbow, Long elbow
Size Size 1/4" to 24"
Standard API5L, ASTM A106 Gr.B, ASTM A53 Gr.B, ANSI A210-1996, ANSI B36.10M-2004, ASTM A1020-2002, ASTM A179-1990, BS 3059-2, DIN 17175, DIN 1630, DIN 2448
Material GR.B, ST52, ST35, ST42, ST45, X42, X46, X52, X56, X60, X65, X70, SS304, SS316 etc.
Certificates API5L, ISO 9001:2008, SGS, BV, CCIC
Wall thickness SCH10, SCH20, SCH30, STD, SCH40, SCH60, SCH80, SCH100, SCH120, SCH160, XS, XXS
Surface Treatment Black paint, varnish, oil, galvanized, anti corrosion coatings
Marking Standard marking, or according to your request. Marking Method: Spray white paint
Pipe Ends Under 2 inch plain end. 2 inch and above Beveled. Plastic caps (small OD), Iron protector (large OD)
Pipe Length
  • Single Random Length and double Random Length
  • SRL: 3M-5.8M DRL: 10-11.8M or as clients requested length
  • Fixed length (5.8m, 6m, 12m)
Packaging Loose package; Packaged in bundles (2Ton Max); bundled pipes with two slings at both ends for easy loading and discharging; End with Plastic caps; wooden cases
Test Chemical Component Analysis, Mechanical Properties, Technical Properties, Exterior Size Inspection, hydraulic testing, X-ray Test
Application Liquid delivery; Structure pipe; High and low pressure Boiler tube; Seamless steel tubes for petroleum cracking; oil pipe; gas pipe
Delivery Time 7-15 days
Advantages
  • Reasonable price with excellent quality
  • Abundant stock and prompt delivery
  • Rich supply and export experience, sincere service
  • Reliable forwarder, 2-hour away from port
Material Specifications
Grade P235TR2
Number 1.0255
Classification Non-alloy quality steel
Standard EN 10216-1: 2014 Seamless steel tubes for pressure purposes. Technical delivery conditions. Non-alloy steel tubes with specified room temperature properties
EN 10217-1: 2002 Welded steel tubes for pressure purposes. Non-alloy steel tubes with specified room temperature properties
EN 10253-2: 2007 Butt-welding pipe fittings. Non alloy and ferritic alloy steels with specific inspection requirements
Chemical Composition (%) - EN 10216-1-2014
CSiMnNiPSCrMoVNbTiAlCu-
max 0.16max 0.35max 1.2max 0.3max 0.025max 0.015max 0.3max 0.08max 0.02max 0.01max 0.04max 0.02max 0.3Cr+Cu+Mo+Ni < 0.7
Mechanical Properties
Nominal thickness (mm) Rm - Tensile strength (MPa)
to 60 360-500
Nominal thickness (mm) to 16 16 - 40 40 - 60
ReH - Minimum yield strength (MPa) 235 225 215
KV - Impact energy (J) transverse 0° - 27
KV - Impact energy (J) longitudinal 0° - 40 | -10° - 28
A - Min. elongation at fracture (%) longitudinal 25
A - Min. elongation at fracture (%) transverse 23
Mechanical Properties Legend
ReH Minimum yield strength / Mindestwert der oberen Streckgrenze / Limite d'elasticité minimale
Rm Tensile strength / Zugfestigkeit / Résistance à la traction
A Minimum elongation / Mindestwert der Bruchdehnung / Allongement minimal
J Notch impact test / Kerbschlagbiegeversuch / Essai de flexion par choc
Heat Treatment Conditions
+ASoft annealed +ACAnnealed to achieve spheroidization of the carbides
+ARAs rolled +ATSolution annealed
+CCold drawn / hard +CRCold rolled
+FPTreated to ferrite-pearlite structure and hardness range +IIsothermal annealing
+LCCold drawn / soft +MThermo mechanical rolling
+NNormalized +NTNormalized and tempered
+PPrecipitation hardened +PEPeeled
+QAAir quenched and tempered +QLLiquid quenched and tempered
+QTQuenched and tempered +STreated to improve shearability
+SHAs rolled and turned +SRCold drawn and stress relieved
+TTempered +THTreated to hardness range
+WWWarm worked +UUntreated
P235TR2 90 Degree Black Paint Seamless Elbow Butt Welded Carbon Steel Elbow
