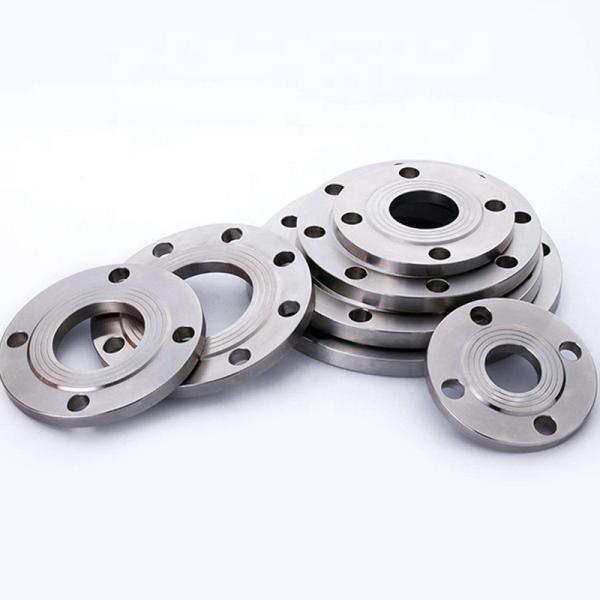

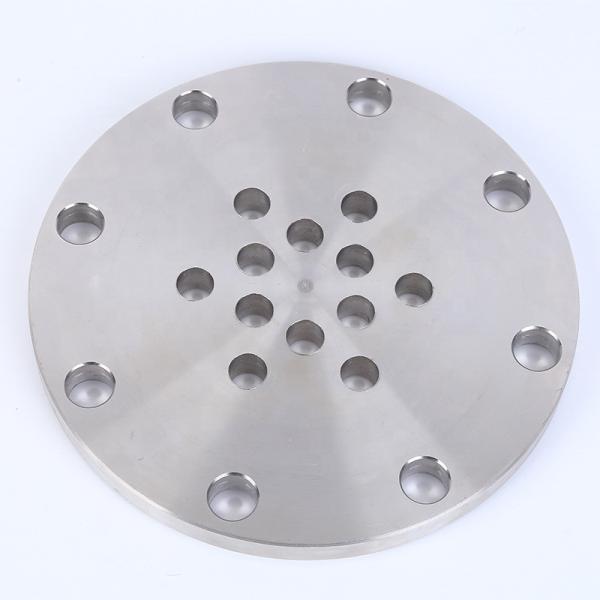

10CrMo5-5 SO Flange 1.7338 EN1092-1 Forged Steel Flange
10CrMo5-5 SO Flange 1.7338 EN1092-1 Forged Steel Flange
10CrMo5-5 SO Flange 1.7338 EN1092-1 Forged Steel Flange
10CrMo5-5 SO Flange 1.7338 EN1092-1 Forged Steel Flange
10CrMo5-5 SO Flange 1.7338 EN1092-1 Forged Steel Flange
10CrMo5-5 SO Flange 1.7338 EN1092-1 Forged Steel Flange
10CrMo5-5 SO Flange 1.7338 EN1092-1 Forged Steel Flange
10CrMo5-5 SO Flange 1.7338 EN1092-1 Forged Steel Flange
10CrMo5-5 SO Flange 1.7338 EN1092-1 Forged Steel Flange
10CrMo5-5 SO Flange 1.7338 EN1092-1 Forged Steel Flange
Specifications
Steel Number :
1.7338
Standard :
EN1092-1 Type 01
Flange face :
ff, rf
Material :
10CrMo5-5
Description
10CrMo5-5 SO Flange 1.7338 En1092-1 Plate Steel Forged Flanges
10CrMo5-5 SO flange 1.7338 so plate en1092-1 plate Steel forged flanges en1092-1 so flange
Material Specifications
Grade 10CrMo5-5
Number 1.7338
Classification Alloy special steel
Standard EN 10216-2: 2014 Seamless steel tubes for pressure purposes. Technical delivery conditions. Non-alloy and alloy steel tubes with specified elevated temperature properties
EN 10253-2: 2007 Butt-welding pipe fittings. Non alloy and ferritic alloy steels with specific inspection requirements
Chemical Composition (%) - EN 10216-2-2014
C Si Mn Ni P S Cr Mo Al Cu
max 0.15 0.5 - 1 0.3 - 0.6 max 0.3 max 0.025 max 0.01 1 - 1.5 0.45 - 0.65 max 0.04 max 0.3
Mechanical Properties
Nominal thickness (mm) to 60
Rm - Tensile strength (MPa) (+NT) 410-560
Nominal thickness (mm) to 16 16 - 40 40 - 60
R p0.2 0.2% proof strength (MPa) (+NT) 275 275 265
KV - Impact energy (J) longitudinal +20° 40
KV - Impact energy (J) transverse +20° 27
A - Min. elongation at fracture (%) longitudinal (+NT) 22
A - Min. elongation at fracture (%) transverse (+NT) 20
Product Specifications
Pressure 150LBS-2500LBS
Standard ASME B16.9 DIN2616 DIN2615 DIN2605 BS 1640-3-1968 BS 1640-4-1968 JIS B2313 GOST17375 GOST17378 GB/T
Material Stainless Steel F304 304L 304H 316 316L 310 310S 321 321H 317 317L 347 347H 904L SS31803 2205 2507
Forming type Forged or as required
Main product Seamless & Welded steel pipe flange
10CrMo5-5 SO Flange 1.7338 EN1092-1 Forged Steel Flange
