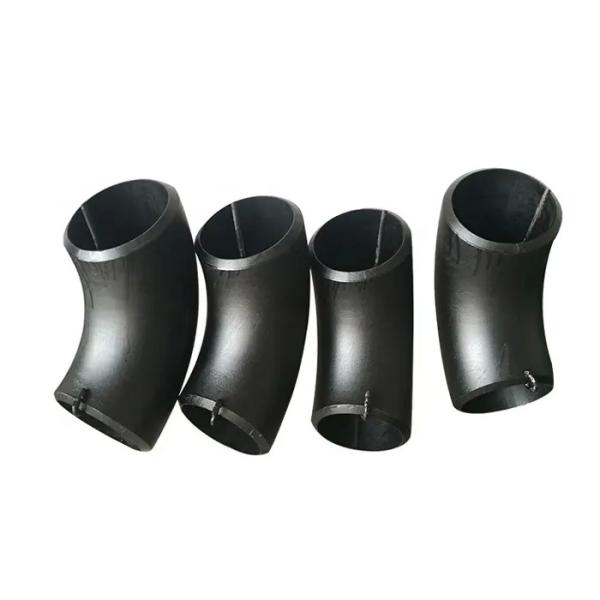

C35 1.0501 ASME B16.9 Butt Weld Fittings Seamless Steel Weld Butt Fittings
C35 1.0501 ASME B16.9 Butt Weld Fittings Seamless Steel Weld Butt Fittings
C35 1.0501 ASME B16.9 Butt Weld Fittings Seamless Steel Weld Butt Fittings
C35 1.0501 ASME B16.9 Butt Weld Fittings Seamless Steel Weld Butt Fittings
C35 1.0501 ASME B16.9 Butt Weld Fittings Seamless Steel Weld Butt Fittings
C35 1.0501 ASME B16.9 Butt Weld Fittings Seamless Steel Weld Butt Fittings
C35 1.0501 ASME B16.9 Butt Weld Fittings Seamless Steel Weld Butt Fittings
C35 1.0501 ASME B16.9 Butt Weld Fittings Seamless Steel Weld Butt Fittings
C35 1.0501 ASME B16.9 Butt Weld Fittings Seamless Steel Weld Butt Fittings
C35 1.0501 ASME B16.9 Butt Weld Fittings Seamless Steel Weld Butt Fittings
Specifications
Steel Number :
1.0501
Type :
weld butt fittings
Standard :
asme b16.9
Material :
C35
Description
C35 Butt Weld Fitting 1.0501 Weld Butt Fittings ASME B16.9 Seamless Steel Fittings
High-quality C35 butt weld fittings manufactured to ASME B16.9 standards, designed for seamless steel applications in industrial and manufacturing environments.
Material Specifications
Grade C35 butt weld fitting
Number 1.0501 weld butt fittings
Classification Non-alloy quality steel
Standards EN 10277-2: 2008 Bright steel products. Technical delivery conditions. Steels for general engineering purposes
EN 10083-2: 2006 Steels for quenching and tempering. Technical delivery conditions for non alloy steels
EN 10250-2: 2000 Open steel die forgings for general engineering purposes. Non-alloy quality and special steels
Product Specifications
Product Name ASME B16.9 A234 SCH 40 STD 90 Degree MS 1.5D Long Radius Butt Welded Carbon Steel Pipe Fittings Bend LR Seamless Elbows
Material
  • Carbon steel: 10#, 20#, 45#, ASTM A105 etc.
  • Alloy steel: ASTM A234 GR.WPB, ASTM A182 GR.F22/F11 CL2/CL3, ASTM A234 GR.WP11/WP22 CL.2/CL.1
  • Stainless steel: SS304, SS304L, SS304H, SS321, SS316, SS316L, SS310S, 904L, 254SMO, 253MA etc.
  • Duplex: 2205, 2507, F55 etc.
  • Nickel Alloy: Hastelloy C276, Inconel 601, Inconel 625, Inconel 718, Monel 400, Monel K500 etc.
  • Copper Nickel: CuNi 90/10, CuNi 70/30
Size 1/2"~50" (DN10~DN1200)
Standard ASME B16.9, ASME B16.11, EEMUA 146
Wall Thickness Sch5X~SchXXS
Chemical Composition (%) - EN 10277-2-2008
Cr + Mo + Ni = max 0.63
C Si Mn Ni P S Cr Mo
0.32 - 0.39 max 0.4 0.5 - 0.8 max 0.4 max 0.045 max 0.045 max 0.4 max 0.1
Mechanical Properties
Tensile Strength (Rm) - MPa
Nominal thickness (mm) to 16 16 - 100 100 - 250 250 - 500 500 - 1000
Rm - Tensile strength (MPa) (+N) 550 520 500 480 470
Nominal thickness (mm) 5 - 10 10 - 16 16 - 40 40 - 63 63 - 100
Rm - Tensile strength (MPa) (+C) 650-1000 600-950 580-880 550-840 520-800
Yield Strength - MPa
Nominal thickness (mm) to 16 16 - 100 100 - 250 250 - 500 500 - 1000
Re - Upper yield strength or Rp0.2 - 0.2% proof strength (MPa) (+N) 300 270 245 220 210
Nominal thickness (mm) 5 - 10 10 - 16 16 - 40 40 - 63 63 - 100
Rp0.2 0.2% proof strength (MPa) (+C) 510 420 320 300 270
Elongation at Fracture (%)
A - Min. elongation at fracture (%) transverse, (+N) 15
Nominal thickness (mm) 5 - 10 10 - 16 16 - 40 40 - 63 63 - 100
A - Min. elongation at fracture (%) (+C) 6 7 8 9 9
Nominal thickness (mm) to 16 16 - 100 100 - 250
A - Min. elongation Lo = 5,65 √ So (%) (+N) 18 19 19
Brinell hardness (HBW): (+SH) 154 - 207
Material Properties
Weldability: It can be welded quite well without any precautions.
Hardenability: Low hardenability; core quenching in water till a diameter of 12-15 mm; as far as bigger diameters are concerned, it hardens only till a certain depth, inversely proportional to diameter, like all nonalloy steels with medium-high carbon content.
Equivalent Grades
EU EN USA Germany DIN,WNr Japan JIS France AFNOR England BS
C35 1035
Gr.1035		 1.0501
C35		 S35C AF55C35
C35		 070M36
40HS
Italy UNI Spain UNE China GB Sweden SS Poland PN Czechia CSN
1C35
C35		 C35C C35k 1550 35 12040
Austria ONORM Russia GOST Inter ISO
C35 35
40		 C35
C35E4
C35 1.0501 ASME B16.9 Butt Weld Fittings Seamless Steel Weld Butt Fittings C35 1.0501 ASME B16.9 Butt Weld Fittings Seamless Steel Weld Butt Fittings
