API 5CT Standard OCTG Pipes with Copper Coated Surface for Oil Casing in Grade K55/J55/L80
API 5CT Standard OCTG Pipes with Copper Coated Surface for Oil Casing in Grade K55/J55/L80
API 5CT Standard OCTG Pipes with Copper Coated Surface for Oil Casing in Grade K55/J55/L80
API 5CT Standard OCTG Pipes with Copper Coated Surface for Oil Casing in Grade K55/J55/L80
API 5CT Standard OCTG Pipes with Copper Coated Surface for Oil Casing in Grade K55/J55/L80
API 5CT Standard OCTG Pipes with Copper Coated Surface for Oil Casing in Grade K55/J55/L80
API 5CT Standard OCTG Pipes with Copper Coated Surface for Oil Casing in Grade K55/J55/L80
API 5CT Standard OCTG Pipes with Copper Coated Surface for Oil Casing in Grade K55/J55/L80
API 5CT Standard OCTG Pipes with Copper Coated Surface for Oil Casing in Grade K55/J55/L80
API 5CT Standard OCTG Pipes with Copper Coated Surface for Oil Casing in Grade K55/J55/L80
API 5CT Standard OCTG Pipes with Copper Coated Surface for Oil Casing in Grade K55/J55/L80
API 5CT Standard OCTG Pipes with Copper Coated Surface for Oil Casing in Grade K55/J55/L80
API 5CT Standard OCTG Pipes with Copper Coated Surface for Oil Casing in Grade K55/J55/L80
API 5CT Standard OCTG Pipes with Copper Coated Surface for Oil Casing in Grade K55/J55/L80
Specifications
Grade :
K55, J55, L80-1 ,N80,C90,C95, P110, T95
Surface :
Copper Coated
Specification :
2 3/8"-4 1/2"*0.167"-0630"
Out diameter :
API J55, API K55, API L80,
Application :
Oil Pipe
Brand Name :
Best
Model Number :
114.3 - 508 mm
Certification :
API
Place of Origin :
China
MOQ :
1 Tons
Price :
600 usd/ton
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
100000Ton/Month
Delivery Time :
5-8 working days
Packaging Details :
bundle,,painting against corrosion, protective plastic caps, special packing can be offered by customer.
Standard :
API 5CT, API 5D
Description

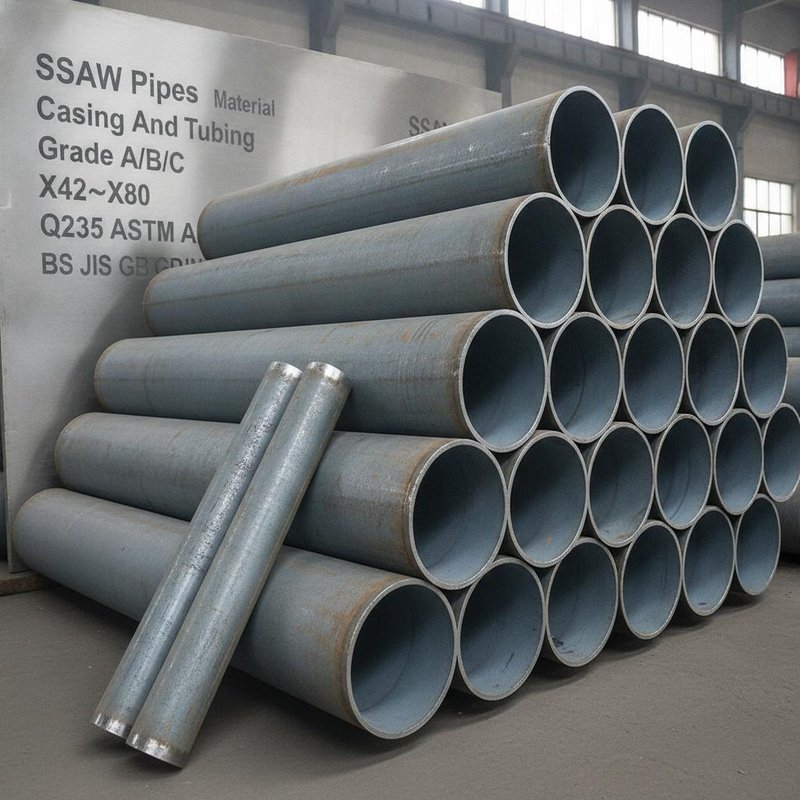

SSAW Pipes Material Casing And Tubing Grade A/B/C X42~X80 Q235 ASTM API BS JIS GB DIN
Product Overview
Product Name: OCTG (Oil Country Tubular Goods), Tubes Suitable for Conducting Combustible Materials
We supply OCTG tubes primarily for the petrochemical oil and gas industry, used for pipeline construction, installation, and maintenance work in both longitudinally welded and spirally welded types. These products can be combined with insulation and coatings.
Technical Specifications
Size Assortment: Ø 21.3-3500 mm
Standards: EN 10208-1, EN 10208-2, API 5CT, API 5D
Qualities/Grades: L245MB/NB, L290MB/NB, L360 MB/NB, L290 NB/MB, L415 NB/MB, L210GA, L235GA, L245GA, L290GA, L360GA, K55, J55, L80-1, N80, C90, C95, P110, T95, M65, E75, X95, G105, S135
Lengths: 4-13 (20) m
Product Types & Applications
Casing Pipe: Serves as walls of a well. Includes ordinary casing, anti-collapse casing, anti-corrosion casing, and high-strength casing.
Tubing Steel Pipe: Used for oil and gas extraction and transportation.
Drill Pipe: Used in drilling operations.
Detailed Specifications
Tubing:
  • OD: 2 3/8" - 4 1/2"
  • WT: 0.167" - 0.630"
  • Note: P - Plain end, N - Non upset, U - External upset, T&C - Threaded and coupled
Casing:
  • OD: 2 3/8" - 20"
  • WT: 0.205" - 0.5"
  • Note: P - Plain end, S - Short round thread, L - Long round thread
Drill Pipe:
  • OD: 2 3/8" - 5 1/2"
  • WT: 0.280" - 0.449"
  • Note: EU - External upset, IEU - Internal & External upset
  • Thread of tool joint are right-hand or left hand
Length Specifications
Type R1 R2 R3
Tubing 6.10 - 7.32 m 8.53 - 9.75 m 11.58 - 12.80 m
Casing 4.88 - 7.62 m 6.72 - 10.36 m 10.36 - 14.63 m
API Oil Pipe & Casing Specifications
Type Label (in) Outside Diameter (mm) Wall Thickness (mm) Grade Thread Type Length
Casing 4-1/2 114.30 5.21-8.56 H40-P110 STC LC BC 4.88-13.5m
5 127.00 5.59-12.70
5-1/2 139.70 6.20-22.22
6-5/8 168.28 7.32-12.06
7 177.80 5.87-22.22
Oil Pipe 2-3/8 60.32 4.24-8.53 H40-P110 NU EU 6.1-12.8m
2-7/8 73.02 5.51-11.18
3-1/2 88.90 5.49-13.46
4 101.60 5.74-15.49
4-1/2 114.30 6.88-16.00
Grade Specifications
Grade Yield Strength (MPa) Tensile Strength (MPa) Hardness
J55 379-522 >517
K55 379-552 >655
N80 552-758 >689
L80-1 552-655 >689 23-241
C90 621-724 >689 25.4-255
C95 655-758 >724
T95 655-758 >724 25.4-255
P110 758-965 >862

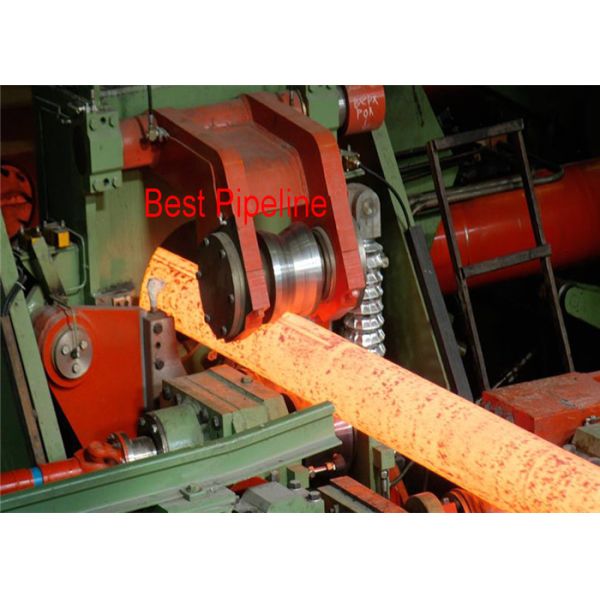

Product Image
API 5CT Standard OCTG Pipes with Copper Coated Surface for Oil Casing in Grade K55/J55/L80
