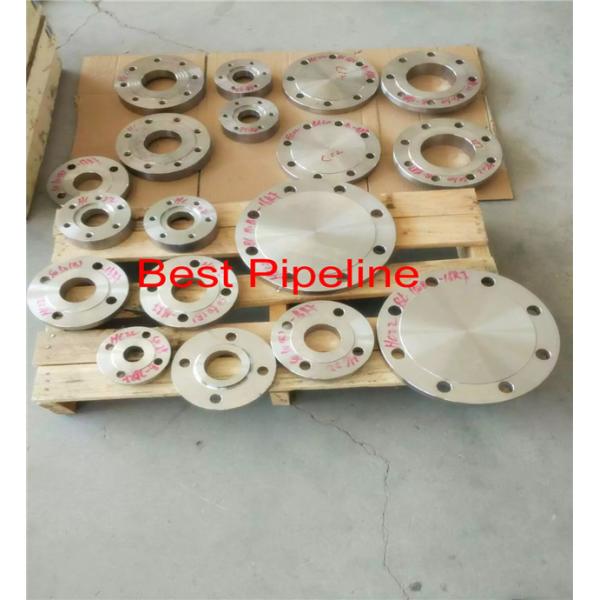

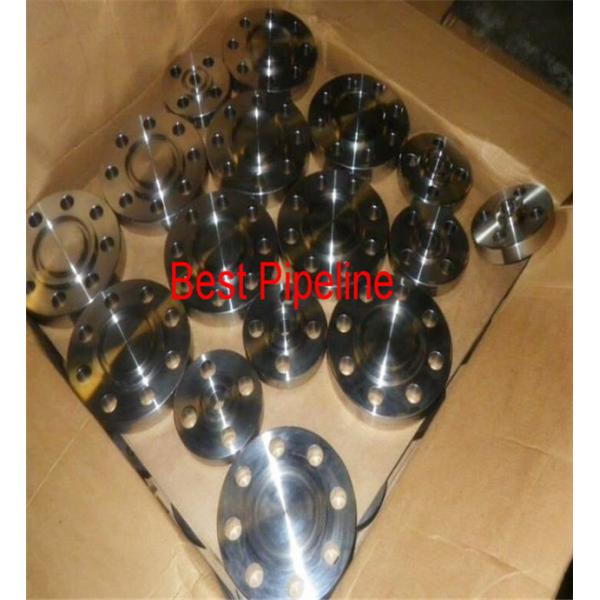

304L Forged Steel Flanges 300LBS Flat Face Lap Joint Flange UNI 2276-67
304L Forged Steel Flanges 300LBS Flat Face Lap Joint Flange UNI 2276-67
304L Forged Steel Flanges 300LBS Flat Face Lap Joint Flange UNI 2276-67
304L Forged Steel Flanges 300LBS Flat Face Lap Joint Flange UNI 2276-67
304L Forged Steel Flanges 300LBS Flat Face Lap Joint Flange UNI 2276-67
304L Forged Steel Flanges 300LBS Flat Face Lap Joint Flange UNI 2276-67
304L Forged Steel Flanges 300LBS Flat Face Lap Joint Flange UNI 2276-67
304L Forged Steel Flanges 300LBS Flat Face Lap Joint Flange UNI 2276-67
304L Forged Steel Flanges 300LBS Flat Face Lap Joint Flange UNI 2276-67
304L Forged Steel Flanges 300LBS Flat Face Lap Joint Flange UNI 2276-67
304L Forged Steel Flanges 300LBS Flat Face Lap Joint Flange UNI 2276-67
304L Forged Steel Flanges 300LBS Flat Face Lap Joint Flange UNI 2276-67
Specifications
Pressure :
300LBS
Model Number :
1/2''-48''
Type :
Forged Steel Flanges
Material :
304L
Place of Origin :
China
Brand Name :
Best
Certification :
API/CE/ISO/PED
MOQ :
1 Pcs
Price :
1 usd/pcs
Payment Terms :
L/C/ TT
Supply Ability :
100000 Ton/Year
Delivery Time :
5-8 working days
Packaging Details :
Standard export seaworthy package,by wooden box,or as required
Name :
Lap joint Flange
Description
Flat Face Forged Steel Flanges UNI 2276-67 UNI 6084-67 UNI 6083-67 UNI 2278-67 UNI 2277-67
PLANE FLANGES - Normally flat face supplied UNI 2276-67 UNI 6084-67 UNI 6083-67 UNI 2278-67 UNI 2277-67
Product Name
Lap Joint Flange
Pressure Rating
300 lbs
Material
304L Made by Forged Steel Flanges
A flange is defined as a plate type device, normally round, that is attached to the end of a pipe, fitting, valve or other object to facilitate the assembly and disassembly of a piping system.
Flanges are manufactured in all the different materials to match the material of the pipe and fittings to which they are being attached. While some flanges are made of Cast Iron, the vast majority of flanges are forged carbon steel.
Forged steel flanges are made in seven primary ratings: Class 150, Class 300, Class 400, Class 600, Class 900, Class 1500 & Class 2500
Flange Types
  • Weld Neck Flanges
  • Slip-On Flanges
  • Lap Joint Flanges
  • Threaded Flanges
  • Socket Weld Flanges
  • Blind Flanges
Forged Flanges Specifications
Size
½" TO 54"
Pressure Rating
150#, 300#, 600#, 900#, 1500#, 2500#
Available Materials
Carbon Steel
A-105, A-350 LF2 [NACE + HIC] etc.
Alloy Steel
F-5, F-9, F-11, F-22, F-91 etc.
Stainless Steel
SS 304, SS 304L SS316, SS 316L, SS 316Ti, SS 321, SS 347, SS 304H, 317L, 347H, Etc.
Duplex SS
F-51, F-55
High Strength Steel
A694 Gr 52, 60, 65, 70, AISI 4130, 4140
Nickel Alloys
Monel 400, Inconel 625, Inconel 825, Alloy 20, etc.
Standards
ASME B 16.5, ASME B 16.47, API 6A
Type
SORF, WNRF, SWRF, BLRF, Threaded etc.
Specials
Spacers, Spectacle Blinds, Drip Rings, RTJ, Tongue, Groove, Orifice, etc.
150lb Flange Dimensions
Nominal Bore Pipe OD A Flange dia. B Raised Face dia. D Flange Thickness T Welding Neck Slip-on Screwed Socket-weld Bolt PCD No. of Bolts Bolt Hole dia.
1521.488.934.911.147.615.960.3415.9
2027.098.442.912.752.415.969.8415.9
2534.1107.950.814.355.617.579.4415.9
3242.9117.563.515.957.120.688.9415.9
4048.4127.073.017.561.922.298.4415.9
5060.3152.492.119.063.525.4120.6419.0
6573.0177.8104.822.269.828.6139.7419.0
8088.9190.5127.023.869.830.2152.4419.0
90101.6215.9139.723.871.431.7177.8819.0
100114.3228.6157.223.876.233.3190.5819.0
125141.3254.0185.723.888.936.5215.9822.2
150165.1279.4215.925.488.939.7241.3822.2
168.3279.4215.925.488.939.7241.3822.2
200219.1342.9269.928.6101.644.4298.4822.2
250273.1406.4323.830.2101.649.2361.91225.4
300323.9482.6381.031.7114.355.6431.81225.4
350355.6533.4412.734.9127.057.1476.21228.6
400406.4596.9469.936.5127.063.5539.71628.6
450457.2635.0533.439.7139.768.3577.81631.7
