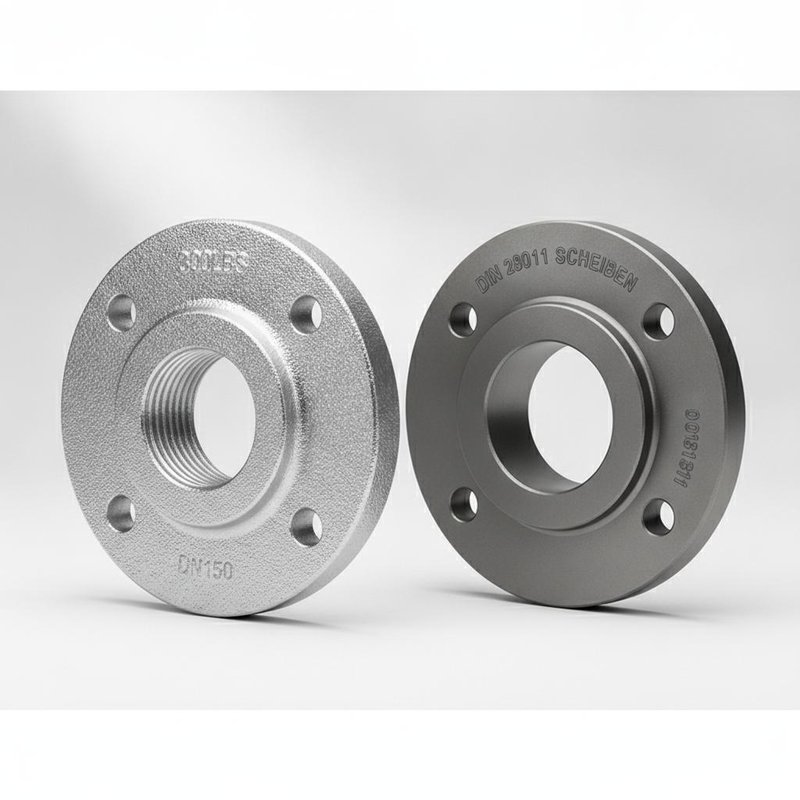

300LBS Pressure 304L Material Lap Joint Flange DIN 28011 Standard Forged Steel Tank Flange
300LBS Pressure 304L Material Lap Joint Flange DIN 28011 Standard Forged Steel Tank Flange
300LBS Pressure 304L Material Lap Joint Flange DIN 28011 Standard Forged Steel Tank Flange
300LBS Pressure 304L Material Lap Joint Flange DIN 28011 Standard Forged Steel Tank Flange
300LBS Pressure 304L Material Lap Joint Flange DIN 28011 Standard Forged Steel Tank Flange
300LBS Pressure 304L Material Lap Joint Flange DIN 28011 Standard Forged Steel Tank Flange
300LBS Pressure 304L Material Lap Joint Flange DIN 28011 Standard Forged Steel Tank Flange
300LBS Pressure 304L Material Lap Joint Flange DIN 28011 Standard Forged Steel Tank Flange
300LBS Pressure 304L Material Lap Joint Flange DIN 28011 Standard Forged Steel Tank Flange
300LBS Pressure 304L Material Lap Joint Flange DIN 28011 Standard Forged Steel Tank Flange
300LBS Pressure 304L Material Lap Joint Flange DIN 28011 Standard Forged Steel Tank Flange
300LBS Pressure 304L Material Lap Joint Flange DIN 28011 Standard Forged Steel Tank Flange
Specifications
Pressure :
300LBS
Material :
304L
Place of Origin :
China
Model Number :
1/2''-48''
Type :
Forged Steel Flanges
Name :
Lap joint Flange
Brand Name :
Best
Certification :
API/CE/ISO/PED
MOQ :
1 Pcs
Price :
1 usd/pcs
Payment Terms :
L/C/ TT
Supply Ability :
100000 Ton/Year
Delivery Time :
5-8 working days
Packaging Details :
Standard export seaworthy package,by wooden box,or as required
Description
Pressure 300LBS Galvanized Pipe Flange, Forged Steel Tank Flanges DIN 28011 Scheiben

Klöpperböden DIN 28011 Scheiben, flach gewölbt St. 37 Rohrschellen Rohrschellen, Normalausführung

Product Name: Lap Joint Flange

Pressure: 300 lbs

Material: 304L Made by Forged Steel Flanges

About Flanges

A flange is defined as a plate type device, normally round, that is attached to the end of a pipe, fitting, valve or other object to facilitate the assembly and disassembly of a piping system.

Flanges are manufactured in all the different materials to match the material of the pipe and fittings to which they are being attached. While some flanges are made of Cast Iron, the vast majority of flanges are forged carbon steel.

Forged steel flanges are made in seven primary ratings: Class 150, Class 300, Class 400, Class 600, Class 900, Class 1500 & Class 2500

Flange Types
  • Weld Neck Flanges
  • Slip-On Flanges
  • Lap Joint Flanges
  • Threaded Flanges
  • Socket Weld Flanges
  • Blind Flanges
Forged Flanges Specifications
Size
½" TO 54"
Pressure Rating
150#, 300#, 600#, 900#, 1500#, 2500#
Standards
ASME B 16.5, ASME B 16.47, API 6A
Type
SORF, WNRF, SWRF, BLRF, Threaded etc.
Material Specifications
Carbon Steel
A-105, A-350 LF2 [NACE + HIC] etc.
Alloy Steel
F-5, F-9, F-11, F-22, F-91 etc.
Stainless Steel
SS 304, SS 304L SS316, SS 316L, SS 316Ti, SS 321, SS 347, SS 304H, 317L, 347H, Etc.
Duplex SS
F-51, F-55
High Strength Steel
A694 Gr 52, 60, 65, 70, AISI 4130, 4140
Nickel Alloys
Monel 400, Inconel 625, Inconel 825, Alloy 20, etc.
150lb Flange Dimensions
Nominal Bore Pipe OD A Flange dia. B Raised Face dia. D Flange Thickness T Welding Neck Slip-on Screwed Socket-weld Bolt PCD No. of Bolts Bolt Hole dia.
1521.488.934.911.147.615.960.3415.9
2027.098.442.912.752.415.969.8415.9
2534.1107.950.814.355.617.579.4415.9
3242.9117.563.515.957.120.688.9415.9
4048.4127.073.017.561.922.298.4415.9
5060.3152.492.119.063.525.4120.6419.0
6573.0177.8104.822.269.828.6139.7419.0
8088.9190.5127.023.869.830.2152.4419.0
90101.6215.9139.723.871.431.7177.8819.0
100114.3228.6157.223.876.233.3190.5819.0
125141.3254.0185.723.888.936.5215.9822.2
150165.1279.4215.925.488.939.7241.3822.2
150168.3279.4215.925.488.939.7241.3822.2
200219.1342.9269.928.6101.644.4298.4822.2
250273.1406.4323.830.2101.649.2361.91225.4
300323.9482.6381.031.7114.355.6431.81225.4
350355.6533.4412.734.9127.057.1476.21228.6
400406.4596.9469.936.5127.063.5539.71628.6
450457.2635.0533.439.7139.768.3577.81631.7
