Specifications
Pressure :
300LBS
Model Number :
1/2''-48''
Type :
Forged Steel Flanges
Material :
304L
Place of Origin :
China
Brand Name :
Best
Certification :
API/CE/ISO/PED
MOQ :
1 Pcs
Price :
1 usd/pcs
Payment Terms :
L/C/ TT
Supply Ability :
100000 Ton/Year
Delivery Time :
5-8 working days
Packaging Details :
Standard export seaworthy package,by wooden box,or as required
Name :
Lap joint Flange
Description
BRIDAS PLANAS PARA SOLDAR DIN 2576 PN 10
Product Specifications
Material
St 37-2 según DIN 17100
Product Name
Lap Joint Flange
Pressure Rating
300 lbs
Material Grade
304L
Manufacturing
Forged Steel Flanges
Product Overview

A flange is defined as a plate type device, normally round, that is attached to the end of a pipe, fitting, valve or other object to facilitate the assembly and disassembly of a piping system.

Flanges are manufactured in all the different materials to match the material of the pipe and fittings to which they are being attached. While some flanges are made of Cast Iron, the vast majority of flanges are forged carbon steel.

Pressure Classifications

Forged steel flanges are made in seven primary ratings:

  • Class 150
  • Class 300
  • Class 400
  • Class 600
  • Class 900
  • Class 1500
  • Class 2500
Flange Types
  • Weld Neck Flanges
  • Slip-On Flanges
  • Lap Joint Flanges
  • Threaded Flanges
  • Socket Weld Flanges
  • Blind Flanges
Forged Flanges Specifications
Size Range
½" TO 54"
Pressure Ratings
150#, 300#, 600#, 900#, 1500#, 2500#
Standards
ASME B 16.5, ASME B 16.47, API 6A
Types
SORF, WNRF, SWRF, BLRF, Threaded
Available Materials
  • Carbon Steel: A-105, A-350 LF2 [NACE + HIC] etc.
  • Alloy Steel: F-5, F-9, F-11, F-22, F-91 etc.
  • Stainless Steel: SS 304, SS 304L, SS316, SS 316L, SS 316Ti, SS 321, SS 347, SS 304H, 317L, 347H
  • Duplex SS: F-51, F-55
  • High Strength Steel: A694 Gr 52, 60, 65, 70, AISI 4130, 4140
  • Nickel Alloys: Monel 400, Inconel 625, Inconel 825, Alloy 20
150lb Flange Dimensions
Nominal Bore Pipe OD A Flange dia. B Raised Face dia. D Flange Thickness T Welding Neck Slip-on Screwed Socket-weld Bolt PCD No. of Bolts Bolt Hole dia.
1521.488.934.911.147.615.960.3415.9
2027.098.442.912.752.415.969.8415.9
2534.1107.950.814.355.617.579.4415.9
3242.9117.563.515.957.120.688.9415.9
4048.4127.073.017.561.922.298.4415.9
5060.3152.492.119.063.525.4120.6419.0
6573.0177.8104.822.269.828.6139.7419.0
8088.9190.5127.023.869.830.2152.4419.0
90101.6215.9139.723.871.431.7177.8819.0
100114.3228.6157.223.876.233.3190.5819.0
125141.3254.0185.723.888.936.5215.9822.2
150165.1279.4215.925.488.939.7241.3822.2
150168.3279.4215.925.488.939.7241.3822.2
200219.1342.9269.928.6101.644.4298.4822.2
250273.1406.4323.830.2101.649.2361.91225.4
300323.9482.6381.031.7114.355.6431.81225.4
350355.6533.4412.734.9127.057.1476.21228.6
400406.4596.9469.936.5127.063.5539.71628.6
450457.2635.0533.439.7139.768.3577.81631.7
Product Images

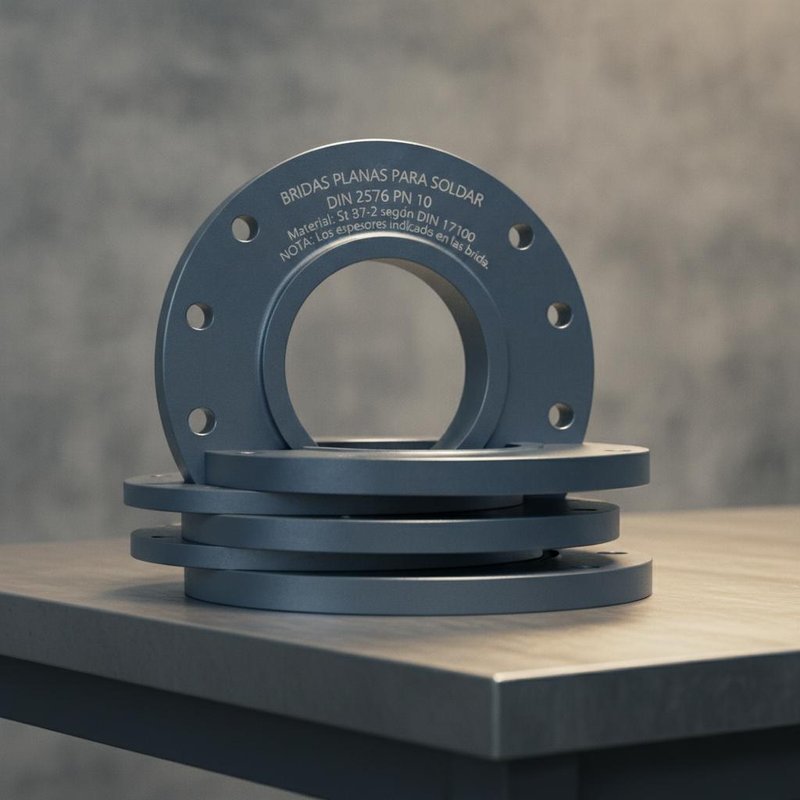

304L Material Lap Joint Flange with 300LBS Pressure and DIN 2576 PN 10 Forged Steel Flange 304L Material Lap Joint Flange with 300LBS Pressure and DIN 2576 PN 10 Forged Steel Flange
