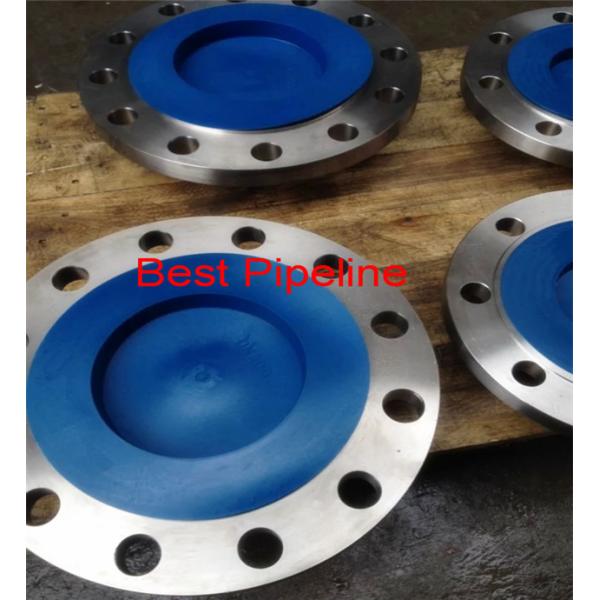

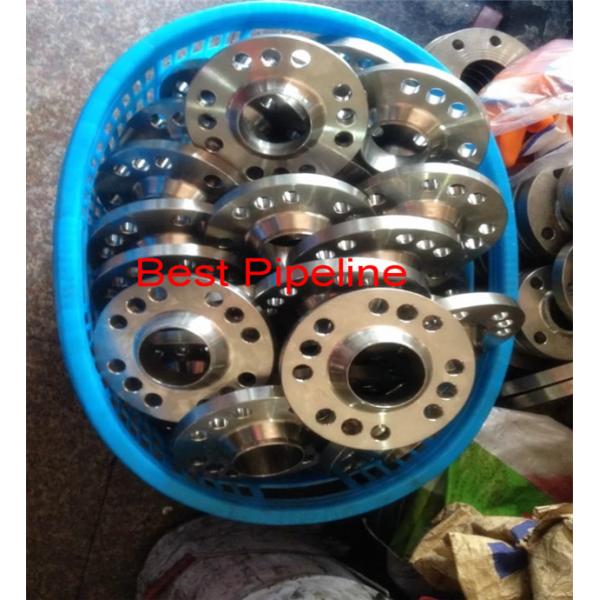

PN 10 304L Material 300LBS Pressure Forged Steel Flanges DIN 2642 Lap Joint Flange
PN 10 304L Material 300LBS Pressure Forged Steel Flanges DIN 2642 Lap Joint Flange
PN 10 304L Material 300LBS Pressure Forged Steel Flanges DIN 2642 Lap Joint Flange
PN 10 304L Material 300LBS Pressure Forged Steel Flanges DIN 2642 Lap Joint Flange
PN 10 304L Material 300LBS Pressure Forged Steel Flanges DIN 2642 Lap Joint Flange
PN 10 304L Material 300LBS Pressure Forged Steel Flanges DIN 2642 Lap Joint Flange
PN 10 304L Material 300LBS Pressure Forged Steel Flanges DIN 2642 Lap Joint Flange
PN 10 304L Material 300LBS Pressure Forged Steel Flanges DIN 2642 Lap Joint Flange
PN 10 304L Material 300LBS Pressure Forged Steel Flanges DIN 2642 Lap Joint Flange
PN 10 304L Material 300LBS Pressure Forged Steel Flanges DIN 2642 Lap Joint Flange
Specifications
Pressure :
300LBS
Model Number :
1/2''-48''
Type :
Forged Steel Flanges
Material :
304L
Place of Origin :
China
Brand Name :
Best
Certification :
API/CE/ISO/PED
MOQ :
1 Pcs
Price :
1 usd/pcs
Payment Terms :
L/C/ TT
Supply Ability :
100000 Ton/Year
Delivery Time :
5-8 working days
Packaging Details :
Standard export seaworthy package,by wooden box,or as required
Name :
Lap joint Flange
Description

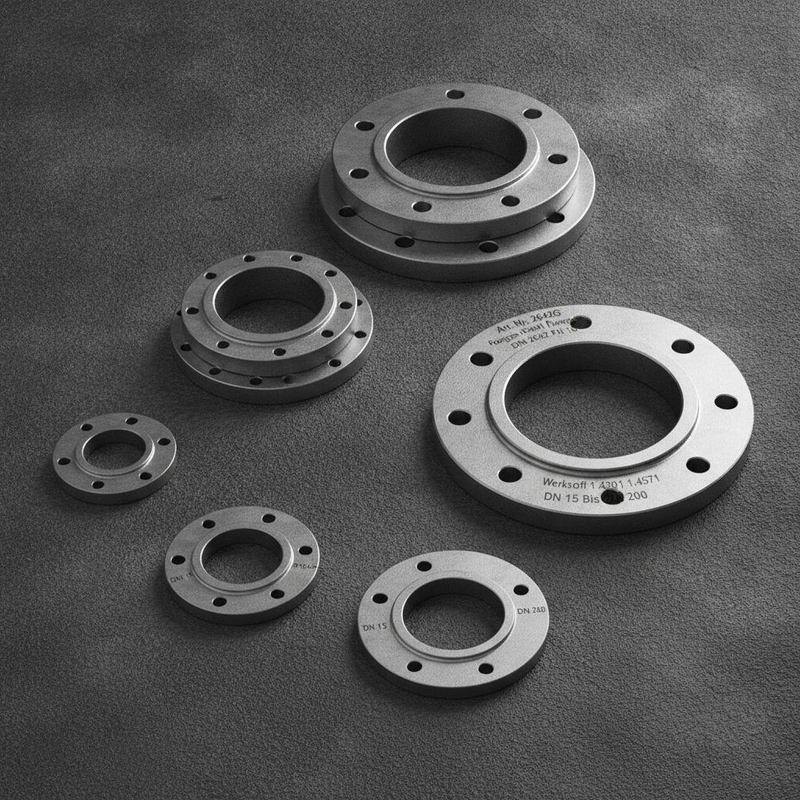

Art. Nr. 2642G Forged Steel Flanges DIN 2642 PN 10

Material: 1.4301 / 1.4571 | Size Range: DN 15 to DN 200

Product Specifications

Product Name: Lap Joint Flange

Pressure Rating: 300 lbs

Material: 304L

Manufacturing: Forged Steel Flanges

About Flanges

A flange is a plate-type device, typically round, that attaches to the end of pipes, fittings, valves, or other components to facilitate assembly and disassembly of piping systems.

Flanges are manufactured in various materials to match the pipes and fittings they connect. While some are made of cast iron, the majority are forged carbon steel.

Pressure Classifications

Forged steel flanges are available in seven primary pressure ratings:

  • Class 150
  • Class 300
  • Class 400
  • Class 600
  • Class 900
  • Class 1500
  • Class 2500
Flange Types
  • Weld Neck Flanges
  • Slip-On Flanges
  • Lap Joint Flanges
  • Threaded Flanges
  • Socket Weld Flanges
  • Blind Flanges
Forged Flanges Specifications

Size Range: ½" to 54"

Pressure Ratings: 150#, 300#, 600#, 900#, 1500#, 2500#

Available Materials
  • Carbon Steel: A-105, A-350 LF2 [NACE + HIC], etc.
  • Alloy Steel: F-5, F-9, F-11, F-22, F-91, etc.
  • Stainless Steel: SS 304, SS 304L, SS 316, SS 316L, SS 316Ti, SS 321, SS 347, SS 304H, 317L, 347H, etc.
  • Duplex SS: F-51, F-55
  • High Strength Steel: A694 Gr 52, 60, 65, 70, AISI 4130, 4140
  • Nickel Alloys: Monel 400, Inconel 625, Inconel 825, Alloy 20, etc.

Standards: ASME B 16.5, ASME B 16.47, API 6A

Types: SORF, WNRF, SWRF, BLRF, Threaded, etc.

Special Components: Spacers, Spectacle Blinds, Drip Rings, RTJ, Tongue, Groove, Orifice, etc.

150lb Flange Dimensions (Length through Hub Y)
Nominal Bore Pipe OD A Flange dia. B Raised Face dia. D Flange Thickness T Welding Neck Slip-on Screwed Socket-weld Bolt PCD No. of Bolts Bolt Hole dia.
1521.488.934.911.147.615.960.3415.9
2027.098.442.912.752.415.969.8415.9
2534.1107.950.814.355.617.579.4415.9
3242.9117.563.515.957.120.688.9415.9
4048.4127.073.017.561.922.298.4415.9
5060.3152.492.119.063.525.4120.6419.0
6573.0177.8104.822.269.828.6139.7419.0
8088.9190.5127.023.869.830.2152.4419.0
90101.6215.9139.723.871.431.7177.8819.0
100114.3228.6157.223.876.233.3190.5819.0
125141.3254.0185.723.888.936.5215.9822.2
150165.1279.4215.925.488.939.7241.3822.2
168.3279.4215.925.488.939.7241.3822.2
200219.1342.9269.928.6101.644.4298.4822.2
250273.1406.4323.830.2101.649.2361.91225.4
300323.9482.6381.031.7114.355.6431.81225.4
350355.6533.4412.734.9127.057.1476.21228.6
400406.4596.9469.936.5127.063.5539.71628.6
450457.2635.0533.439.7139.768.3577.81631.7
