G105 Grade API 5CT Oil Casing Pipe with Buttress Thread and Copper Coated Surface
G105 Grade API 5CT Oil Casing Pipe with Buttress Thread and Copper Coated Surface
G105 Grade API 5CT Oil Casing Pipe with Buttress Thread and Copper Coated Surface
G105 Grade API 5CT Oil Casing Pipe with Buttress Thread and Copper Coated Surface
G105 Grade API 5CT Oil Casing Pipe with Buttress Thread and Copper Coated Surface
G105 Grade API 5CT Oil Casing Pipe with Buttress Thread and Copper Coated Surface
G105 Grade API 5CT Oil Casing Pipe with Buttress Thread and Copper Coated Surface
G105 Grade API 5CT Oil Casing Pipe with Buttress Thread and Copper Coated Surface
G105 Grade API 5CT Oil Casing Pipe with Buttress Thread and Copper Coated Surface
G105 Grade API 5CT Oil Casing Pipe with Buttress Thread and Copper Coated Surface
Specifications
Grade :
E75, X95, G105
Out diameter :
API J55, API K55, API L80,
Application :
Oil Well Casing and Tubing
Surface :
Copper Coated
Special Pipe :
API Pipes
Brand Name :
Best
Model Number :
114.3 - 508 mm
Certification :
API
Place of Origin :
China
MOQ :
1 Tons
Price :
600 usd/ton
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
100000Ton/Month
Delivery Time :
5-8 working days
Packaging Details :
bundle,,painting against corrosion, protective plastic caps, special packing can be offered by customer.
Name :
Drill Pipe
Description
G105 4 1/2 Inch Oil Casing And Tubing, Buttress Thread Casing With STC BTC LTC Thread
Product Overview

Drill Pipe Spec 5D 5th edition 2002 E75, X95, G105 - API 5CT oil casing pipe designed for oil and gas industry applications.

Specifications
  • Material: H40, J55, K55, N80, C75, L80, C90, T95, P110, Q125
  • Outside Diameter: 114.3mm to 508mm
  • Wall Thickness: 5.12mm to 16.13mm
  • Length: R1 (4.86-7.62M), R2 (7.62-10.36M), R3 (10.36-13Meters)
  • Thread Types: STC, BTC, LTC
  • Standard: API 5CT
  • Technical Process: Hot Rolled
  • Type: Seamless alloy API pipe
  • Surface Treatment: Blank oil painting + green/red/white/brown painting
  • Packing: 3 tons in a bundle packed by steel strip
  • Third Party Inspection: BV, SGS, ISO
  • Usage: Oil pipeline, oil natural gas, industrial gas, water transportation
Product Categories
Tubing
  • OD: 2 3/8" to 4 1/2"
  • WT: 0.167" to 0.630"
  • Note: P: Plain end, N: Non upset, U: External upset, T&C: Threaded and coupled
Casing
  • OD: 2 3/8" to 20"
  • WT: 0.205" to 0.5"
  • Note: P: Plain end, S: Short round thread, L: Long round thread
Drill Pipe
  • OD: 2 3/8" to 5 1/2"
  • WT: 0.280" to 0.449"
  • Note: EU: External upset, IEU: Internal & External upset
  • Thread of tool joint are right-hand or left hand
  • Thread are copper-plated or phosphated
Length Specifications
Length R1 R2 R3
Tubing 6.10 - 7.32 m 8.53 - 9.75 m 11.58 - 12.80 m
Casing 4.88 - 7.62 m 6.72 - 10.36 m 10.36 - 14.63 m
Product Specifications
Product Materials Standards Spec (mm) Application
Oil Casing Pipe J55, K55, N80, L80 API 5CT 60.23-508.00*4.24-16.13 Tube for conveying gas, water, and oil and natural gas industries etc.
C90, C95, CP110 ISO 11960
Material Grade Properties
Grade Yield Strength Tensile Strength Hardness Allowable Hardness Variation
Min (Psi) Min (Mpa) Min (Psi) Max (Mpa) Max HRC Max BHN
J5555,00037980,000552---
K5555,00037988,000552---
N8080,000552110,000758---
N80-180,00055295,00065523241-
C9090,000621105,00072425.42553
C9595,000655110,000758---
T9595,000655110,00075825.42553
P110110,000758140,000965---

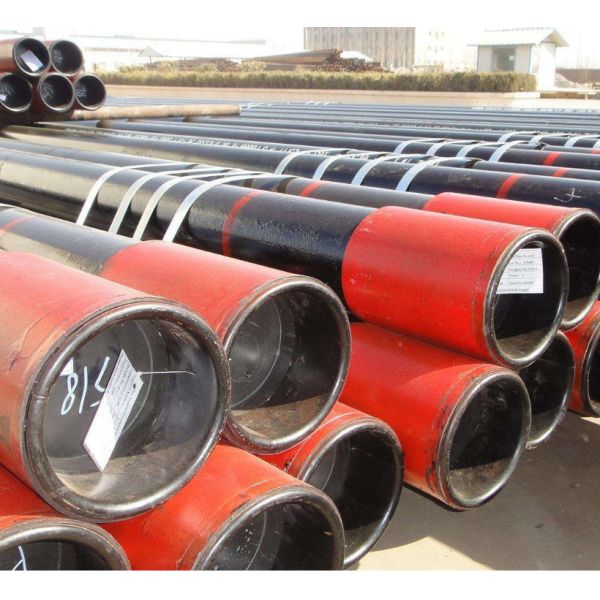

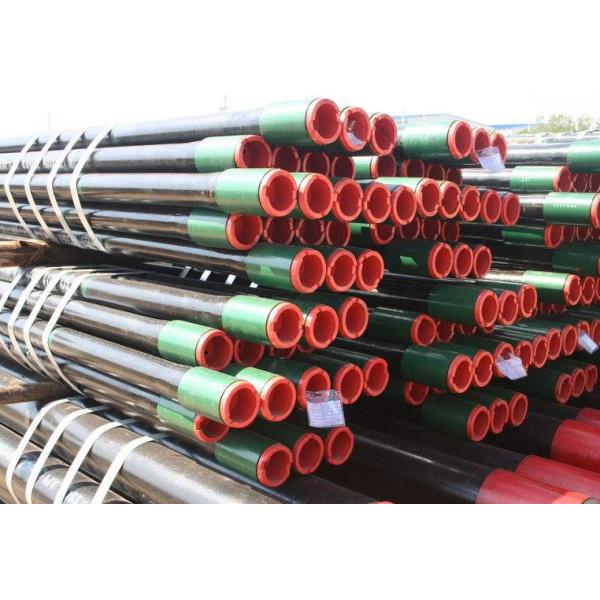

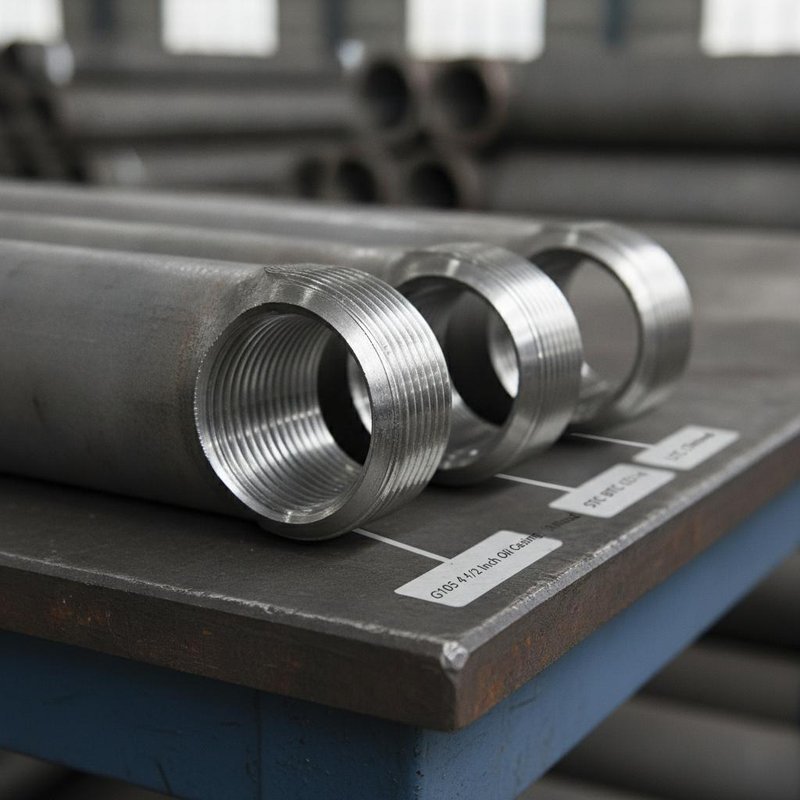

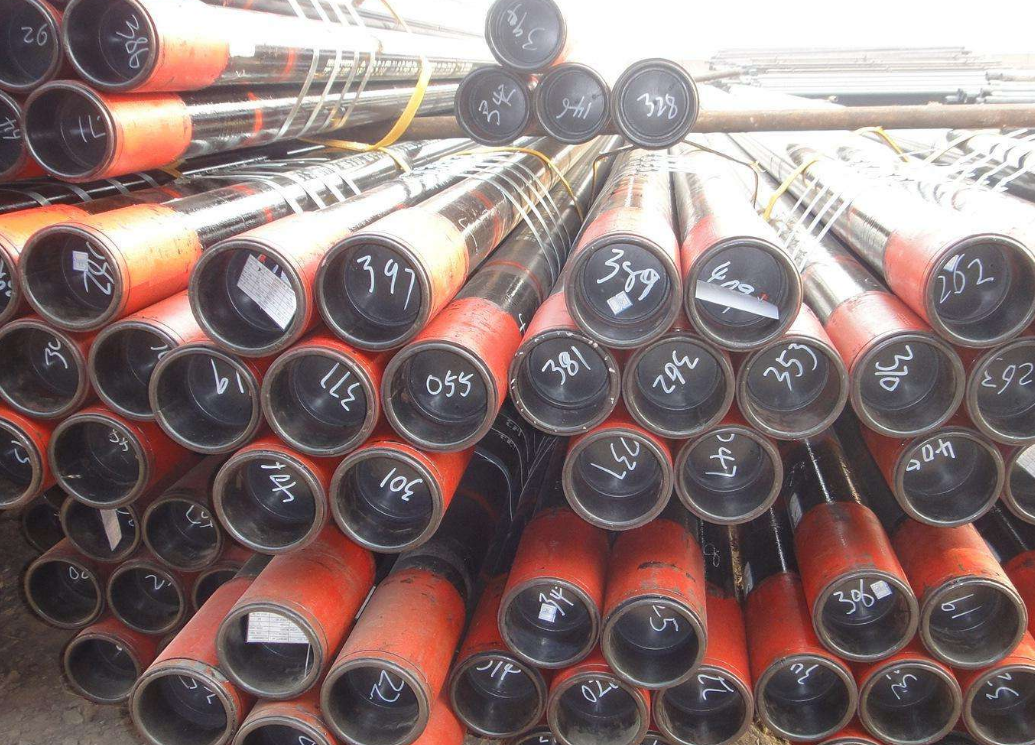

Product Image
G105 Grade API 5CT Oil Casing Pipe with Buttress Thread and Copper Coated Surface
