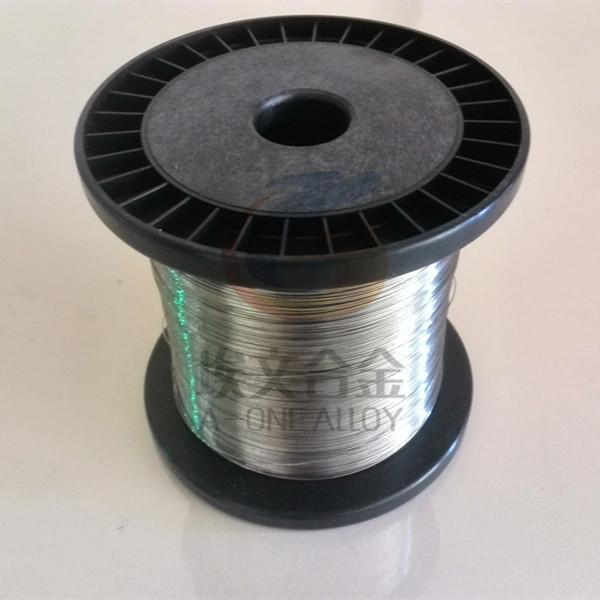

EL-3 elastic alloy wire and strip
EL-3 elastic alloy wire and strip
Specifications
Place of Origin :
Suzhou, China
Brand Name :
AIWEN
Certification :
SGS, BV, TUV, ISO
Model Number :
3J53, UNS N09902
Product form :
wire, strip
Diameter :
0.1mm-3mm
MOQ :
100kg
Price :
Available per request
Packaging Details :
Woven bag, carton, wooden box
Delivery Time :
25 days
Payment Terms :
T/T
Supply Ability :
10MT per month
Description

EL-3 elastic alloy wire, strip

General introduction

EL-3 is a heat treatable alloy designed primarily to obtain a constant modulus of elasticity in a useful temperature range of -50°F to 150°F . The addition of titanium to the nickel-chromium-iron alloy makes it hardenable by precipitation. It has outstanding properties of elastic modulus control and high strength, combined with unusually low drift and mechanical hysteresis. Standard product forms are round, strip, tube, pipe, and wire.

Application

Used for precision springs, mechanical resonators, and other precision elastic components.

Chemical Composition

Element

Content

Ni

41 - 43.5 %

Cr

4.9 - 5.75 %

Ti

2.2 - 2.75 %

Fe

48 %

EL-3, Ni SPAN C 902, Nispan C, UNS N09902; BS 3127; SAE AMS 5210, 5221, 5223, 5225
