Haynes 230(UNSN06230) alloy plate, Sheet, Strip, Foil, Billet, Bar, Wire, Forging Stock, Welding Products, Pipe and Tubing

• Introduction
  • Haynes 230 is a Ni-Cr-W-Mo alloy that combines excellent high-temperature strength and oxidation resistance with superior long term stability and good fabricability.
  • It boasts excellent oxidation resistance to 2100°F and superior strength at temperature. This allows.
  • Haynes 230 to excel in creep and fatigue resistance at high temperatures. It also exhibits excellent nitriding and carburization resistance comparable to that of alloy 600.
  • Density:8.97g/cm3
• Characters
  • l Excellent oxidation resistance to 2100°F
  • l Superior high temperature strength
  • l Resistant to grain coarsening at high temperatures
  • l Good resistance to nitriding and carburizing
• Application of Haynes 230
  • l Transition ducts on turbine engines
  • l Combustion linings on turbine engines
  • l Furnace retorts
  • l Flame shrouds
  • l Vacuum heat treat fixtures
• Equal grades
  • UNS N06230, W. NR./EN 2.4733, Alloy 230
• Chemical composition (%)
  • C=0.05~0.15, Mn=0.30~0.10, Si=0.25~0.75, P≤0.030, S≤0.015, Cr=20.0~24.0, Co≤5.0, Fe≤3.0, Al=0.20~0.50, Ti≤0.10, B≤0.015, Cu≤0.50, La=0.005~0.050, W=13.0~15.0, Mo=1.0~3.0, Ni=Remainder
• Standard
  • AMS 5878 - Sheet, Strip and Plate
  • AMS 5891 - Bar and Forging
  • GE B50TF246
  • DIN 17744 No 2.4733
  • ASME SB 435 Sheet, Strip and Plate
  • ASME SB 572 Bar and Rod
  • ASME SB 564 Forgings
  • ASME SB 619 Welding Pipe
  • ASME SB 622 Seamless Tube and Pipe
  • ASME SB 626 Welded Tube
  • ASME SB 366 Fittings
  • ASTM B435 Sheet, Strip and Plate
  • ASTM B572 Bar and Rod
  • ASTM B564 Forgings
  • ASTM B619 Welded Pipe
  • ASTM B 622 Seamless Tube and Pipe
  • ASTM B626 Welded Tube
  • ASTM B366 Fittings
• Forms of product available at A-one Alloy

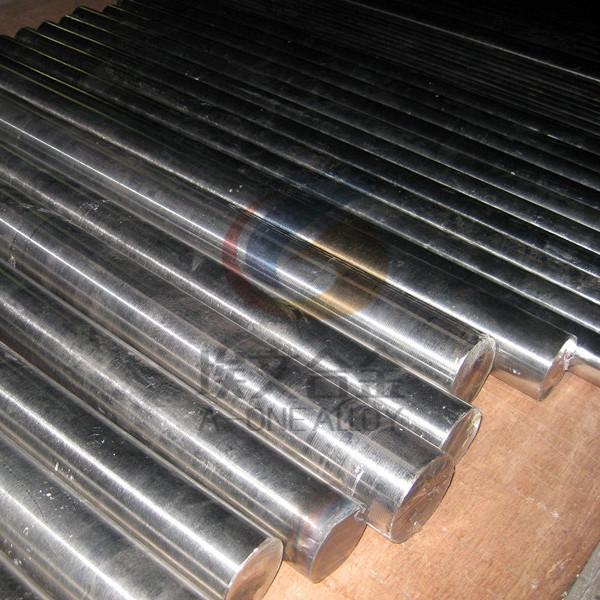

  • Plate, Sheet, Strip, Foil, Billet, Bar, Wire, Forging Stock, Welding Products, Pipe and Tubing
• Delivery
  • Please contact A-one Alloy for confirmation

*Haynes is a registered trademark of HaynesInternational, Inc.
