Hymu80 (Permalloy80/Mumetal)high initial permeability alloy Plate, sheet, strip, wire, rod
Hymu80 (Permalloy80/Mumetal)high initial permeability alloy Plate, sheet, strip, wire, rod
Hymu80 (Permalloy80/Mumetal)high initial permeability alloy Plate, sheet, strip, wire, rod
Hymu80 (Permalloy80/Mumetal)high initial permeability alloy Plate, sheet, strip, wire, rod
Hymu80 (Permalloy80/Mumetal)high initial permeability alloy Plate, sheet, strip, wire, rod
Hymu80 (Permalloy80/Mumetal)high initial permeability alloy Plate, sheet, strip, wire, rod
Hymu80 (Permalloy80/Mumetal)high initial permeability alloy Plate, sheet, strip, wire, rod
Hymu80 (Permalloy80/Mumetal)high initial permeability alloy Plate, sheet, strip, wire, rod
Specifications
Place of Origin :
Suzhou, China
Brand Name :
AIWEN
Model Number :
Hymu80-Avril
MOQ :
10kg
Price :
USD55/kg
Packaging Details :
By customers' require
Delivery Time :
5days
Payment Terms :
30% T/T in advance, balance before shipment
Supply Ability :
10000 kg per month
Description

Hymu80 (Permalloy80/Mumetal) high initial permeability plate, sheet, strip, wire, rod, bar, tube

Introduction

Hymu80 is 80% nickel with additions of iron and molybdenum as main elements in turn this alloy offers an extremely high initial permeability.

Characters

Hymu80 is only moderately resistant to moisture and atmospheric corrosion; it used mainly in in transformer cores but is well known for its magnetic properties which are used for shielding electrical components from magnetic fields. "HYMU 80" has a minimum DC permeability of 80,000 at a flux density of 40 gauss when heat treated by the recommended procedure and test in accordance with ASTM 596.

Specific Gravity - 8.7g/cm

Curie Temperature - 830°F (410°C)

Applications

l High performance magnetic cores such as toroids and stacked laminations

l Magnetic shielding to protect sensitive components from extraneous magnetic fields

l Magnetic sensors

l Current sensors

l Any application requiring high permeability magnetic material, with a low coercive field and low losses, in the range from low frequency up to 1MHz

l Vacuum chamber vessels and liners

Equal grades

Permalloy 80

HYMU 80

MAG 7904

MIL N 14411 C, COMP. 1

UNS N14080

Mumetal

PC(Japan)

1J79(China)

Nominal Chemical composition

Ni=80%, Si=0.35%, Fe=15%, Mn=0.50%, Mo=4.2%, Si=0.35%

Standards

ASTM A753 and ASTM 59

Forms available at A-one Alloy

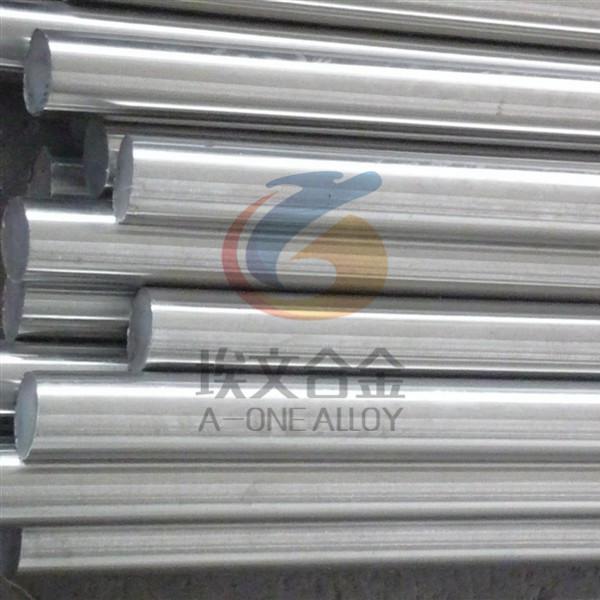

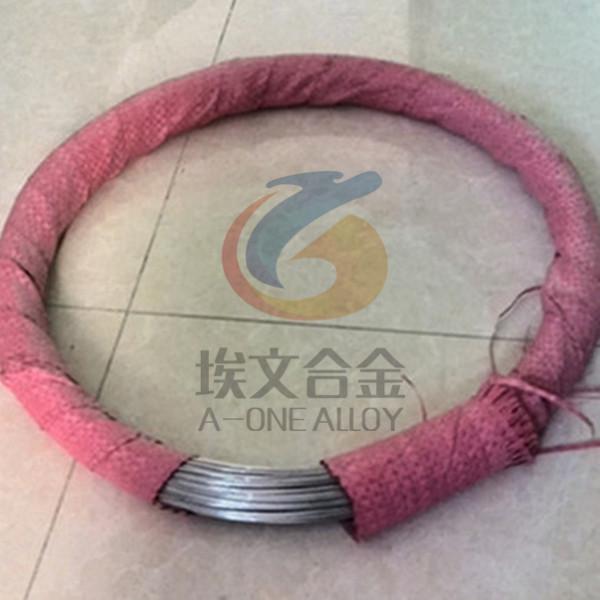

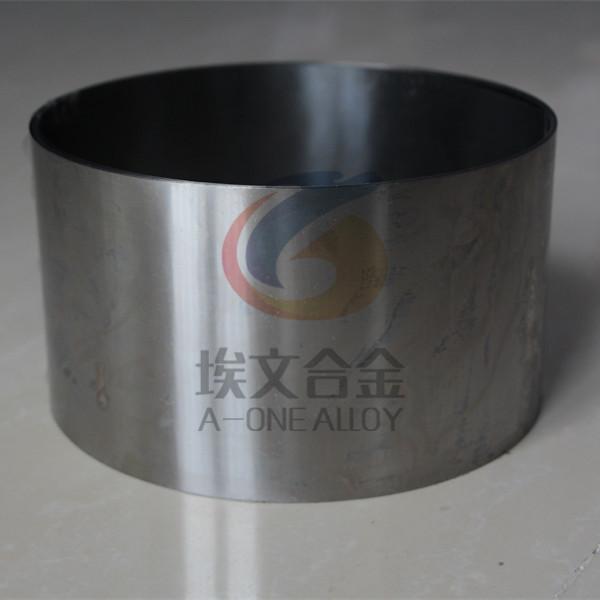

Plate, sheet, strip, wire, rod, bar, tube

Delivery

Huge stock of wire and strip. 5kg MOQ for cold drawn wire. Delivery within 4 weeks.
