Specifications
Brand Name :
ALLIED TESTING
Certification :
ISO 17025
Model Number :
IPSN
MOQ :
One Piece
Price :
negotiate
Packaging Details :
Standard tool case
Delivery Time :
stock
Payment Terms :
T/T
Supply Ability :
1000 piece
Product :
spray nozzle
Standard :
IEC 60529 IPX3 IPX4
Material :
steel and brass
Certificate :
calibration certificate
total hole number :
121 holes
hole diameter :
0.5mm
Warranty :
One Year Period
Description

spray nozzle / IPxx equipment water proof test / IPx3 IPx4 spray nozzle

Appliance:

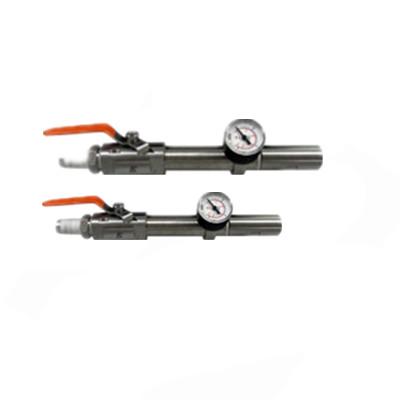

Allied Testing IPX3-4 Spray Nozzle is a hand-held test device to verify protection against spraying and splashing water. The water pressure can be adjusted using the flow control knob on the device to give the required flow rate. The pressure can be seen on the gauge which is conveniently positioned by the nozzle. The spray pattern of the nozzle is made to the specifications of IEC 60529. A moveable shield can be put down over a portion of the nozzle for IPX3 or moved out of the spray pattern for IPX4.

Features:

*made of brass and steel

*moveable shield with counterweight

*Ball valve for water flow regulation

*Water filter

*Hose connector

Conform to:

IEC60529, IEC60598-1, IEC 60335-1, IEC60745-1, GB4208, GB7000.1

Technical Specification:

Pressure gauge: 0-1.6bar

Number of holes: 121

Diameter of nozzle holes:0.5mm

spray nozzle / IPxx equipment water proof test / IPx3 IPx4  spray nozzle

spray nozzle / IPxx equipment water proof test / IPx3 IPx4  spray nozzle
