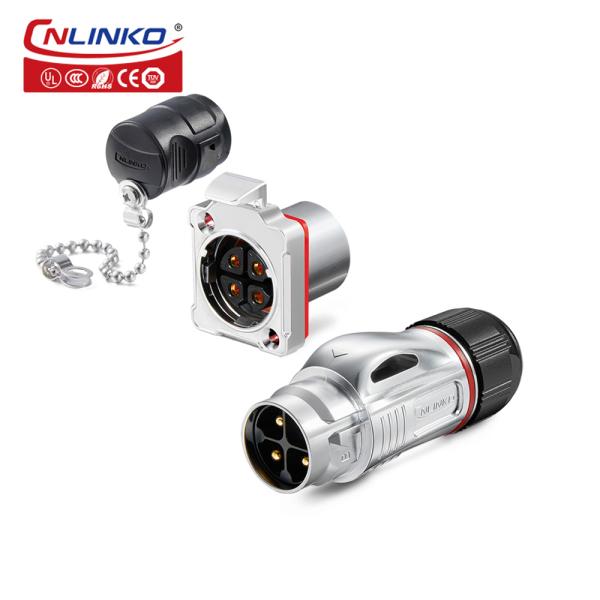

M24 Metal Version Panel and Butt Mount 4 Pin Industrial Waterproof Power Connector
M24 Metal Version Panel and Butt Mount 4 Pin Industrial Waterproof Power Connector
M24 Metal Version Panel and Butt Mount 4 Pin Industrial Waterproof Power Connector
M24 Metal Version Panel and Butt Mount 4 Pin Industrial Waterproof Power Connector
M24 Metal Version Panel and Butt Mount 4 Pin Industrial Waterproof Power Connector
M24 Metal Version Panel and Butt Mount 4 Pin Industrial Waterproof Power Connector
M24 Metal Version Panel and Butt Mount 4 Pin Industrial Waterproof Power Connector
M24 Metal Version Panel and Butt Mount 4 Pin Industrial Waterproof Power Connector
M24 Metal Version Panel and Butt Mount 4 Pin Industrial Waterproof Power Connector
M24 Metal Version Panel and Butt Mount 4 Pin Industrial Waterproof Power Connector
M24 Metal Version Panel and Butt Mount 4 Pin Industrial Waterproof Power Connector
M24 Metal Version Panel and Butt Mount 4 Pin Industrial Waterproof Power Connector
Specifications
Place of Origin :
Guangdong, China
Brand Name :
CNLINKO
Model Number :
BD-24-C04PE-03-001
Certification :
UL, CE, CCC, ISO9001,ROHS
MOQ :
2
Price :
US$13.70-14.70
Type :
XLR
Application :
Power
Gender :
Male
Connector type :
4 pin
Protect level :
IP67
Materials :
Metal
Description

M24 Metal version panel and butt mount 4 pin industrial waterproof power connector

Features:

Multi-purpose design (3-core, RJ45 signal) for a wide range of application needs;
Fully plastic and all-metal two-component design, with strong applicability and complete electromagnetic and radio frequency interference protection;
Gold-plated contacts, high-strength corrosion resistance and electrical conductivity, temperature changes that can be effectively generated by current;
PBT material shell, stable electrical performance, high strength, pressure resistance, high temperature resistance, explosion resistance, corrosion resistance;
IP67 protection level in connection state;
Rated current 25A;
One-piece streamlined design.

Product Description

M24 Metal Version Panel and Butt Mount 4 Pin Industrial Waterproof Power ConnectorM24 Metal Version Panel and Butt Mount 4 Pin Industrial Waterproof Power ConnectorM24 Metal Version Panel and Butt Mount 4 Pin Industrial Waterproof Power ConnectorM24 Metal Version Panel and Butt Mount 4 Pin Industrial Waterproof Power ConnectorM24 Metal Version Panel and Butt Mount 4 Pin Industrial Waterproof Power ConnectorM24 Metal Version Panel and Butt Mount 4 Pin Industrial Waterproof Power ConnectorM24 Metal Version Panel and Butt Mount 4 Pin Industrial Waterproof Power Connector

M24 Metal Version Panel and Butt Mount 4 Pin Industrial Waterproof Power Connector

Specifications
Specifications
Connecting mode Bayonet connection
Protection level IP65/IP67
Cable specification 2.5~4mm2 / 14~12AWG
Diameter range Φ10.5mm~Φ12.0mm
Contact diameter×Qty 4 pin
Current rating(A) 25A
Temperature rise

/
Operating voltage(AC.V.rms) 500v
Withstanding voltage(AC.V)1min 2500V
Contact resistance <30mΩ
Insulation resistance >500MΩ
Durability ≥500 mating&unmating cycles
Temperature rating -40°C~80°C
Method of connecting cable Soldering
Prevent the combustion level UL94-V0
Material
Insulated parts High performance engineering plastics
Hardware metal Zinc alloy(pearl hard chromium)
Contact pin Copper alloy(gold-plated 4U)
Spring Stainless steel
Sealing Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance
socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery

Certifications

M24 Metal Version Panel and Butt Mount 4 Pin Industrial Waterproof Power Connector
