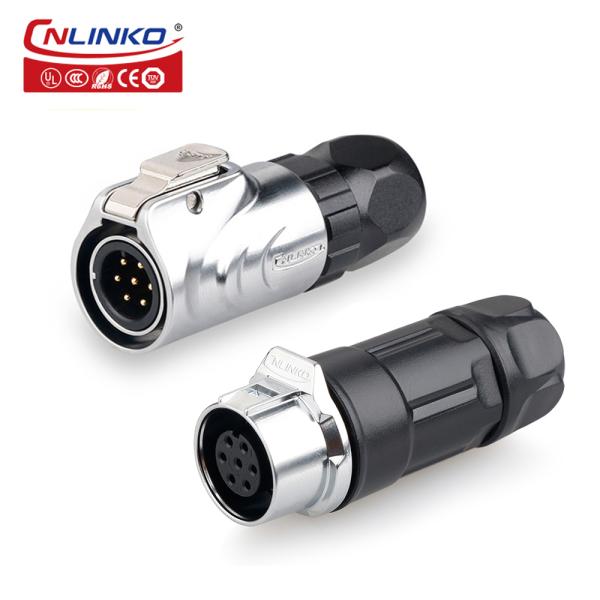

CNLINKO Male Female Panel Mount Industrial Wire Connector 7 Pin Waterproof Plug Socket Metal Cable Connector
CNLINKO Male Female Panel Mount Industrial Wire Connector 7 Pin Waterproof Plug Socket Metal Cable Connector
CNLINKO Male Female Panel Mount Industrial Wire Connector 7 Pin Waterproof Plug Socket Metal Cable Connector
CNLINKO Male Female Panel Mount Industrial Wire Connector 7 Pin Waterproof Plug Socket Metal Cable Connector
CNLINKO Male Female Panel Mount Industrial Wire Connector 7 Pin Waterproof Plug Socket Metal Cable Connector
CNLINKO Male Female Panel Mount Industrial Wire Connector 7 Pin Waterproof Plug Socket Metal Cable Connector
CNLINKO Male Female Panel Mount Industrial Wire Connector 7 Pin Waterproof Plug Socket Metal Cable Connector
CNLINKO Male Female Panel Mount Industrial Wire Connector 7 Pin Waterproof Plug Socket Metal Cable Connector
CNLINKO Male Female Panel Mount Industrial Wire Connector 7 Pin Waterproof Plug Socket Metal Cable Connector
CNLINKO Male Female Panel Mount Industrial Wire Connector 7 Pin Waterproof Plug Socket Metal Cable Connector
CNLINKO Male Female Panel Mount Industrial Wire Connector 7 Pin Waterproof Plug Socket Metal Cable Connector
CNLINKO Male Female Panel Mount Industrial Wire Connector 7 Pin Waterproof Plug Socket Metal Cable Connector
Specifications
Place of Origin :
Guangdong, China
Brand Name :
cnlinko
Model Number :
LP-12-C07PE-03-001
Certification :
UL,CE,ROHS,CCC,ISO9001
MOQ :
2
Price :
US$8.50-9.50
Type :
XLR
Application :
Audio & Video, Signal
Gender :
male and female, Female +male
Protection level :
IP65/IP67
Pin :
7 pin
Current rating(A) :
3A
Shell & Insulated Parts :
High Performance Engineer Plastic
Hardware Matel :
Zinc Alloy (pearl hard chromium)
Connecting mode :
plug/unplug
Operating voltage :
200V
Description

CNLINKO male female panel mount industrial wire connector 7 pin waterproof plug socket

Product Description

- Multi-style inner core design (2-8 cores), in line with various industrial requirements, the signal and power supply are compatible at the same time.
- Spring-pressed design, tightly docked, safe and secure.
- The orientation is strong, and blind insertion can be realized, and the humanized design in the true sense.
-3 core lock screws and solderable optional connection, fully compatible with outdoor installation work.
- Gold-plated contacts, high corrosion resistance and electrical conductivity, effectively coping with changes in temperature rise caused by current.
- Thermoplastic high temperature resistant plastic case, stable electrical performance, high strength, high temperature resistance and corrosion resistance.
- Unique docking design, solid extension of infinite line length.
-Flange 4 hole mounting, stable and impeccable, threaded single hole housing installation, suitable for circular opening industrial installation.
- The product complies with IP67 protection in the assembled state.

CNLINKO Male Female Panel Mount Industrial Wire Connector 7 Pin Waterproof Plug Socket Metal Cable ConnectorCNLINKO Male Female Panel Mount Industrial Wire Connector 7 Pin Waterproof Plug Socket Metal Cable ConnectorCNLINKO Male Female Panel Mount Industrial Wire Connector 7 Pin Waterproof Plug Socket Metal Cable ConnectorCNLINKO Male Female Panel Mount Industrial Wire Connector 7 Pin Waterproof Plug Socket Metal Cable ConnectorCNLINKO Male Female Panel Mount Industrial Wire Connector 7 Pin Waterproof Plug Socket Metal Cable ConnectorCNLINKO Male Female Panel Mount Industrial Wire Connector 7 Pin Waterproof Plug Socket Metal Cable ConnectorCNLINKO Male Female Panel Mount Industrial Wire Connector 7 Pin Waterproof Plug Socket Metal Cable ConnectorCNLINKO Male Female Panel Mount Industrial Wire Connector 7 Pin Waterproof Plug Socket Metal Cable ConnectorCNLINKO Male Female Panel Mount Industrial Wire Connector 7 Pin Waterproof Plug Socket Metal Cable ConnectorCNLINKO Male Female Panel Mount Industrial Wire Connector 7 Pin Waterproof Plug Socket Metal Cable Connector

Specifications
Specifications
Connecting mode Latching Lock connect
Protection level IP65/IP67
Cable specification 0.2~03mm2 /24~22AWG
Diameter range Φ3mm ~Φ6mm
Contact diameter×Qty Φ0.8x7
Current rating(A) 3A
Temperature rise /
Withstanding voltage(AC.V)1min 1500V
Contact resistance <10mΩ
Insulation resistance >500MΩ
Durability ≥500 mating&unmating cycles
Temperature rating -40°C~80°C
Method of connecting cable Soldering
Prevent the combustion level UL94-V0
Material
Insulated parts High performance engineering plastics
Hardware metal Zinc alloy(pearl hard chromium)
Contact pin Copper alloy(gold-plated 4U)
Spring Stainless steel
Sealing Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance
socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery
Certifications
