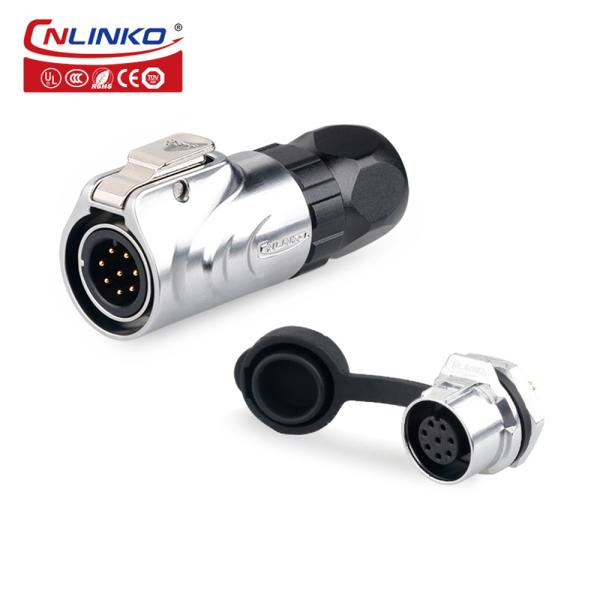

CNLINKO IP67 Waterproof LP12 8 Pin Male Female Power Connector with CE ROHS Certificates
CNLINKO IP67 Waterproof LP12 8 Pin Male Female Power Connector with CE ROHS Certificates
CNLINKO IP67 Waterproof LP12 8 Pin Male Female Power Connector with CE ROHS Certificates
CNLINKO IP67 Waterproof LP12 8 Pin Male Female Power Connector with CE ROHS Certificates
CNLINKO IP67 Waterproof LP12 8 Pin Male Female Power Connector with CE ROHS Certificates
CNLINKO IP67 Waterproof LP12 8 Pin Male Female Power Connector with CE ROHS Certificates
CNLINKO IP67 Waterproof LP12 8 Pin Male Female Power Connector with CE ROHS Certificates
CNLINKO IP67 Waterproof LP12 8 Pin Male Female Power Connector with CE ROHS Certificates
CNLINKO IP67 Waterproof LP12 8 Pin Male Female Power Connector with CE ROHS Certificates
CNLINKO IP67 Waterproof LP12 8 Pin Male Female Power Connector with CE ROHS Certificates
CNLINKO IP67 Waterproof LP12 8 Pin Male Female Power Connector with CE ROHS Certificates
CNLINKO IP67 Waterproof LP12 8 Pin Male Female Power Connector with CE ROHS Certificates
Specifications
Place of Origin :
Guangdong, China
Brand Name :
CNLINKO
Model Number :
LP-12-C08PE-01-001&LP-12-J08SX-03-101
MOQ :
10
Price :
$5.70-6.65
Type :
Signal
Application :
Industrial, Audio & Video
Gender :
Male & Female
Material :
PBT
Current rating :
3A
Wire Gauge :
18AWG
Protection Level :
IP65/IP67
Product name :
8 pin waterproof connector
Contact Diameter/Number of Contact :
0.8x8
Operating Voltage :
250V
Temperature Rating :
-40℃-80℃
Assembly Style :
Solder
Description

CNLINKO IP67 waterproof LP12 8 pin male female power connector with CE ROHS certificates

Product Description

- Multi-style inner core design (2-8 cores), in line with various industrial requirements, the signal and power supply are compatible at the same time.
- Spring-pressed design, tightly docked, safe and secure.
- The orientation is strong, and blind insertion can be realized, and the humanized design in the true sense.
-3 core lock screws and solderable optional connection, fully compatible with outdoor installation work.
- Gold-plated contacts, high corrosion resistance and electrical conductivity, effectively coping with changes in temperature rise caused by current.
- Thermoplastic high temperature resistant plastic case, stable electrical performance, high strength, high temperature resistance and corrosion resistance.
- Unique docking design, solid extension of infinite line length.
-Flange 4 hole mounting, stable and impeccable, threaded single hole housing installation, suitable for circular opening industrial installation.
- The product complies with IP67 protection in the assembled state.

CNLINKO IP67 Waterproof LP12 8 Pin Male Female Power Connector with CE ROHS CertificatesCNLINKO IP67 Waterproof LP12 8 Pin Male Female Power Connector with CE ROHS CertificatesCNLINKO IP67 Waterproof LP12 8 Pin Male Female Power Connector with CE ROHS CertificatesCNLINKO IP67 Waterproof LP12 8 Pin Male Female Power Connector with CE ROHS CertificatesCNLINKO IP67 Waterproof LP12 8 Pin Male Female Power Connector with CE ROHS CertificatesCNLINKO IP67 Waterproof LP12 8 Pin Male Female Power Connector with CE ROHS CertificatesCNLINKO IP67 Waterproof LP12 8 Pin Male Female Power Connector with CE ROHS CertificatesCNLINKO IP67 Waterproof LP12 8 Pin Male Female Power Connector with CE ROHS CertificatesCNLINKO IP67 Waterproof LP12 8 Pin Male Female Power Connector with CE ROHS CertificatesCNLINKO IP67 Waterproof LP12 8 Pin Male Female Power Connector with CE ROHS CertificatesCNLINKO IP67 Waterproof LP12 8 Pin Male Female Power Connector with CE ROHS CertificatesCNLINKO IP67 Waterproof LP12 8 Pin Male Female Power Connector with CE ROHS CertificatesCNLINKO IP67 Waterproof LP12 8 Pin Male Female Power Connector with CE ROHS Certificates

Specifications
Specifications
Connecting mode Latching Lock connect
Protection level IP65/IP67
Cable specification 0.2~0.3mm²/24~22AWG
Diameter range Φ3mm ~Φ6mm
Contact diameter×Qty Φ0.8x8
Current rating(A) 3A
Temperature rise /
Withstanding voltage(AC.V)1min 1500V
Contact resistance <5mΩ
Insulation resistance >500MΩ
Durability ≥500 mating&unmating cycles
Temperature rating -40°C~80°C
Method of connecting cable Soldering
Prevent the combustion level UL94-V0
Material
Insulated parts High performance engineering plastics
Hardware metal Zinc alloy(pearl hard chromium)
Contact pin Copper alloy(gold-plated 4U)
Spring Stainless steel
Sealing Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance

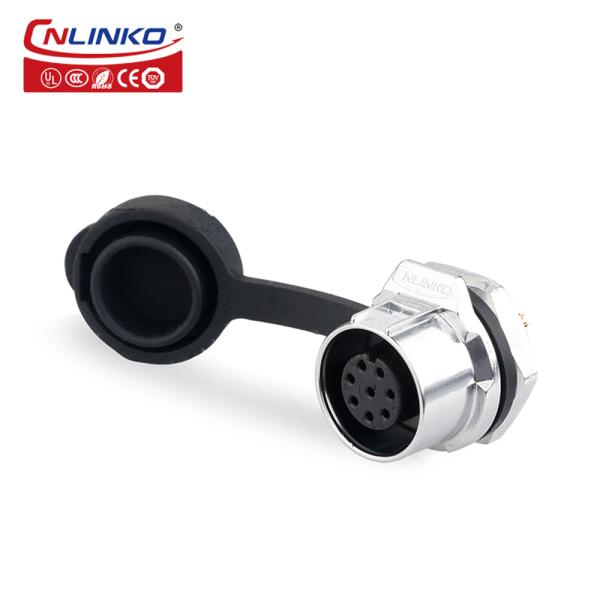

socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery
