Specifications
Place of Origin :
Guangdong, China
Brand Name :
cnlinko
Model Number :
LP-12-C08PE-02-001
MOQ :
10
Type :
XLR
Application :
Power
Gender :
Male
Connector type :
M12
Current rating :
5A
Operating voltage :
200V
Wire Gauge :
24-22AWG
Material :
PBT
Contact material :
Brass Gold Plated
IP rating :
IP 67
Certificate :
ISO9001/CE/ROHS/REACH/UL
Description

M12 8pin waterproof power connector

Connector type M12
Current rating 5A
Operating voltage 200V
IP rating IP 67
Pin 8
Product Description

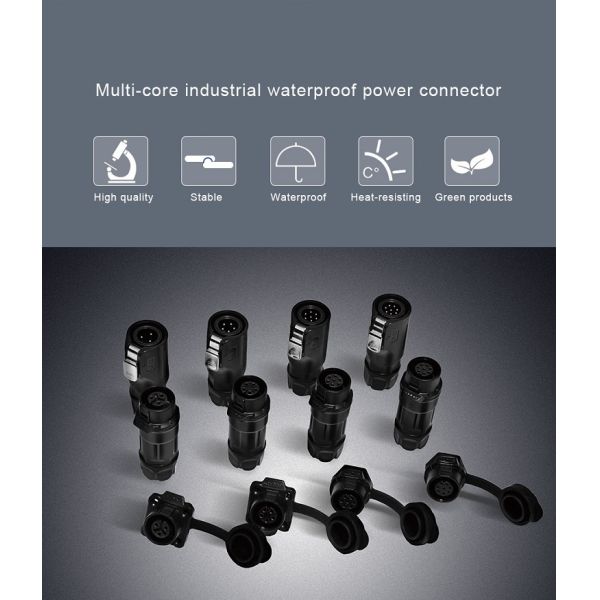

- Multi-style inner core design (2-8 cores), in line with various industrial requirements, the signal and power supply are compatible at the same time.
- Spring-pressed design, tightly docked, safe and secure.

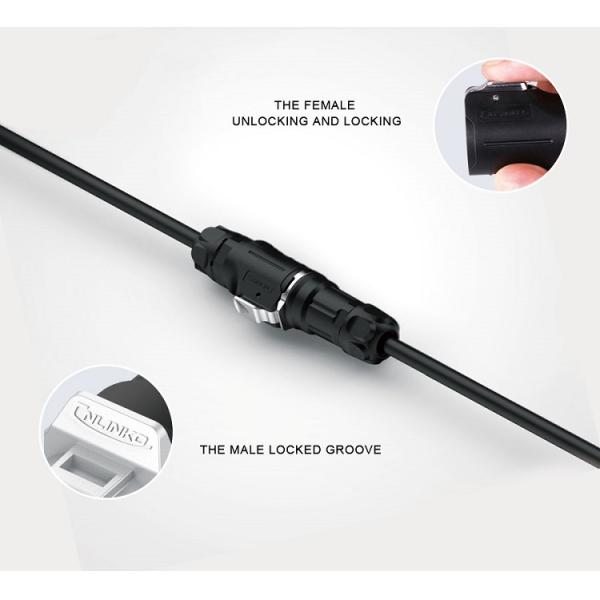

- The orientation is strong, and blind insertion can be realized, and the humanized design in the true sense.
-3 core lock screws and solderable optional connection, fully compatible with outdoor installation work.
- Gold-plated contacts, high corrosion resistance and electrical conductivity, effectively coping with changes in temperature rise caused by current.
- Thermoplastic high temperature resistant plastic case, stable electrical performance, high strength, high temperature resistance and corrosion resistance.
- Unique docking design, solid extension of infinite line length.
-Flange 4 hole mounting, stable and impeccable, threaded single hole housing installation, suitable for circular opening industrial installation.

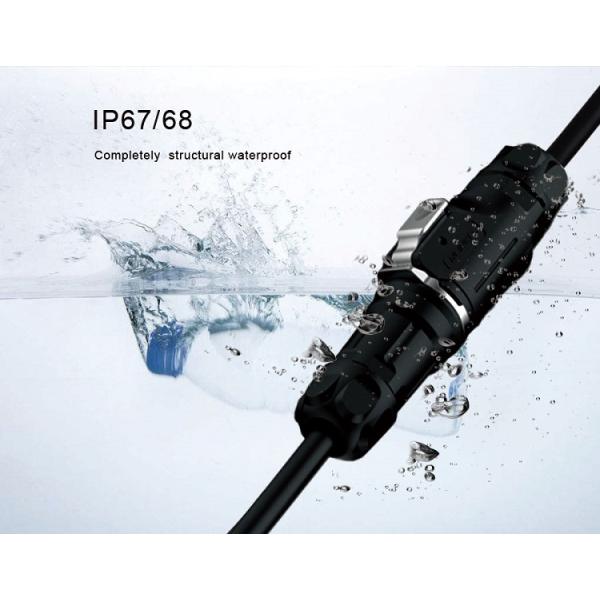

- The product complies with IP67 protection in the assembled state.

CNLINKO M12 8pin Socket Ip68 Waterproof Power Connector for LED Screen Signal Supply Circular Lighting Plastic Metal ConnectorsCNLINKO M12 8pin Socket Ip68 Waterproof Power Connector for LED Screen Signal Supply Circular Lighting Plastic Metal ConnectorsCNLINKO M12 8pin Socket Ip68 Waterproof Power Connector for LED Screen Signal Supply Circular Lighting Plastic Metal ConnectorsCNLINKO M12 8pin Socket Ip68 Waterproof Power Connector for LED Screen Signal Supply Circular Lighting Plastic Metal ConnectorsCNLINKO M12 8pin Socket Ip68 Waterproof Power Connector for LED Screen Signal Supply Circular Lighting Plastic Metal ConnectorsCNLINKO M12 8pin Socket Ip68 Waterproof Power Connector for LED Screen Signal Supply Circular Lighting Plastic Metal ConnectorsCNLINKO M12 8pin Socket Ip68 Waterproof Power Connector for LED Screen Signal Supply Circular Lighting Plastic Metal ConnectorsCNLINKO M12 8pin Socket Ip68 Waterproof Power Connector for LED Screen Signal Supply Circular Lighting Plastic Metal ConnectorsCNLINKO M12 8pin Socket Ip68 Waterproof Power Connector for LED Screen Signal Supply Circular Lighting Plastic Metal Connectors

Specifications
Specifications

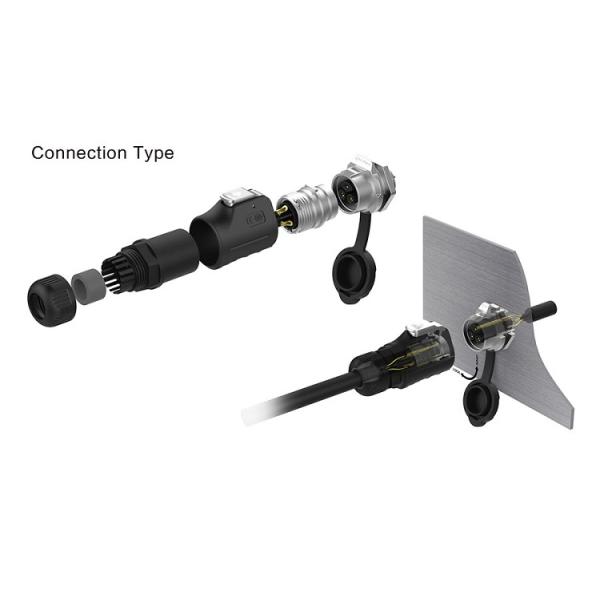

Connecting mode Latching Lock connect
Protection level IP68
Cable specification 0.2~0.3mm²/24~22AWG
Diameter range Φ3mm ~Φ6mm
Contact diameter×Qty Φ0.8x8
Current rating(A) 3A
Temperature rise /
Withstanding voltage(AC.V)1min 1500V
Contact resistance <5mΩ
Insulation resistance >500MΩ
Durability ≥500 mating&unmating cycles
Temperature rating -40°C~80°C
Method of connecting cable Soldering
Prevent the combustion level UL94-V0
Material
Insulated parts High performance engineering plastics
Hardware metal Zinc alloy(pearl hard chromium)
Contact pin Copper alloy(gold-plated 4U)
Spring Stainless steel
Sealing Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance
socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery
Certifications
