CNLINKO 7 Pin IP68 Waterproof M20 Metal Wire Connector With 16-18AWG

Specifications

Place of Origin :

Guangdong, China

Brand Name :

Cnlinko

Model Number :

YW-20-C07PE-02-001,YW-20-J07SX-02-001

Certification :

UL,CE,ROHS,CCC,ISO9001

MOQ :

Price :

$7.20-8.20

Type :

Signal

Application :

Power

Gender :

male and female, Female +male

Protection level :

IP65/IP67

Pin :

2-12pin

Current rating(A) :

12A

Shell & Insulated Parts :

High Performance Engineer Plastic

Hardware Matel :

Zinc Alloy (pearl hard chromium)

Connecting mode :

plug/unplug

Operating voltage :

500V

Description

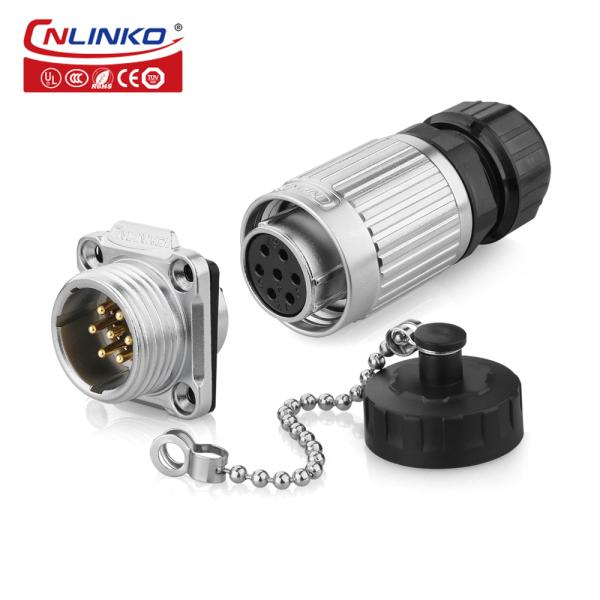

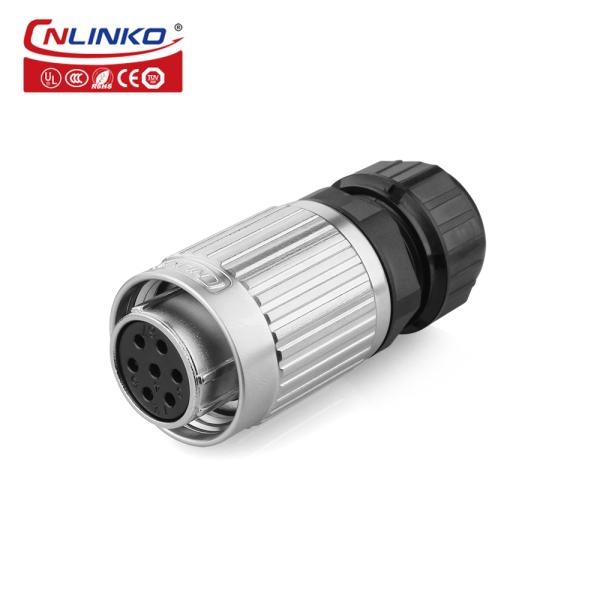

CNLINKO 7 pin IP67 waterproof M20 Metal Wire Connector With 16-18AWG

Product Description

YW-20 series electrical connectors IP65/IP67

all zinc alloy shell, intact electromagnetic and radio frequency interference protection, while can adapt the demands of top-grade products

Outer screw locking device, solid and safety

16MM and 20MM optional mounting dimensions

quickly and easy nut locking system design

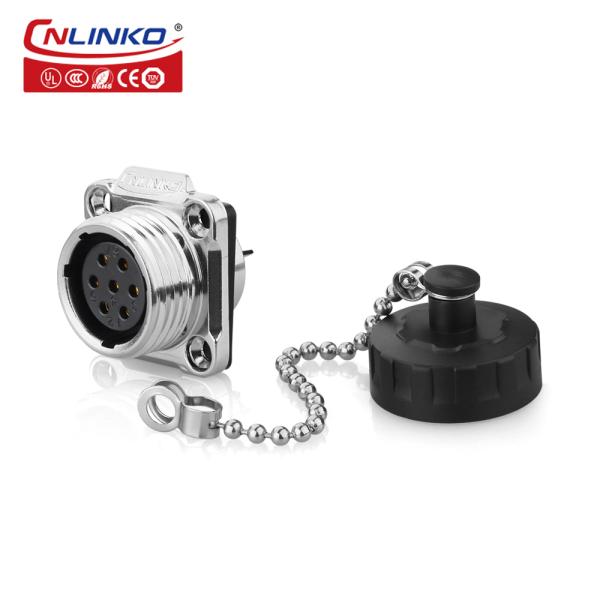

Hanging dust cover design avoid matters; high safe performance, easy to operate

2-12pins optional

5-20A rms rated current

Slip-resistant outer circle.

CNLINKO 7 Pin IP68 Waterproof M20 Metal Wire Connector With 16-18AWG

Specifications

Specifications
Connecting mode	Latching Lock connect
Protection level	IP67
Cable specification	0.15m2 ~ 0.2mm2 /14~12AWG
Diameter range	Φ5.5mm ~Φ7mm
Contact diameter×Qty	8 Pin
Current rating(A)	5A
Operating voltage(AC.V.rms)	1000V
Withstand voltage(AC.V)1min	/
Contact resistance	<30mΩ
Insulation resistance	>500MΩ
Durability	≥500 mating&unmating cycles
Temperature rating	-40°C~80°C
Method of connecting cable	Solder
Prevent the combustion level	UL94-V0
Material
Shell&insulated parts	High performance engineering plastics
Hardware metal	Zinc alloy(pearl hard chromium)
Contact pin	Copper alloy(gold-plated)
Spring	Stainless steel
Sealing	Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance
1/4 bayonet connect; socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery

Certifications
