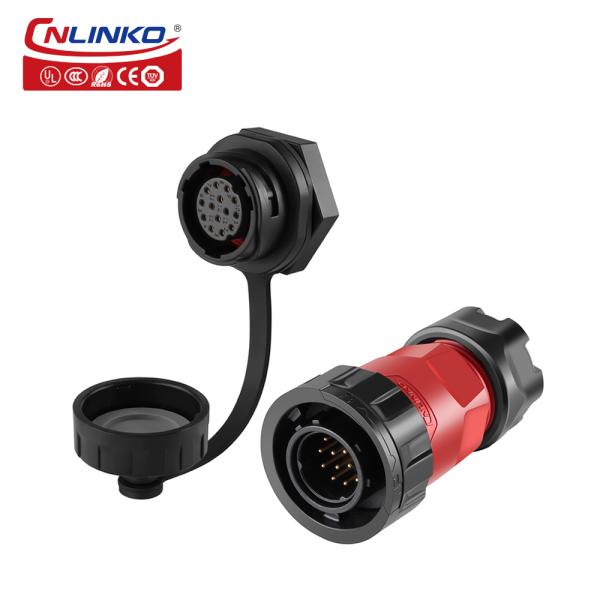

CNLINKO YM20 Plastic Waterproof 14 Pin Male Female Plug Socket IP68 Waterproof Connector Plastic Plug Socket
CNLINKO YM20 Plastic Waterproof 14 Pin Male Female Plug Socket IP68 Waterproof Connector Plastic Plug Socket
CNLINKO YM20 Plastic Waterproof 14 Pin Male Female Plug Socket IP68 Waterproof Connector Plastic Plug Socket
CNLINKO YM20 Plastic Waterproof 14 Pin Male Female Plug Socket IP68 Waterproof Connector Plastic Plug Socket
CNLINKO YM20 Plastic Waterproof 14 Pin Male Female Plug Socket IP68 Waterproof Connector Plastic Plug Socket
CNLINKO YM20 Plastic Waterproof 14 Pin Male Female Plug Socket IP68 Waterproof Connector Plastic Plug Socket
CNLINKO YM20 Plastic Waterproof 14 Pin Male Female Plug Socket IP68 Waterproof Connector Plastic Plug Socket
CNLINKO YM20 Plastic Waterproof 14 Pin Male Female Plug Socket IP68 Waterproof Connector Plastic Plug Socket
CNLINKO YM20 Plastic Waterproof 14 Pin Male Female Plug Socket IP68 Waterproof Connector Plastic Plug Socket
CNLINKO YM20 Plastic Waterproof 14 Pin Male Female Plug Socket IP68 Waterproof Connector Plastic Plug Socket
CNLINKO YM20 Plastic Waterproof 14 Pin Male Female Plug Socket IP68 Waterproof Connector Plastic Plug Socket
CNLINKO YM20 Plastic Waterproof 14 Pin Male Female Plug Socket IP68 Waterproof Connector Plastic Plug Socket
Specifications
Place of Origin :
Guangdong, China
Brand Name :
CNLINKO
Model Number :
YM-20-C14PE-02-001A
Certification :
CUL,UL,CE,ROHS,CCC,ISO9001
MOQ :
2
Price :
$3.38-3.94
Type :
Signal
Application :
Industrial
Gender :
male and female
Produce type :
Waterproof connector
Current rating(A) :
5A
Operating voltage :
250V
Protection level :
IP68
Shell & Insulated Parts :
High Performance Engineer Plastic
Connecting mode :
plug and socket connector
Hardware Matel :
Zinc Alloy (pearl hard chromium)
Contact pin :
Copper alloy(gold-plated)
Assembly :
Solder
Description

Industrial Plug Connector shell Housing Terminal Wafer IP67 Waterproof 14 pin DC Power Connector

Product Description

²multi-pins(2-14 PINGS) for varies industrial demands

²PBT shell ensure fire safety,stable, compression, anti-explosion and anti-deformation

²gold-plated contact, high performance of corrosion resistance and electrical

conductivity effectively deal with temperature rise.

²1/4 mount connector, easy operation and installation

²dustproof cover design under off-working condition

²rated current is 5A rms

²protection level:IP68

CNLINKO YM20 Plastic Waterproof 14 Pin Male Female Plug Socket IP68 Waterproof Connector Plastic Plug SocketCNLINKO YM20 Plastic Waterproof 14 Pin Male Female Plug Socket IP68 Waterproof Connector Plastic Plug SocketCNLINKO YM20 Plastic Waterproof 14 Pin Male Female Plug Socket IP68 Waterproof Connector Plastic Plug SocketCNLINKO YM20 Plastic Waterproof 14 Pin Male Female Plug Socket IP68 Waterproof Connector Plastic Plug SocketCNLINKO YM20 Plastic Waterproof 14 Pin Male Female Plug Socket IP68 Waterproof Connector Plastic Plug SocketCNLINKO YM20 Plastic Waterproof 14 Pin Male Female Plug Socket IP68 Waterproof Connector Plastic Plug SocketCNLINKO YM20 Plastic Waterproof 14 Pin Male Female Plug Socket IP68 Waterproof Connector Plastic Plug SocketCNLINKO YM20 Plastic Waterproof 14 Pin Male Female Plug Socket IP68 Waterproof Connector Plastic Plug SocketCNLINKO YM20 Plastic Waterproof 14 Pin Male Female Plug Socket IP68 Waterproof Connector Plastic Plug SocketCNLINKO YM20 Plastic Waterproof 14 Pin Male Female Plug Socket IP68 Waterproof Connector Plastic Plug SocketCNLINKO YM20 Plastic Waterproof 14 Pin Male Female Plug Socket IP68 Waterproof Connector Plastic Plug SocketCNLINKO YM20 Plastic Waterproof 14 Pin Male Female Plug Socket IP68 Waterproof Connector Plastic Plug SocketCNLINKO YM20 Plastic Waterproof 14 Pin Male Female Plug Socket IP68 Waterproof Connector Plastic Plug SocketCNLINKO YM20 Plastic Waterproof 14 Pin Male Female Plug Socket IP68 Waterproof Connector Plastic Plug Socket

Specifications
YM-20-C12PE-01-001,YM-20-J12SX-01-001
Connecting mode Latching Lock connect
Protection level IP67
Cable specification 0.15mm2 ~ 0.2mm2 /26~24AWG
Diameter range Φ5.5mm ~Φ7mm
Contact diameter×Qty Φ1.0×12
Current rating(A) 5A
Operating voltage(AC.V.rms) 400V
Withstand voltage(AC.V)1min 2500V
Contact resistance <5mΩ
Insulation resistance >500MΩ
Durability ≥500 mating&unmating cycles
Temperature rating -40°C~80°C
Method of connecting cable Solder
Prevent the combustion level UL94-V0
Material
Shell&insulated parts High performance engineering plastics
Hardware metal Zinc alloy(pearl hard chromium)
Contact pin Copper alloy(gold-plated)
Spring Stainless steel
Sealing Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance
1/4 bayonet connect; socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery
Certifications
