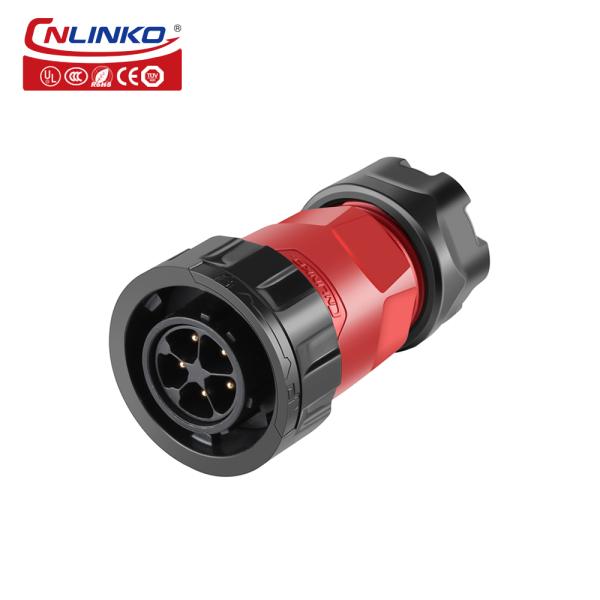

Cnlinko Electrical Connectors 220v Waterproof Male Cable 5 Pin DC Connector Power Plug Socket Power Adapter Cable
Cnlinko Electrical Connectors 220v Waterproof Male Cable 5 Pin DC Connector Power Plug Socket Power Adapter Cable
Cnlinko Electrical Connectors 220v Waterproof Male Cable 5 Pin DC Connector Power Plug Socket Power Adapter Cable
Cnlinko Electrical Connectors 220v Waterproof Male Cable 5 Pin DC Connector Power Plug Socket Power Adapter Cable
Cnlinko Electrical Connectors 220v Waterproof Male Cable 5 Pin DC Connector Power Plug Socket Power Adapter Cable
Cnlinko Electrical Connectors 220v Waterproof Male Cable 5 Pin DC Connector Power Plug Socket Power Adapter Cable
Cnlinko Electrical Connectors 220v Waterproof Male Cable 5 Pin DC Connector Power Plug Socket Power Adapter Cable
Cnlinko Electrical Connectors 220v Waterproof Male Cable 5 Pin DC Connector Power Plug Socket Power Adapter Cable
Cnlinko Electrical Connectors 220v Waterproof Male Cable 5 Pin DC Connector Power Plug Socket Power Adapter Cable
Cnlinko Electrical Connectors 220v Waterproof Male Cable 5 Pin DC Connector Power Plug Socket Power Adapter Cable
Cnlinko Electrical Connectors 220v Waterproof Male Cable 5 Pin DC Connector Power Plug Socket Power Adapter Cable
Cnlinko Electrical Connectors 220v Waterproof Male Cable 5 Pin DC Connector Power Plug Socket Power Adapter Cable
Specifications
Place of Origin :
Guangdong, China
Brand Name :
CNLINKO
Model Number :
YM-20-J05PE-02-001
Certification :
UL,CE,ROHS,CCC,ISO9001
MOQ :
2
Price :
$3.84-4.48
Type :
Signal
Application :
Audio & Video, LED Display Screen, Audio-visual equipment...
Gender :
Male
Shell & Insulated Parts :
High Performance Engineer Plastic
Protection level :
IP68
Current rating(A) :
10A
Hardware Matel :
Zinc Alloy (pearl hard chromium)
Connecting mode :
1/4 bayonet connect
Operating voltage :
500V
Product name :
Electrical Connectors for 220v
Cable Specification :
18-16AWG
Description

Product Description

Cnlinko Electrical Connectors 220v Waterproof Male Cable 5 Pin DC Connector Power Plug Socket Power Adapter CableCnlinko Electrical Connectors 220v Waterproof Male Cable 5 Pin DC Connector Power Plug Socket Power Adapter CableCnlinko Electrical Connectors 220v Waterproof Male Cable 5 Pin DC Connector Power Plug Socket Power Adapter CableCnlinko Electrical Connectors 220v Waterproof Male Cable 5 Pin DC Connector Power Plug Socket Power Adapter CableCnlinko Electrical Connectors 220v Waterproof Male Cable 5 Pin DC Connector Power Plug Socket Power Adapter CableCnlinko Electrical Connectors 220v Waterproof Male Cable 5 Pin DC Connector Power Plug Socket Power Adapter CableCnlinko Electrical Connectors 220v Waterproof Male Cable 5 Pin DC Connector Power Plug Socket Power Adapter CableCnlinko Electrical Connectors 220v Waterproof Male Cable 5 Pin DC Connector Power Plug Socket Power Adapter CableCnlinko Electrical Connectors 220v Waterproof Male Cable 5 Pin DC Connector Power Plug Socket Power Adapter CableCnlinko Electrical Connectors 220v Waterproof Male Cable 5 Pin DC Connector Power Plug Socket Power Adapter CableCnlinko Electrical Connectors 220v Waterproof Male Cable 5 Pin DC Connector Power Plug Socket Power Adapter CableCnlinko Electrical Connectors 220v Waterproof Male Cable 5 Pin DC Connector Power Plug Socket Power Adapter CableCnlinko Electrical Connectors 220v Waterproof Male Cable 5 Pin DC Connector Power Plug Socket Power Adapter CableCnlinko Electrical Connectors 220v Waterproof Male Cable 5 Pin DC Connector Power Plug Socket Power Adapter Cable

Specifications
Specifications
Connecting mode Latching Lock connect
Protection level IP65/IP67
Cable specification 1.0mm2 ~ 1.5mm2 /18~16AWG
Diameter range Φ7mm ~Φ10mm
Contact diameter×Qty Φ1.8×5
Current rating(A) 10A
Temperature rise

20A contact temperature below 30℃

25A contact temperature below 40℃

30A contact temperature below 50℃
Operating voltage(AC.V.rms) 250V
Withstanding voltage(AC.V)1min 2500V
Contact resistance <1mΩ
Insulation resistance >500MΩ
Durability ≥500 mating&unmating cycles
Temperature rating -40°C~80°C
Method of connecting cable Soldering
Prevent the combustion level UL94-V0
Material
shell & Insulated parts High performance engineering plastics
Hardware metal Zinc alloy(pearl hard chromium)
Contact pin Copper alloy(gold-plated 4U)
Spring Stainless steel
Sealing Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance
1/4 bayonet connect; socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery
Certifications
