Specifications
Place of Origin :
Guangdong, China
Brand Name :
cnlinko
Model Number :
LP-24-USB3.0-P01
Certification :
CUL,UL,CE,ROHS,CCC,ISO9001
MOQ :
2
Price :
US$9.29-10.29
Type :
usb
Application :
Data
Gender :
male and female
Produce type :
USB connector
Current rating(A) :
/
Protection level :
IP67
Shell & Insulated Parts :
High Performance Engineer Plastic
Hardware Matel :
Zinc Alloy (pearl hard chromium)
Connecting mode :
Quickly insert and pull out
Assembly :
Solder
Contact pin :
Copper alloy(gold-plated)
Item :
usb mount cable panel ip67
Description

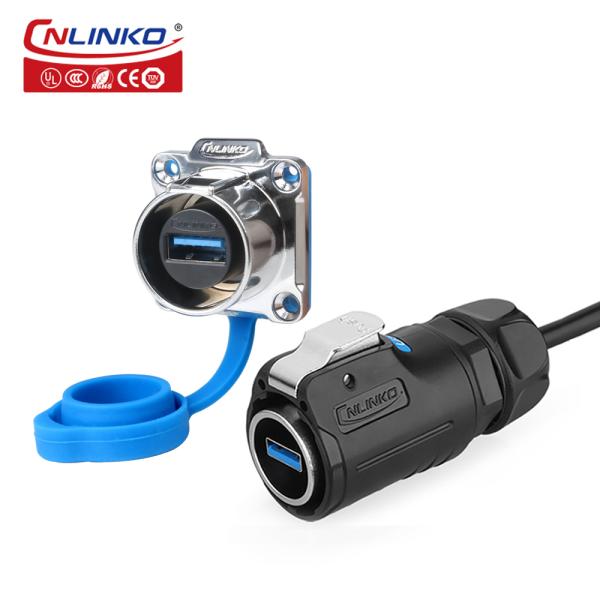

CNLINKO M24 waterproof Usb3.0 Adapter Panel Mount Cable Connector Dip USB Plug connector

Product Description

LP-24 Series of products, containing RJ45, USB, power, fiber optics and other models with hole size 24MM to meet different needs of industry, and we use Zinc alloy with nickel-plated to guarantee quality and apply with International environment protection of Industrial equipment as well.
LP-24 series with multi-industry extension, USB, telecommunications, signal, fiber optic, HDMI-compatible, etc., and customized specialty, pin series, such as: 3pin, power+9pin, signal......

1: USB3.0 fully be compatible with USB2.0

2: Using Zinc alloy shell materials, high frequency noise immunity and electromagnetic interference protection

3: With soft and extension silica gel grommet design to protect the cable well

4: waterproof level: IP65/IP67

5: With 1M cable and easy operating

6: Please contact with sales if any special request

CNLINKO M24 Connectors Cables Waterproof Adapter Panel Mount Cable Connector Dip Waterproof Usb 3.0 Connectors

CNLINKO M24 Connectors Cables Waterproof Adapter Panel Mount Cable Connector Dip Waterproof Usb 3.0 ConnectorsCNLINKO M24 Connectors Cables Waterproof Adapter Panel Mount Cable Connector Dip Waterproof Usb 3.0 ConnectorsCNLINKO M24 Connectors Cables Waterproof Adapter Panel Mount Cable Connector Dip Waterproof Usb 3.0 ConnectorsCNLINKO M24 Connectors Cables Waterproof Adapter Panel Mount Cable Connector Dip Waterproof Usb 3.0 ConnectorsCNLINKO M24 Connectors Cables Waterproof Adapter Panel Mount Cable Connector Dip Waterproof Usb 3.0 Connectors

CNLINKO M24 Connectors Cables Waterproof Adapter Panel Mount Cable Connector Dip Waterproof Usb 3.0 ConnectorsCNLINKO M24 Connectors Cables Waterproof Adapter Panel Mount Cable Connector Dip Waterproof Usb 3.0 ConnectorsCNLINKO M24 Connectors Cables Waterproof Adapter Panel Mount Cable Connector Dip Waterproof Usb 3.0 Connectors

Specifications
Specifications
Connecting mode Latching Lock connect
Protection level IP67
Cable specification 26~24AWG
Diameter range Φ5mm ~Φ6.5mm
Contact diameter×Qty 9PIN (3.0)
Current rating(A) /
Operating voltage(AC.V.rms) /
Withstand voltage(AC.V)1min 1000V
Contact resistance <30mΩ
Insulation resistance >500MΩ
Durability ≥500 mating&unmating cycles
Temperature rating -40°C~80°C
Method of connecting cable Solder
Prevent the combustion level UL94-V0
Material
Shell&insulated parts High performance engineering plastics
Hardware metal Zinc alloy(pearl hard chromium)
Contact pin Copper alloy(gold-plated)
Spring Stainless steel
Sealing Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance
1/4 bayonet connect; socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery
Certifications
