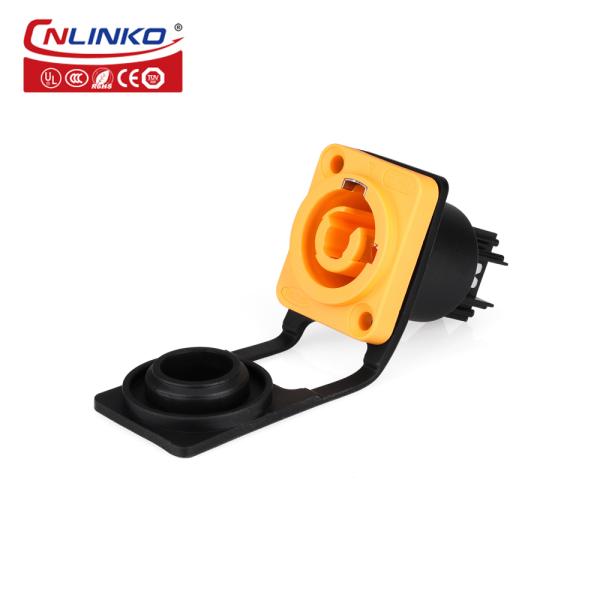

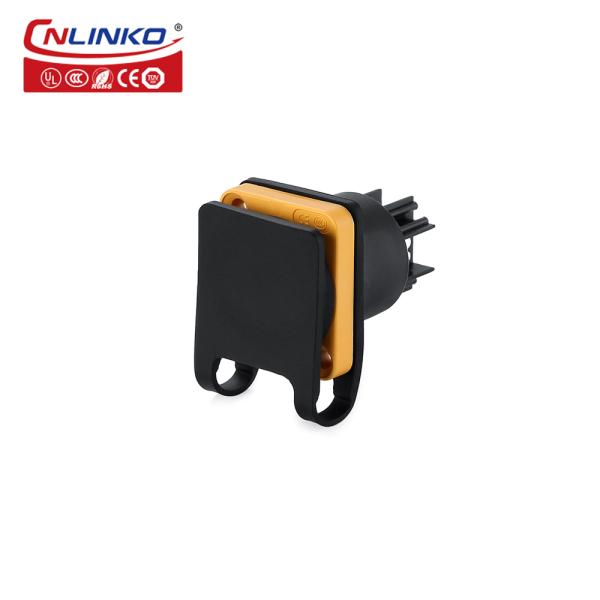

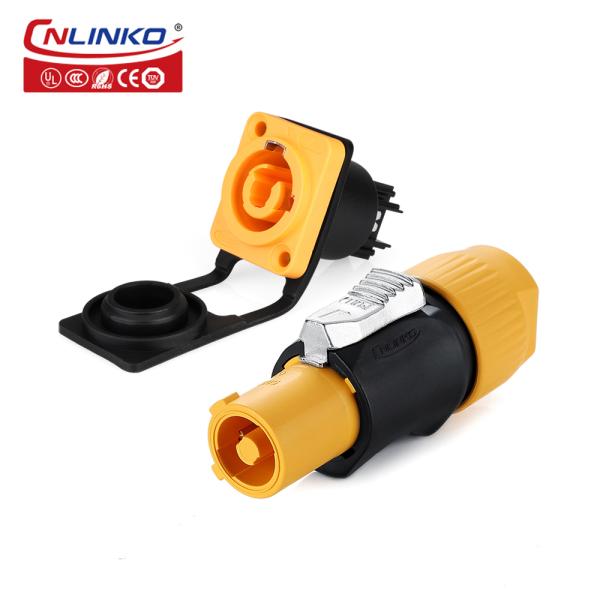

Cnlinko PowerCon 20A AC Cable 3 Pin Power Connector Waterproof for Led Display
Cnlinko PowerCon 20A AC Cable 3 Pin Power Connector Waterproof for Led Display
Cnlinko PowerCon 20A AC Cable 3 Pin Power Connector Waterproof for Led Display
Cnlinko PowerCon 20A AC Cable 3 Pin Power Connector Waterproof for Led Display
Cnlinko PowerCon 20A AC Cable 3 Pin Power Connector Waterproof for Led Display
Cnlinko PowerCon 20A AC Cable 3 Pin Power Connector Waterproof for Led Display
Cnlinko PowerCon 20A AC Cable 3 Pin Power Connector Waterproof for Led Display
Cnlinko PowerCon 20A AC Cable 3 Pin Power Connector Waterproof for Led Display
Cnlinko PowerCon 20A AC Cable 3 Pin Power Connector Waterproof for Led Display
Cnlinko PowerCon 20A AC Cable 3 Pin Power Connector Waterproof for Led Display
Cnlinko PowerCon 20A AC Cable 3 Pin Power Connector Waterproof for Led Display
Cnlinko PowerCon 20A AC Cable 3 Pin Power Connector Waterproof for Led Display
Specifications
Place of Origin :
Guangdong, China
Brand Name :
CNLINKO
Model Number :
YF-24-CO3SX-02-002&YF-24-JO3PE-02-002
Certification :
CE,CCC,ROHS,IP65,ISO9001
MOQ :
10
Price :
US$4.58-5.34
Type :
XLR
Application :
Audio & Video
Gender :
Male
Waterproof level :
IP65
Connecting type :
easy and fast locking
Rated current :
20A
Operating voltage :
500V
Durability :
>500 times
Working temperature :
-40°C~80°C
Flammability rating :
UL94-V0
Protection level :
IP44/IP65
Description

Cnlinko PowerCon 20A AC Cable 3 pin Power Connector Waterproof for led display

Product Description

Cnlinko PowerCon 20A AC Cable 3 Pin Power Connector Waterproof for Led DisplayCnlinko PowerCon 20A AC Cable 3 Pin Power Connector Waterproof for Led DisplayCnlinko PowerCon 20A AC Cable 3 Pin Power Connector Waterproof for Led DisplayCnlinko PowerCon 20A AC Cable 3 Pin Power Connector Waterproof for Led DisplayCnlinko PowerCon 20A AC Cable 3 Pin Power Connector Waterproof for Led DisplayCnlinko PowerCon 20A AC Cable 3 Pin Power Connector Waterproof for Led DisplayCnlinko PowerCon 20A AC Cable 3 Pin Power Connector Waterproof for Led DisplayCnlinko PowerCon 20A AC Cable 3 Pin Power Connector Waterproof for Led DisplayCnlinko PowerCon 20A AC Cable 3 Pin Power Connector Waterproof for Led Display

Specifications
Specifications
Connecting mode Latching Lock connect
Protection level IP44/IP65
Cable specification 2.5mm2 ~ 4mm2 /14~12AWG
Diameter range Φ8mm ~Φ12mm
Contact diameter×Qty Φ2.0×3
Current rating(A) 20A
Operating voltage(AC.V.rms) 500V
Withstand voltage(AC.V)1min 2500V
Contact resistance <1mΩ
Insulation resistance >500MΩ
Durability ≥500 mating&unmating cycles
Temperature rating -40°C~80°C
Method of connecting cable Solder
Prevent the combustion level UL94-V0
Material
Shell&insulated parts High performance engineering plastics
Hardware metal Zinc alloy(pearl hard chromium)
Contact pin Copper alloy(gold-plated)
Spring Stainless steel
Sealing Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance
1/4 bayonet connect; socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery
