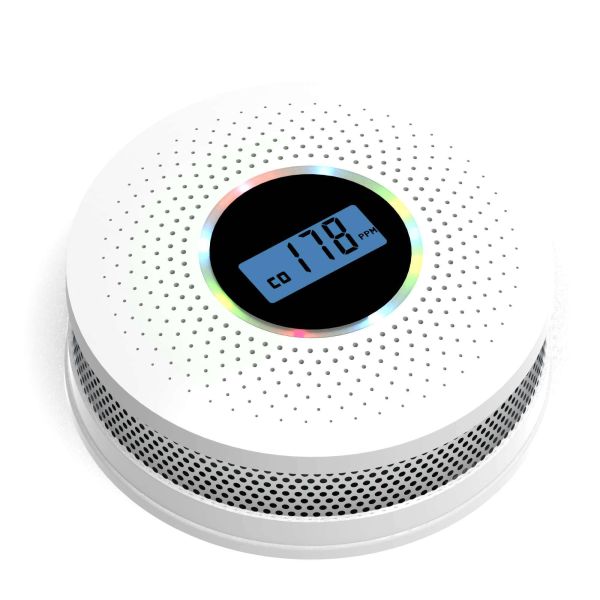

Photoelectric Smoke Carbon Monoxide Detectors Custom Home CO Detector With 5 Year Life Lcd Display
Photoelectric Smoke Carbon Monoxide Detectors Custom Home CO Detector With 5 Year Life Lcd Display
Specifications
Brand Name :
Symank
Model Number :
JKD-512COM
Certification :
CE/ROHS/UKCA
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
50K/Month
Delivery Time :
5 days
Packaging Details :
Color box,size:110×55×110mm,60pcs in one carton,carton size:61x30x28cm
Item :
Smoke Carbon Monoxide Detectors
Size :
Diameter 104 mm, Height 40 mm
Power Source :
Battery Operated
Reset Time :
less than 1 second
Detection Type :
Photoelectric
Sensitivity :
Meets EN14604&EN50291 standards
Operating Temperature Range :
-10°C to 50°C
Warranty :
2 years
Usage :
Fire smoke detection and alarm
Humidity Range :
10% to 90% non-condensing
Installation Type :
Ceiling or wall mount
Material :
ABS fireproof
Alarm Sound Level :
85 dB at 10 feet
Description
Custom Smoke Carbon Monoxide Detector with 5-Year Life LCD Display and Photoelectric Detection for Fire Safety
Product Overview
These dual-hazard detectors provide a scalable safety solution for distributors requiring standardized compliance and consistent quality. Combining infrared optical smoke recognition with advanced electrochemical CO sensors, they deliver reliable protection against both fire and carbon monoxide threats.
Certification Compliance: Meets European standards EN 14604:2005/AC2008 and EN 50291-1:2018 +AC:2021-01
Ideal for apartment developers and hospitality operators, these detectors offer low-maintenance safety with long-life circuitry powered by three alkaline batteries lasting up to five years. The integrated LCD display provides intuitive readings for maintenance staff, training programs, and tenant safety inspections. Each unit effectively covers living areas and corridors up to 40 square meters, enabling enhanced safety compliance without extensive infrastructure modifications.
Product Advantages
  • Triple LED Status Indicators: Three visual LED indicators for clear status monitoring
  • Advanced Dual-Sensor Technology: Intelligent cross-analysis between smoke density and gas concentration minimizes nuisance alarms
  • High-Performance Audible Alert: Strong 85dB+ alarm audible at 3 meters distance
  • Energy Efficient Operation: Ultra-low standby current (<18μA) with alarm output under 50mA for extended battery life
  • Durable Construction: ABS housing with anti-UV coating resists yellowing and cracking across temperature ranges from -10°C to +50°C
  • Lightweight Design: Facilitates rapid installation during commercial rollouts
Manufacturing Capabilities
Our ISO-aligned OEM facility produces detectors with full traceability across PCBA lots, sensor batches, and acoustic components. We offer comprehensive ODM development services including:
  • Custom housing design and shape remodeling
  • LCD icon customization and firmware alert tuning
  • Packaging localization and private label options
Quality assurance includes automatic functional testing, sound pressure verification, and power-consumption testing to ensure batch uniformity. Our logistics team manages mixed container loading, drop-ship operations, and e-commerce fulfillment. After-sales support encompasses technical documentation updates, certification transfer assistance, and warranty tracking dashboards for brand partners.
Technical Specifications
Power Source 3* AA alkaline batteries
Operating Current Standby <18μA
Alarm Level ≥86 dB @ 3m
Working Temperature -10℃ ~ +50℃
Housing Material ABS with anti-UV coating
Sensor Technology Electrochemical CO + Infrared optical smoke
Coverage Area ≤40 m² per unit
Dimensions 104 * 39 mm
