Specifications
Brand Name :
EGQ
Model Number :
T2QZ1
Certification :
CE,FCC,ROHS,IATF16949:2016
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
10000 sets per month
Delivery Time :
7-15 work days
Packaging Details :
boxs
Plastic parts material :
Nylon + glass fiber
Dimensions :
13.5cm(length)*6.5cm(width)*2.2cm
Interface voltage :
Vehicle battery 24V, ACC24V
System function :
Reduce vehicle tire damage and extend the service life of tires
Bright working current :
12mA
Warranty :
12 Months
Description

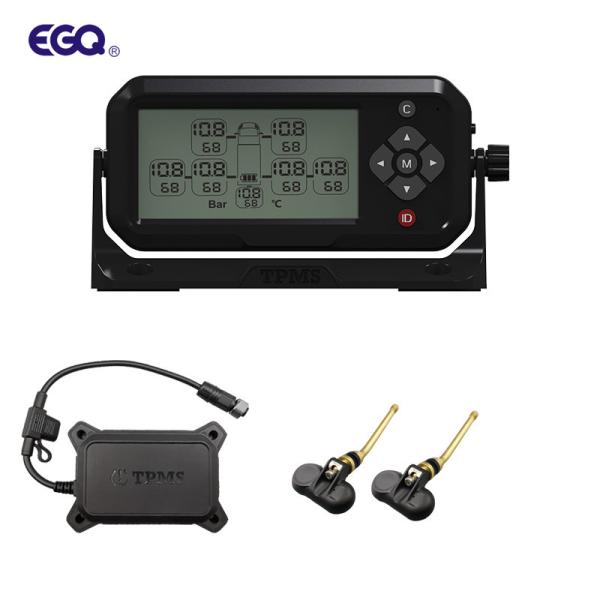

TPMS RV Tire Pressure Monitoring System

Description:

It is built-in and external sensor, convenient and safe, easy to operate, multi-functional, designed for large vehicles, trucks, buses and other vehicles with more than 4 tyres. It can support up to 36 tyres at the same time. The product has 6 sensors.

Product parameters:

Colour: Black

Function: Abnormal tire pressure alarm

Abnormal tire temperature alarm

Air leakage alarm

Reduce tire wear

Fuel economy

Wireless transmission

USB power supply

Product parameters

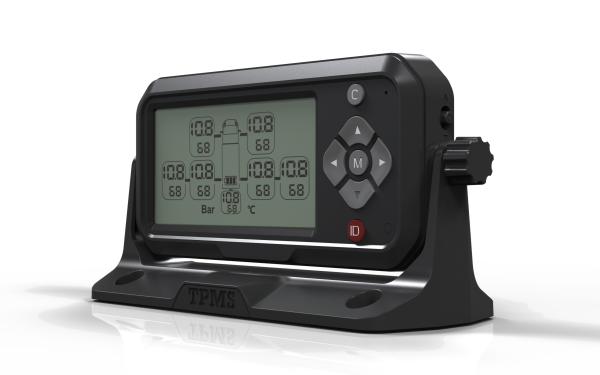

Receiver(7 Wheels)
Display interface LCD segment code (7 rounds with the same display)
Receiver port Vehicle battery, ACC input and RS232 output
Machine weight (excluding packaging) 230g±5g
Abnormal self-recovery Toggle Switches(The switch is facing up, restart after disconnecting the external power supply.)
Working temperature -30-80℃
Power supply mode internal rechargeable lithium battery and external power supply
Interface voltage Vehicle battery 24V, ACC24V
Built-in battery voltage 3.5-4.2V
Bright working current 12mA
Black working current (for data communication) 4.5mA
Reception sensitivity -95dbm
Dimensions 13.5cm(length)*6.5cm(width)*2.2cm(height)
Warranty 12 Months

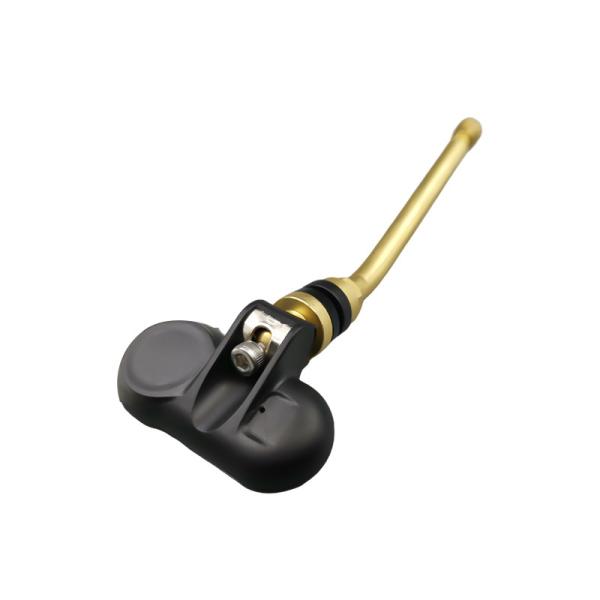

Sensor(Ordinary internal type sensor)
Plastic parts material Nylon + glass fiber
Shell temperature resistance -50℃-150℃
Antenna sheet material Phosphorus copper nickel plating
Machine weight (excluding valve) 16g±1g
Power supply mode Button Battery
battery model CR2050
battery capacity 345mAh
Working voltage 2.1V-3.6V
working temperature 8.7mA
Self-test current 2.2mA
Dormant current 0.5uA
Working temperature -40℃-125℃
Transmit frequency 433.92MHZ
Transmit power >-12dBm
Dimensions 5.3cm(length)*3.5cm(width)*1.4cm(height)(excluding valve)
Warranty 12 Months

System function

Reduce fuel consumption of vehicles, reduce the cost of use of vehicles;

Maintain the normal braking effect and reduce the occurrence of safety accidents;

Esteemed customer:

Thank you for buying our Tire pressure Monitoring System (TPMS). This system makes you more safety when driving.It can real-time monitor tire pressure and temperature conditions.If detected any abnormal pressure and temperature of tires, the system will transmit real-time voice alarm and flash warning icon to remind the driver.

FAQ:

1. Q: Are you a factory or trading company?

A:We are a factory in shenzhen and have many branch offices in our Nation.

2. Q: Can I get some samples?

A: We are pleased to offer you samples.

3. Q: How about your quality control?

A: Our company has gained CE, FCC and RoHS authentication.

4. Q: What is your after-sale service?

A: We offer free spare parts within warranty period.

5. Q: What is your MOQ?

A: Any quantity is acceptable for your order. And the price is negotiable for large quantity.

6. Q: When will you make the delivery?

A: We can make the delivery within 3-15 working days according to the size of your order.
