Specifications
Brand Name :
AISON
Model Number :
Z050WV20-CT
Certification :
ISO9001 / ISO14000/ROHS
Place of Origin :
Guangdong,China
MOQ :
1
Price :
10~25usd/p
Payment Terms :
T/T
Supply Ability :
200k/month
Delivery Time :
7 working days
Packaging Details :
Blister Package/Carton
Name :
5 inch IPS TFT Display
Resolution :
800x480
Module Size :
120.7*76.3*5mm
Active area :
108 x 64.80 mm
Interface Type :
RGB
Luminance :
350 cd/m2
Display mode :
Normally Black
View Direction :
ALL/IPS
Operating temperatures :
-20 to 70 degree
Description

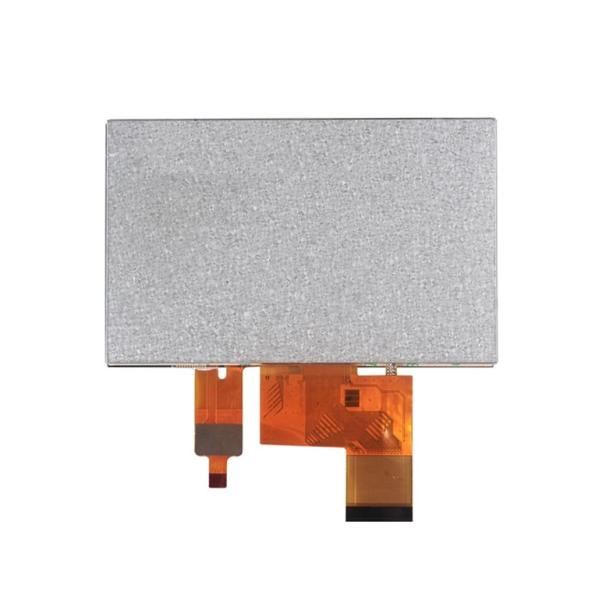

5 Inch IPS TFT LCD Display 800x480 TFT Capacitive Touch Screen

Display General Description
Introducing the Z050WV20-CT, a 5-inch TFT LCD module designed for exceptional performance and versatility. This module features a resolution of 800 × 480 pixels with a 16:9 aspect ratio, delivering a wide and immersive viewing experience. Equipped with a projected capacitive touch screen and IPS display technology, it offers a viewing angle of 85 degrees in all directions, ensuring clarity from every angle. The module is powered by a built-in ST7265 driver IC and supports a 24-bit RGB interface for vibrant and accurate color reproduction.

Measuring 120.7 × 76.3 mm, the module features an active display area of 108 × 64.8 mm, providing ample space for content display. The touch functionality is enhanced by a projected capacitive touch panel (PCAP) with a GT911 driver IC, supporting I2C interfaces and 5-point touch capability for precise interaction. The power supply voltage ranges from 3.1V to 3.6V, with a typical operating voltage of 3.3V, ensuring efficient and reliable performance.

Designed for robust operation, this module is capable of functioning within a wide temperature range of -30℃ to +80℃, with storage temperatures as low as -35℃ and as high as +85℃, making it suitable for diverse environments. It features a contrast ratio of 1,000:1 (typical) and a brightness of 350 nits (typical), delivering crisp and vivid visuals under various lighting conditions.

General Data

Product Name 5 Inch Capacitive Touch IPS TFT LCD Module
Number of Pixel 800x480
Interface RGB 24bit
Luminance(cd/m2) 350cd/m2
Active area
120.7*76.3*5mm
LCM (W x H x D)
108x64.8 mm
Viewing Direction(eye) IPS/ALL
Operating temperatures -30 to 80 degree
Storage temperatures -35 to 85 degree

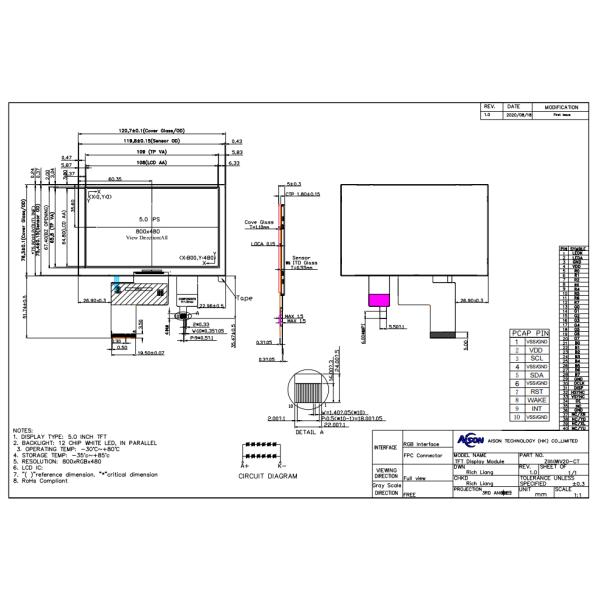

Drawing
5 Inch IPS TFT LCD Display 800x480 TFT Capacitive Touch Screen

Product Details

5 Inch IPS TFT LCD Display 800x480 TFT Capacitive Touch Screen5 Inch IPS TFT LCD Display 800x480 TFT Capacitive Touch Screen

TFT Applications

The 5 inch display module is suitable for use in control panels for white goods, industrial control systems, audio equipment, and home security systems.

5 Inch IPS TFT LCD Display 800x480 TFT Capacitive Touch Screen
