4.3 Inch TFT Resistive Touch Screen 350 cd/m2 Color TFT Screen 480X272 With RGB Interface
4.3 Inch TFT Resistive Touch Screen 350 cd/m2 Color TFT Screen 480X272 With RGB Interface
4.3 Inch TFT Resistive Touch Screen 350 cd/m2 Color TFT Screen 480X272 With RGB Interface
4.3 Inch TFT Resistive Touch Screen 350 cd/m2 Color TFT Screen 480X272 With RGB Interface
4.3 Inch TFT Resistive Touch Screen 350 cd/m2 Color TFT Screen 480X272 With RGB Interface
4.3 Inch TFT Resistive Touch Screen 350 cd/m2 Color TFT Screen 480X272 With RGB Interface
Specifications
Brand Name :
AISON
Model Number :
Z043WQ19-T
Certification :
ISO9001 / ISO14000/ROHS
Place of Origin :
Guangdong,China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram,Paypal
Supply Ability :
300k/month
Delivery Time :
7 working days
Packaging Details :
Blister Package/Carton
Item :
4.3'' TFT Resistive Touch Screen
Resolution :
480x272
Module Size :
105.5*67.2*4.2mm
Active area :
95.04 x 53.856mm
Interface Type :
24 bit RGB
Driver Controller :
ST7282
Luminance :
350 cd/m2
Display Type :
TFT,Normally White
Operating temperatures :
-20 to 70 degree
Storage temperatures :
-30 to 80 degree
Touch Panel :
RTP
Description

4.3 Inch TFT Resistive Touch Screen 350 cd/m2 Color TFT Screen 480X272 With RGB Interface

General Description

The Z043WQ19-T TFT LCD module is a 4.3-inch diagonal display with a resistive touch panel (RTP) and a resolution of 480x272 pixels, offering vibrant full-color output. With outline dimensions of 105.5 x 67.2 mm and an active area of 95.04 x 53.86 mm, it provides ample screen real estate for various applications. This module is built with the ST7282 IC and supports a 24-bit RGB interface.


Boasting a 16:9 aspect ratio, the module delivers a visually pleasing experience for users, with a brightness of 350 nits and a contrast ratio of 500:1. Operating at supply voltages ranging from 3.0V to 3.5V, with a typical value of 3.3V, it offers efficient power management.

Designed to perform in diverse environments, this module can operate within temperatures ranging from -20℃ to +70℃, with storage capabilities spanning from -30℃ to +80℃. Its versatility makes it an excellent choice for portable electronic devices, automotive entertainment systems, household electronics, industrial equipment and instrumentation, safety systems, and more.

For further inquiries about our AISON hot sale 4.3" TFT Display, please don't hesitate to contact us online.

General Data

Model Name 4.3 inch Resistive Touch Panel
Resolution 480x272
Model Size (W*H*T) 105.5*67.2*4.2mm
Display Area (W*H) 95.04 x 53.856mm
Interface 24 Bit RGB
Display Mode Normally White,Transmissive
Viewing 12 o'clock
Brightness 350 cd/m2
Pin number 40
Drive IC ST7282
Touch Resistive Touch Panel
Operating temperatures -30 to 80 degree
Storage temperatures -30 to 80 degree

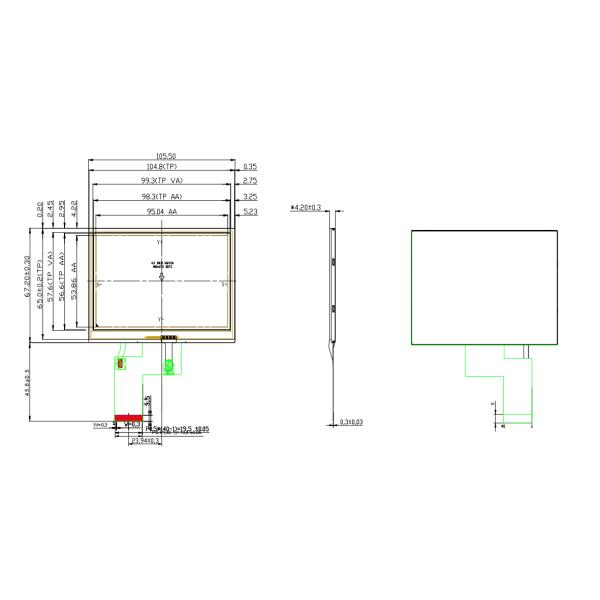

Drawing

4.3 Inch TFT Resistive Touch Screen 350 cd/m2 Color TFT Screen 480X272 With RGB Interface

Product Details

4.3 Inch TFT Resistive Touch Screen 350 cd/m2 Color TFT Screen 480X272 With RGB Interface4.3 Inch TFT Resistive Touch Screen 350 cd/m2 Color TFT Screen 480X272 With RGB Interface

TFT Applications

AISON TFT LCD Displays are suitable for various applications.This 4.3 inch 480x272 tft displays can used for portable electronic devices, automotive entertainment systems, household electronics, industrial equipment and instrumentation, safety systems, and more.

4.3 Inch TFT Resistive Touch Screen 350 cd/m2 Color TFT Screen 480X272 With RGB Interface
