7 Inch 800x480 TFT LCD Display 104.44 Width 500 cd/M2 -40 To 95 Degree for Automotive Application
7 Inch 800x480 TFT LCD Display 104.44 Width 500 cd/M2 -40 To 95 Degree for Automotive Application
7 Inch 800x480 TFT LCD Display 104.44 Width 500 cd/M2 -40 To 95 Degree for Automotive Application
7 Inch 800x480 TFT LCD Display 104.44 Width 500 cd/M2 -40 To 95 Degree for Automotive Application
7 Inch 800x480 TFT LCD Display 104.44 Width 500 cd/M2 -40 To 95 Degree for Automotive Application
7 Inch 800x480 TFT LCD Display 104.44 Width 500 cd/M2 -40 To 95 Degree for Automotive Application
Specifications
Brand Name :
AISON
Model Number :
Z070WV9309
Certification :
ISO9001 / ISO14000/ROHS
Place of Origin :
Guangdong,China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram,Paypal
Supply Ability :
200k/month
Delivery Time :
7 working days
Packaging Details :
Blister Package/Carton
Product Name :
7 inch Custom Made TFT Display
Number of pixels :
800X480
Dimensional outline :
165*104.44*5.2 mm
Active area :
152.4* 91.44 mm
Interface :
18-bit RGB
Viewing angle :
85/85/85/85
Brightness :
500cd/m2
View Direction :
IPS/ALL
Working temperatures :
-30 to 85 degree
Storage temperatures :
-40 to 95 degree
Description

7 Inch 800x480 TFT LCD Display 104.44 Width 500 cd/M2 -40 To 95 Degree for Automotive Application

General Description
The Z070WV9309 is a 7.0 inch diagonal a-Si TFT-LCD display panel product from Aison, with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -30 ~ 85°C , a storage temperature range of -40 ~ 95°C , and the maximal vibration level of 3.0G (29.4 m/s²). It's general features are summarized in the following: Wide Temperature, WLED Backlight, Life ≥ 50K hours, With LED Driver, U/D,L/R Reverse, 6/8 bit, Matte . Based on its features, recommend that this model be applied to Industrial, Automotive Display etc.

General Data

Model Name 7 inch Industrial TFT Display
Resolution 800x480
Model Size (W*H*T)
165*104.44*5.2 mm
Display Area (W*H) 152.4* 91.44 mm
Interface 18 Bit RGB
Display Mode Normally Black,Transmissive
Viewing IPS
Brightness 500 cd/m2
Pin number 40 pin
Driver IC SC7283
Operating temperatures -30 to 85 ℃
Storage temperatures -40 to 95 ℃

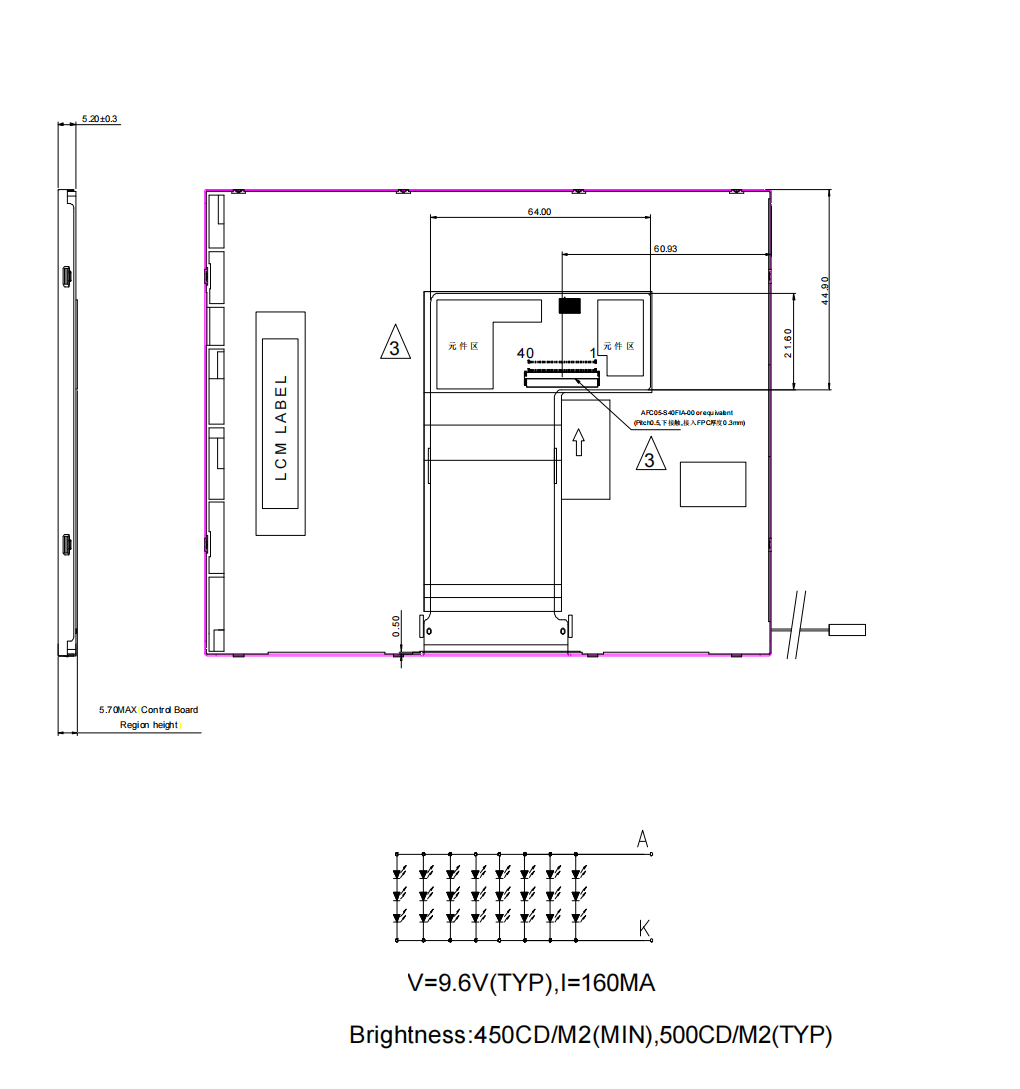

Drawing
7 Inch 800x480 TFT LCD Display 104.44 Width 500 cd/M2 -40 To 95 Degree for Automotive Application7 Inch 800x480 TFT LCD Display 104.44 Width 500 cd/M2 -40 To 95 Degree for Automotive Application

Product Details

TFT Applications

This 7 inch tft display features an operating temperature range of -30 ~ 85°C , a storage temperature range of -40 ~ 95°C ,Based on its features, recommend that this model be applied to Industrial, Automotive Display etc.

7 Inch 800x480 TFT LCD Display 104.44 Width 500 cd/M2 -40 To 95 Degree for Automotive Application
