Specifications
Brand Name :
AISON
Model Number :
RTD2281-V1.1K
Certification :
ISO9001 / ISO14000/ROHS
Place of Origin :
Guangdong,China
MOQ :
1
Price :
Negotiable based on quantity
Payment Terms :
T/T, Western Union, MoneyGram,Paypal
Supply Ability :
200k/month
Delivery Time :
7 working days for samples;3-4 weeks for mass production
Packaging Details :
Blister Package/Carton
Product Name :
5 Inch HDMI Raspberry Pi Display
Resolution :
800x480
Outline dimension :
164.9*122.96*13.2mm
Active area :
154.08x85.92mm
Interface Type :
HDMI&USB
Luminance :
400cd/m2
Display mode :
Normally Black
Working temperatures :
-20 to 70 degree
Storage temperatures :
-30 to 80 degree
Description

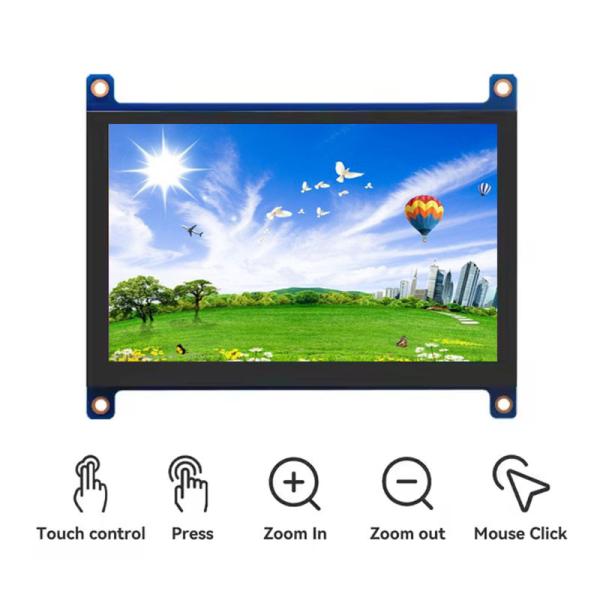

5 inch Raspberry Pi Display 2 3 4 B TFT LCD 800x480 Capacitive Touch Screen Module

General Description

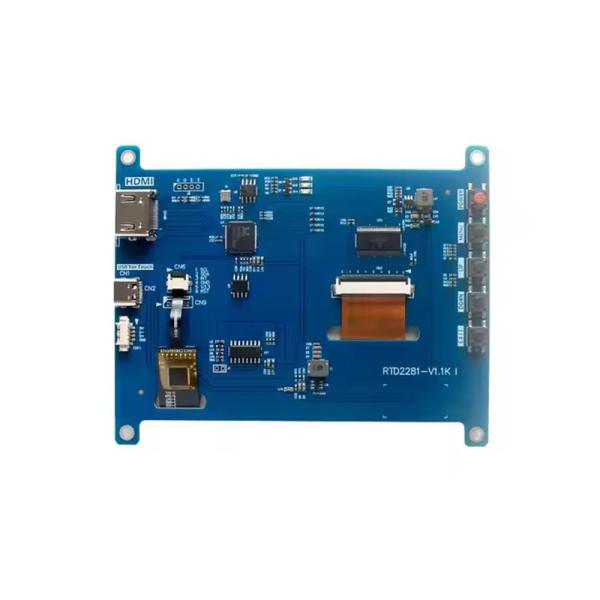

Product Description: RTD2281-V1.1K

Introducing the RTD2281-V1.1K - a 5.0-inch 800x480 IPS LCD display driver board with HDMI input support and capacitive touch panel functionality.

Features:

  • 5-inch standard display with 800x480 resolution
  • Capacitive touch screen supporting up to 5-point touch
  • Built-in OSD menu adjustment (Contrast, Brightness, Saturation, etc.)
  • Compatible with mainstream mini PCs (Raspberry Pi, BeagleBone Black, Banana Pi)
  • Versatile HDMI display for computers, set-top boxes, gaming consoles (Xbox 360, PS4, Nintendo Switch)
  • Raspberry Pi display supporting Raspbian, Ubuntu, Kodi, Win10 IoT, and single-touch operation
  • PC monitor supporting Win7, Win8, Win10 (5-point touch) and Win XP/older versions (single-point touch)
  • HDMI audio output capability

This compact and versatile display solution is perfect for both industrial and consumer applications.

General Spec

Model Name 5 inch Raspberry Pi Display
Resolution 800x480
Model Size (W*H*T)mm 120.7x98x12.4mm
Display Area (W*H)mm 108x64.8mm
Interface HDMI &USB
Display Mode Normally Black,Transmissive
Viewing All/IPS
Brightness 400 cd/m2
Pin 40
Touch Captouch
Application For Raspberry Pi
Operating temperatures -20 to 70 degree
Storage temperatures -30 to 80 degree

Drawing

5 Inch HDMI Raspberry Pi Display 800x480 Capacitive Touch Screen Module 400 Cd/M25 Inch HDMI Raspberry Pi Display 800x480 Capacitive Touch Screen Module 400 Cd/M2

Product Details

5 Inch HDMI Raspberry Pi Display 800x480 Capacitive Touch Screen Module 400 Cd/M25 Inch HDMI Raspberry Pi Display 800x480 Capacitive Touch Screen Module 400 Cd/M25 Inch HDMI Raspberry Pi Display 800x480 Capacitive Touch Screen Module 400 Cd/M25 Inch HDMI Raspberry Pi Display 800x480 Capacitive Touch Screen Module 400 Cd/M2

TFT Applications


IPS full viewing angle display○800X480 resolution, up to 178° full viewing angle panel
Use as a Raspberry Pi display
○Support Raspberry Pi back-to-back direct installation and locking
○Support mainstream development boards such as Raspberry Pi, Banana Pi, EAIDK, Jetson Nano, BB Black, etc.
○When used with Raspberry Pi, it supports mainstream systems such as Raspbian, Kali linux, ubuntu, etc., supports touch control,
plug-and-play driver-free.
Use as a mini PC monitor
○It can be used as a computer secondary screen display (Windows supports 5-point touch), and can be used with other Mini PC
monitors to display

5 Inch HDMI Raspberry Pi Display 800x480 Capacitive Touch Screen Module 400 Cd/M25 Inch HDMI Raspberry Pi Display 800x480 Capacitive Touch Screen Module 400 Cd/M25 Inch HDMI Raspberry Pi Display 800x480 Capacitive Touch Screen Module 400 Cd/M2
